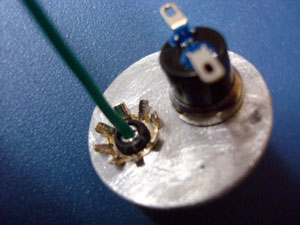

Sliced the 510 connector into tabs and then bent the tabs down for added strength. They will also be J-B welded.
The board ready to go in. I cut the Neg. circuit to the center, as you can see at the 3 o'clock position.
Staked the board into place in several spots around the tube. It will also be J-B Welded in.
The board J-B Welded into place.
Sliced the 510 connector into tabs and then bent the tabs down for added strength. They will also be J-B welded.
Almost ready to close it up.
LED
2mm green flat top LED. Mounted semi-flush.
SWC1969

Sliced the 510 connector into tabs and then bent the tabs down for added strength. They will also be J-B welded.
