Another excellent review for VOOPOO X217!!

Discussion in 'Voopoo' started by VOOPOO_Thea, Jan 18, 2019.

Image has been removed.
URL has been removed.
Email address has been removed.
Media has been removed.
  1. VOOPOO_Thea

    VOOPOO_Thea Brand Manager ECF Veteran

    Dec 1, 2016
    shenzhen,China

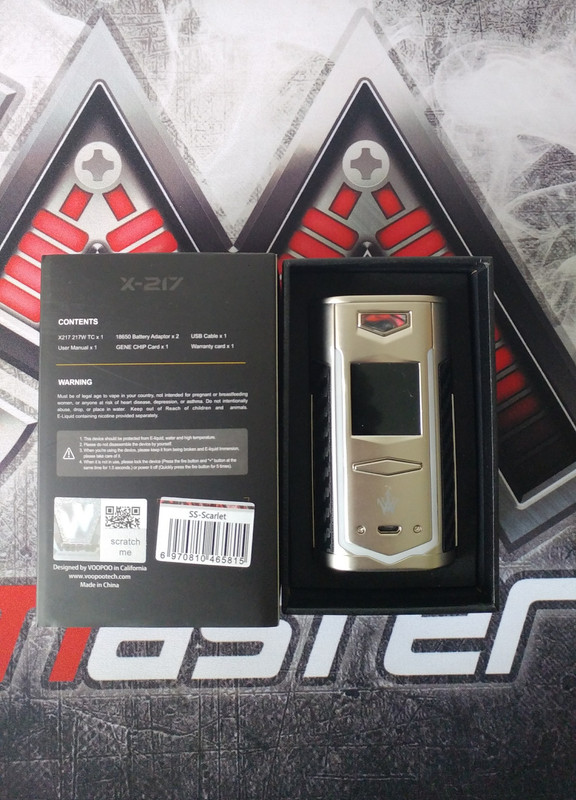

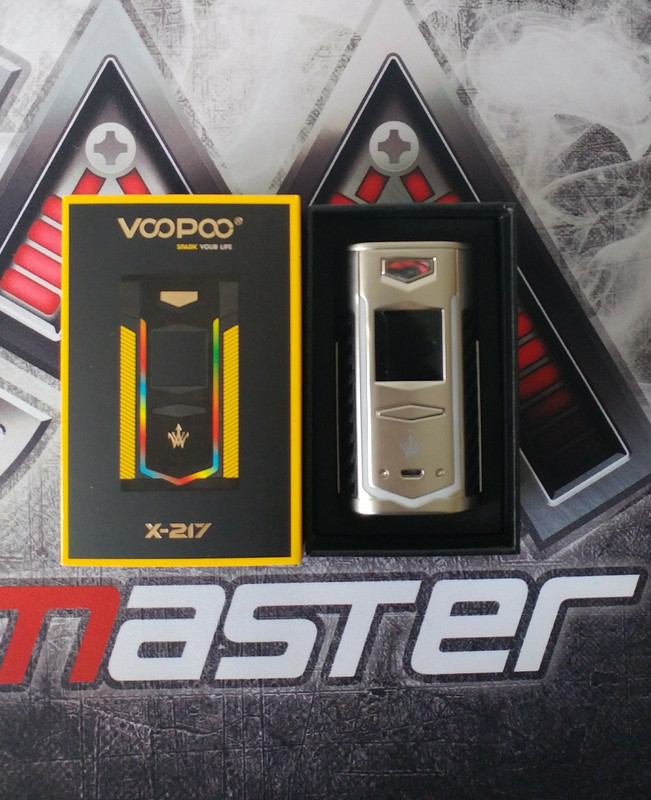

    Packaging in classic VooPoo style , on the front we have a stylized image of the product while on the back are the warnings, the CE marks / disposal, the warnings and the "scartch and check" for the originality of the product.

    [​IMG] [​IMG]

    Inside we have manuals and spare parts, in particular:
    • 1 * warranty card
    • 1 * user manual
    • 1 * Gene chip card
    • 1 * USB cable
    • 2 * 2 * 700 cell adapters
    [​IMG]

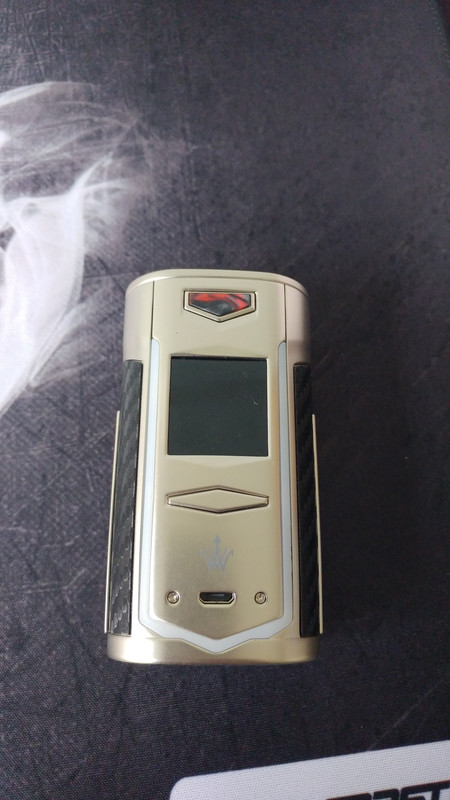

    We come to what are the main features of the product, the X-217 is a dual battery box designed and built to be used with 21700/20700 cells, and provides a maximum power of 217W. 18650 cells can also be used with the appropriate adapter .

    Dimensions and weight are quite imported, in fact it measures 33.5 * 52 * 92mm and weighs about 320 grams with the inserted cells. If on the one hand the dimensions can be a limit on the other they can give us great possibility of use, in fact, the box having a central cup allows us to use atom up to 33mm without bleeding.

    [​IMG] [​IMG]

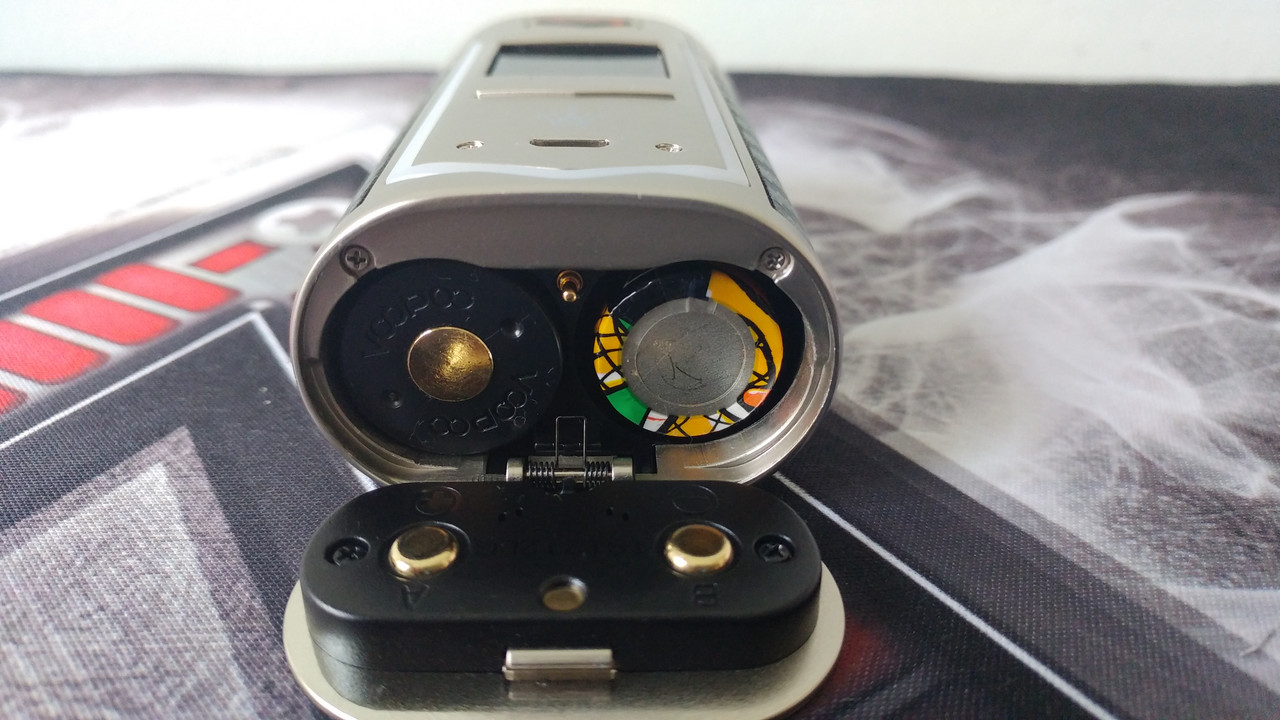

    In the lower part there is the spring battery compartment together with the vent holes, practically non-existent and not very effective in case of cell venting, it is not a big problem since we are protected from the circuit but we could certainly do better.

    [​IMG]

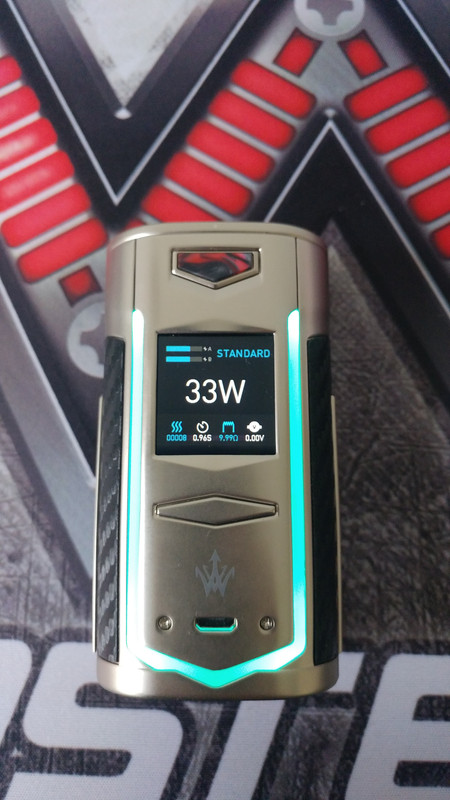

    Let's talk now about what is the highlight, the GENE Chip , a circuit designed and developed by VooPoo . Fortunately this time the circuit was more fluid and the navigation of the simplified menu.

    With 5 clicks the box is switched on / off, with 3 clicks you switch from one mode to another ( VW and TC ) and pressing "+ and -" together you enter the various sub-menus.

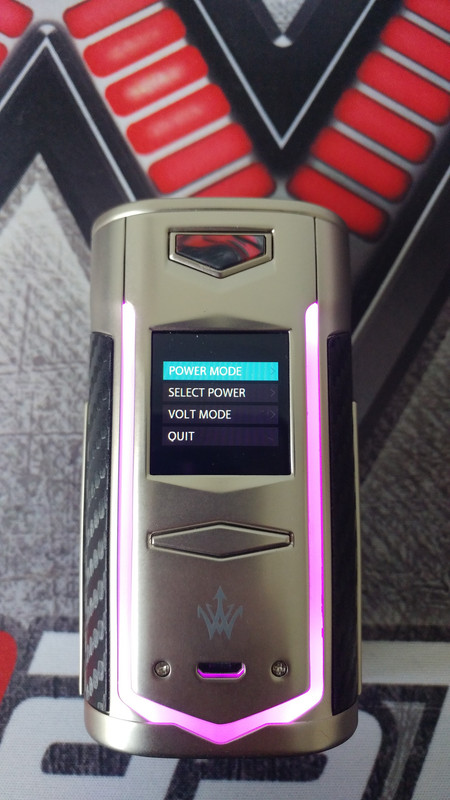

    Starting from the WV mode and entering the sub-menu we have:
    • Power Mode: choice between Standard, Pulse 1 and Pulse 2
    • Select Power: choice between M1 M2 M3 M4 M5; these are not memories but customizable delivery curves
    • Volt Mode: it will replace the Watts with the Volts
    [​IMG] [​IMG]
    Quoted from Andrea.Pelach
    Voopoo x217

    • Like Like x 1
