Basic run down on coiling/wicking Steam Crave RDTA for the Posse.

Discussion in 'Copper Creek' started by sessiondrummer, Aug 16, 2016.

Thread Status:
Not open for further replies.
Image has been removed.
URL has been removed.
Email address has been removed.
Media has been removed.
  1. sessiondrummer

    sessiondrummer Ultra Member Verified Member ECF Veteran

    Jan 22, 2011
    USA
    Basic coiling/wicking on the Steam Crave RDTA (6ml), with 24 ga. Kanthal wire, Koh Gen Do organic Japanese cotton. Dual vertical coils, 7 wraps, paralleled at .35 ohms. Nothing fancy just quick easy step by step. No fancy coiling here....

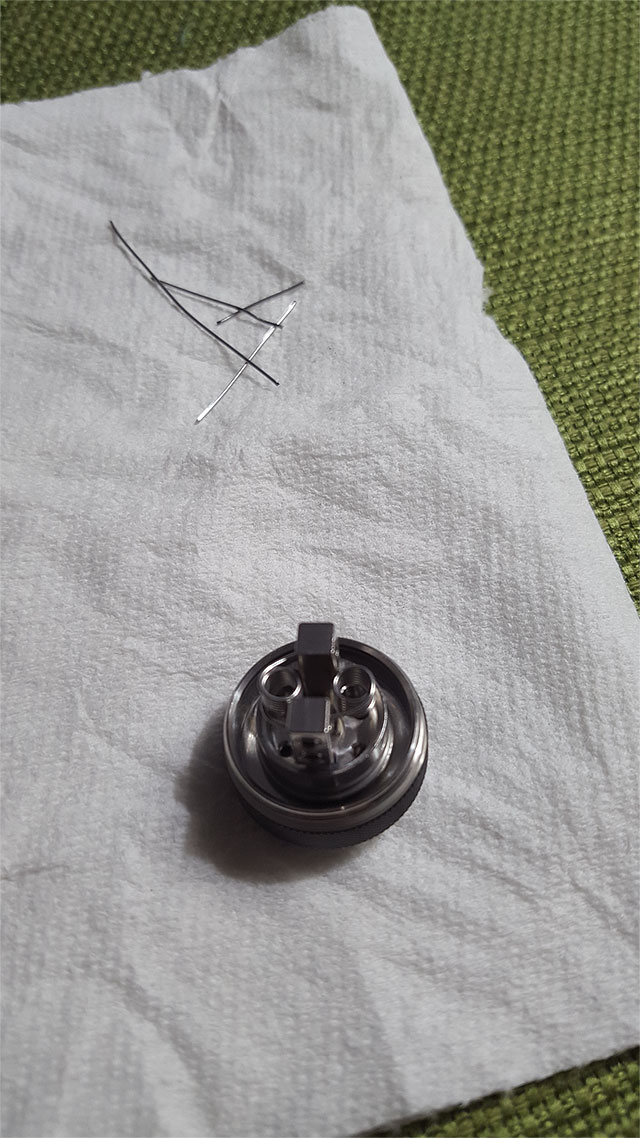

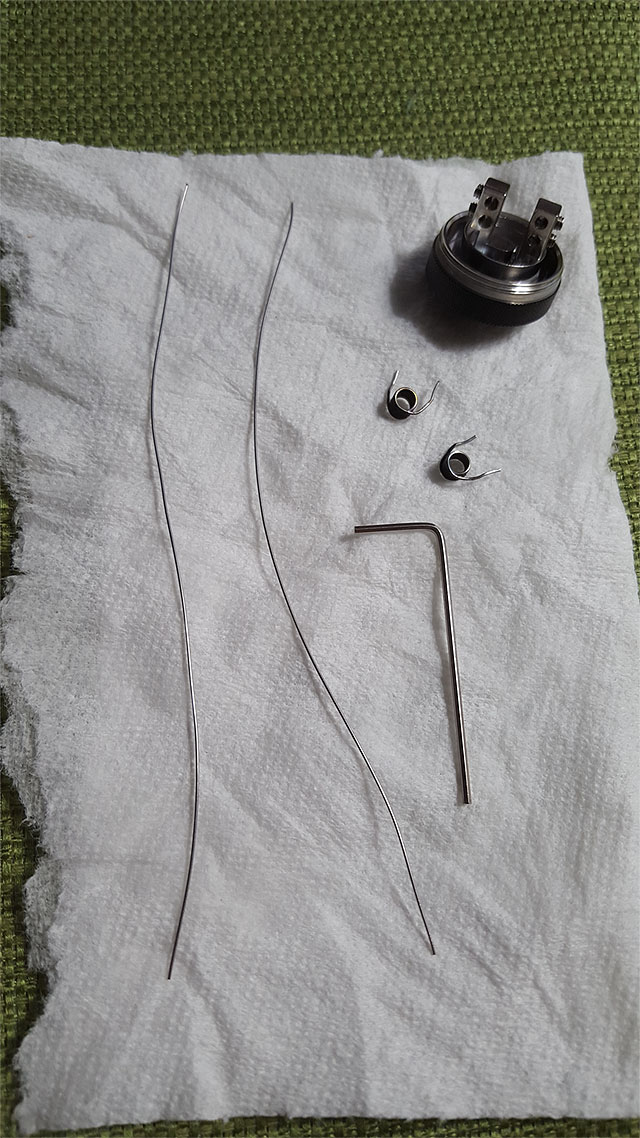

    Old Coils out, new wire going in:
    [​IMG]

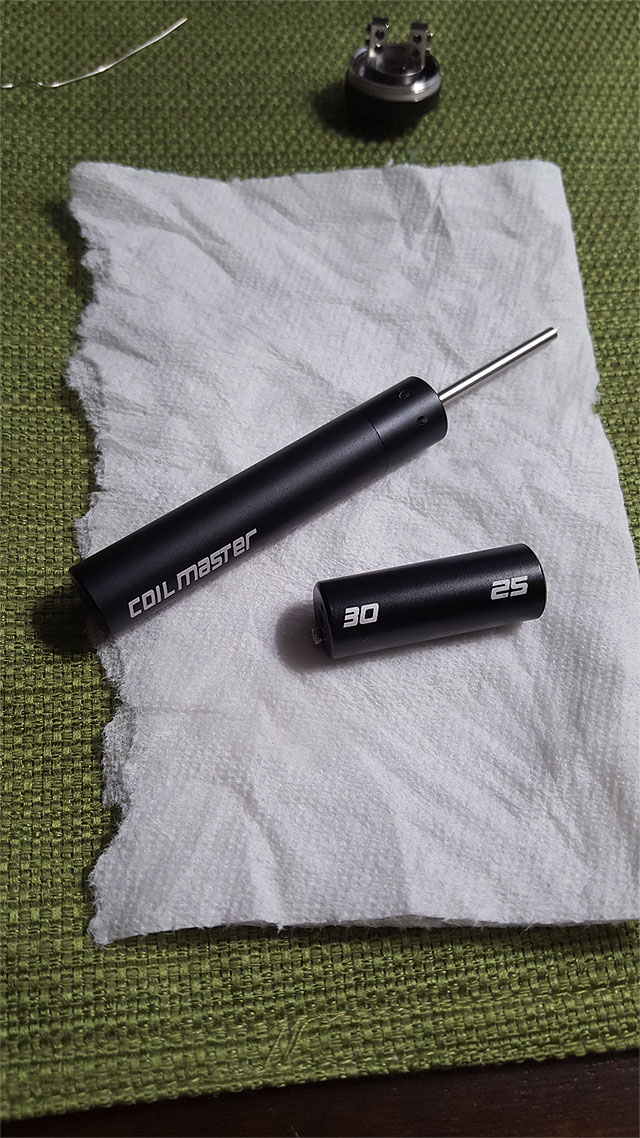

    Coil Master Jig with 30mm post:
    [​IMG]

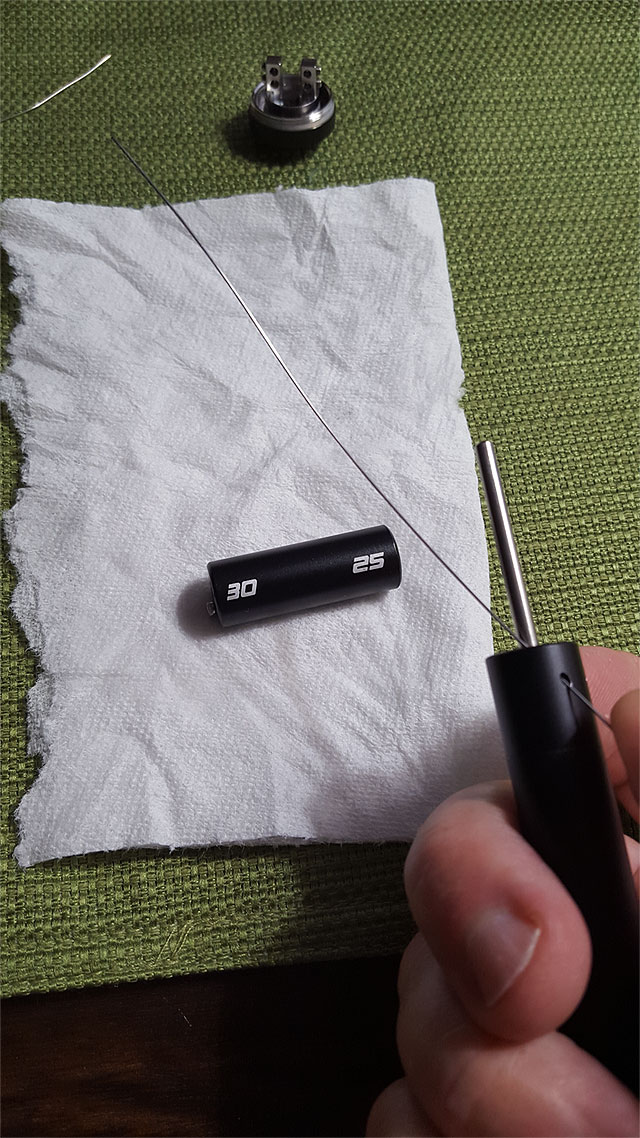

    Feeding wire into jig:
    [​IMG]

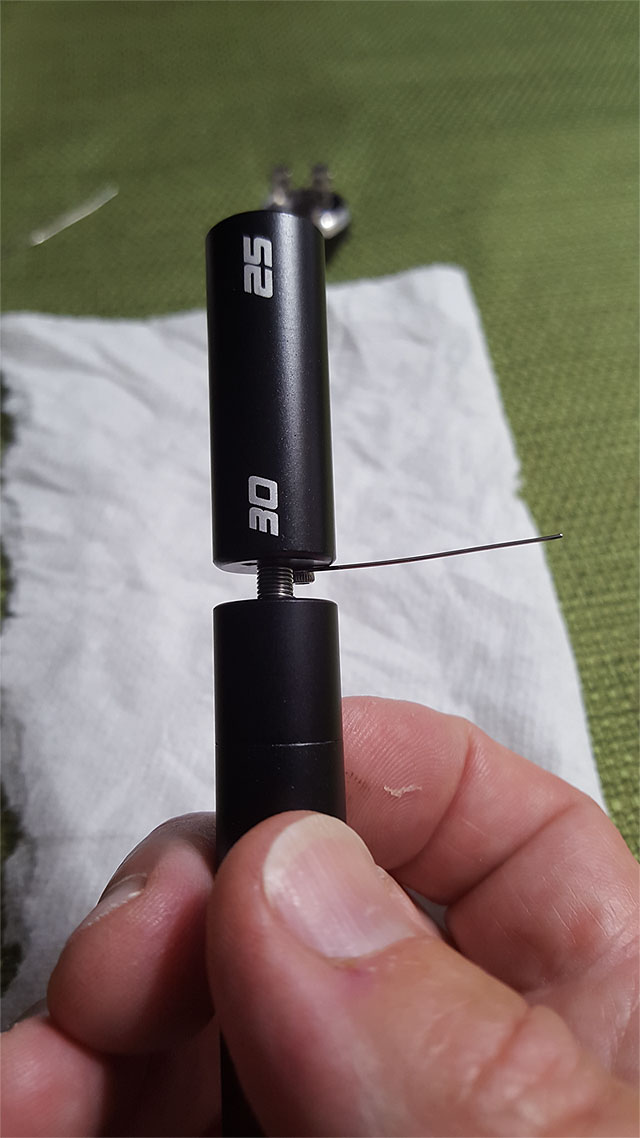

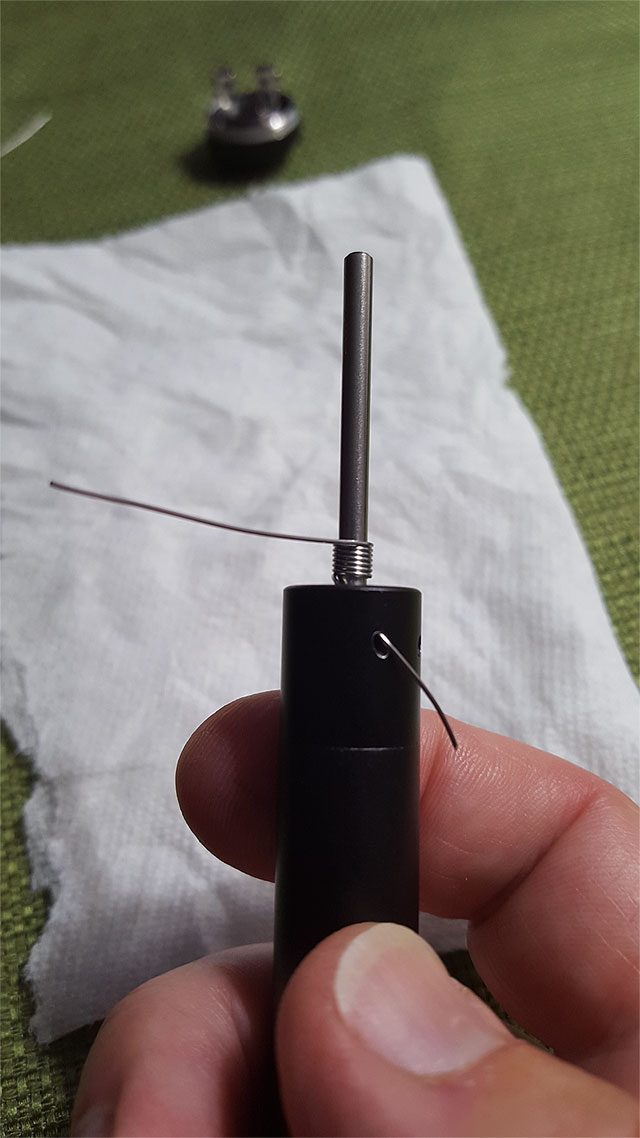

    Tight first wrap by hand:
    [​IMG]

    After 7 wraps trying to keep both ends near each other:
    [​IMG]

    Thanks Coil Master, too damn easy:
    [​IMG]

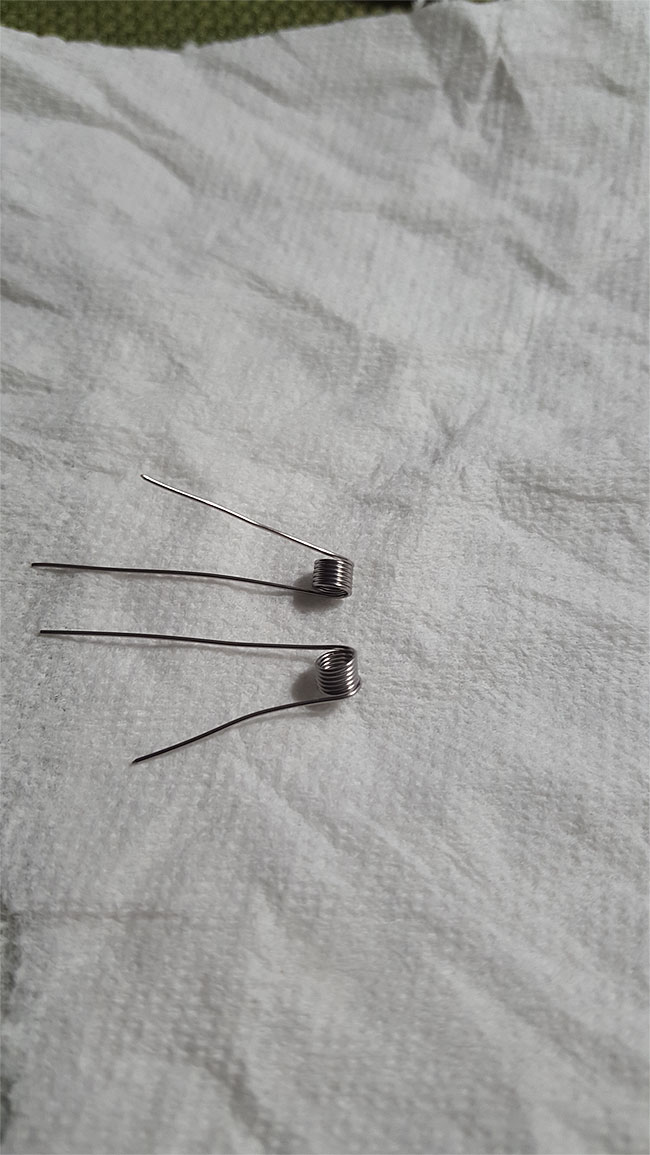

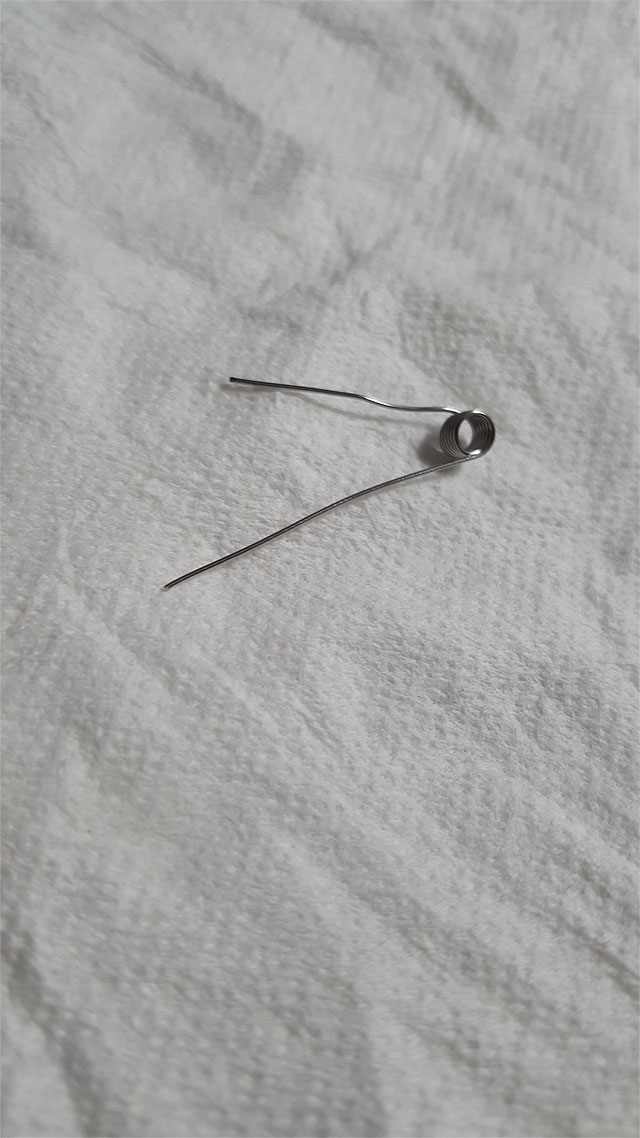

    Finished simple 7 wrap:
    [​IMG]

    2X:
    [​IMG]

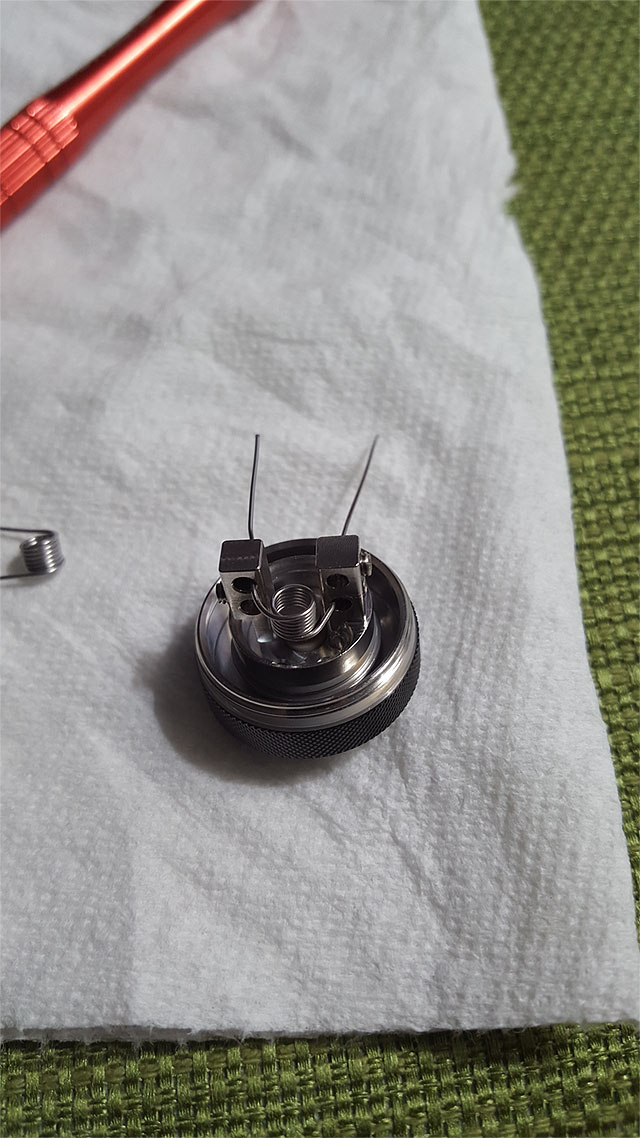

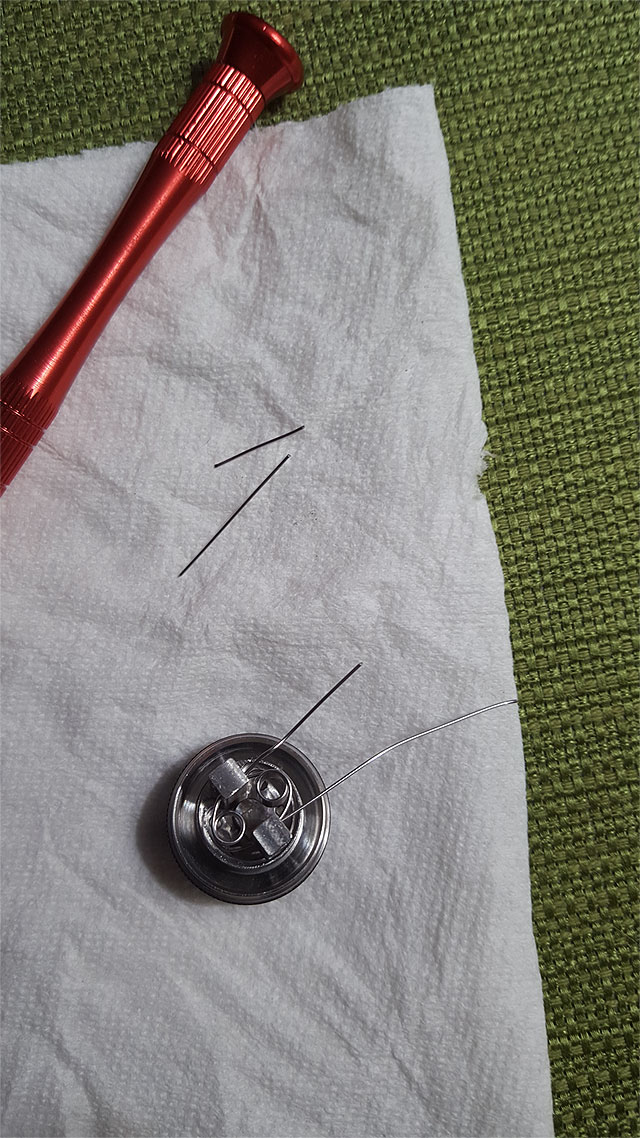

    First coil roughly placed, one lead on top, other lead on bottom:
    [​IMG]

    First coil trimmed, 2nd coil loaded making SURE they are inside the inner circle deck:

    [​IMG]

    Trimmed and straightened:
    [​IMG]

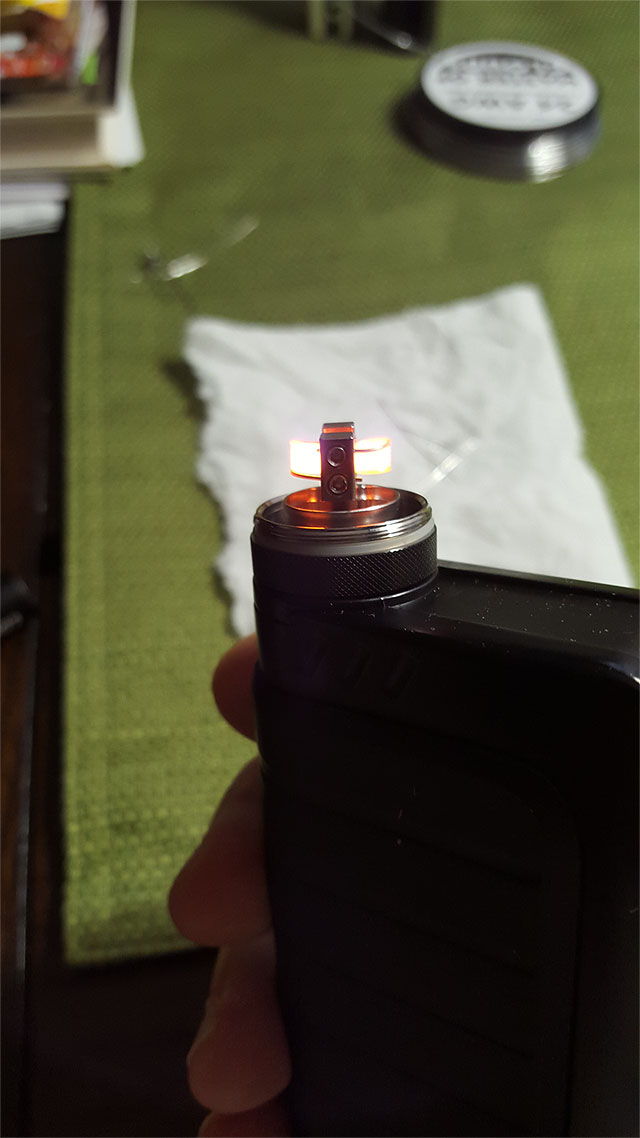

    Dry firing to remove any oils, before tweaking with ceramic tweezers:
    [​IMG]

    Piece of organic cotton cut, before removing thin outer (tougher) layers:
    [​IMG]

    Roll tip (just long enough to poke through) of cotton then pull through with tweezers:
    [​IMG]

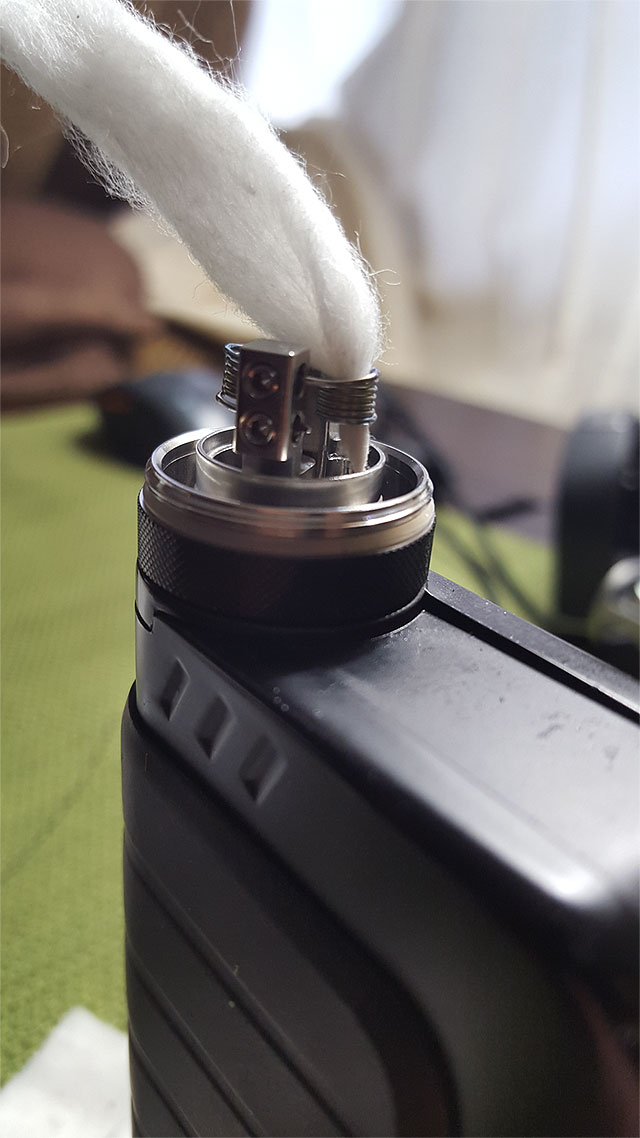

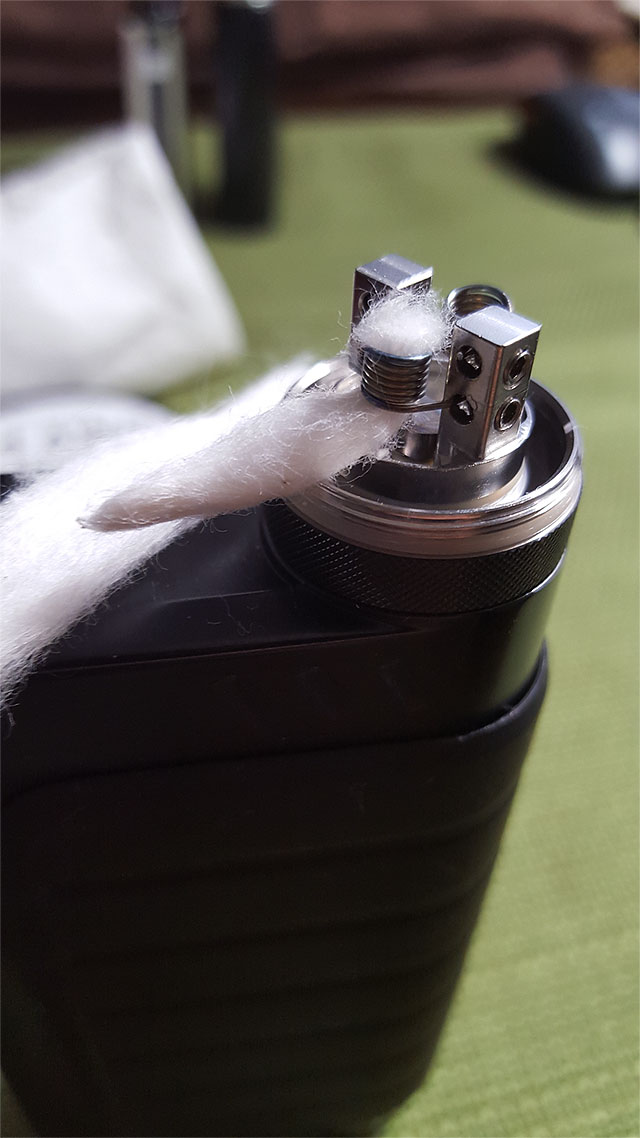

    Pull through by hand with medium resistance rolling to get in, but not compress:
    [​IMG]

    Cut top as close to coil as possible to prevent charring when using:
    [​IMG]

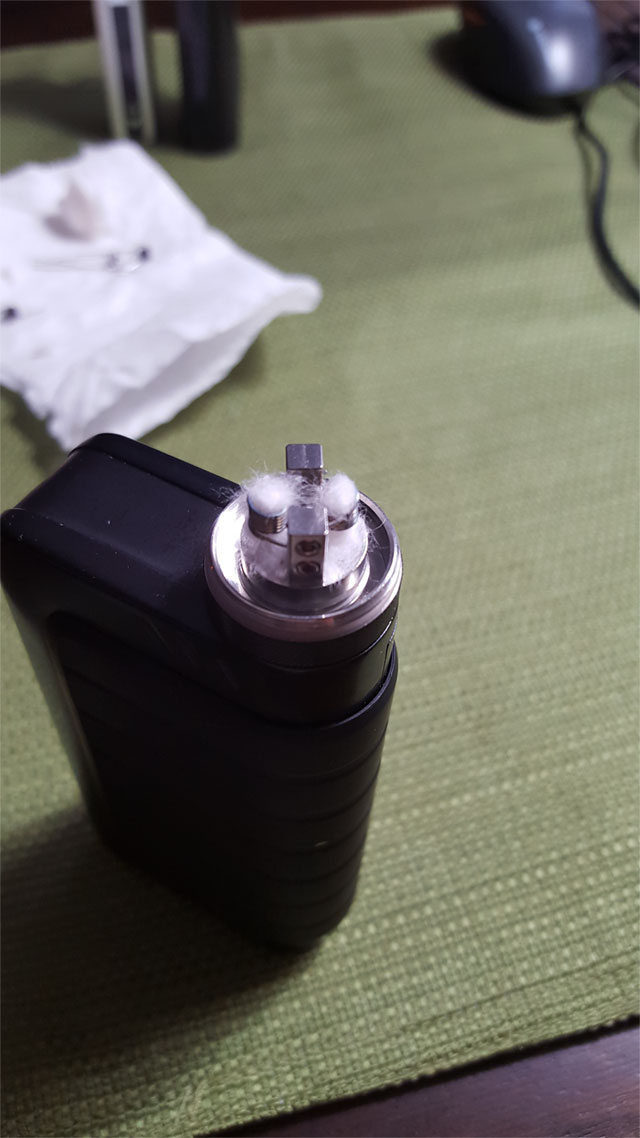

    Both wicks in, roughly trimmed before fluffing up with tweezers:
    [​IMG]

    Fluff and stuff. Do NOT pack, just cover 4 holes in deck plate:
    [​IMG]

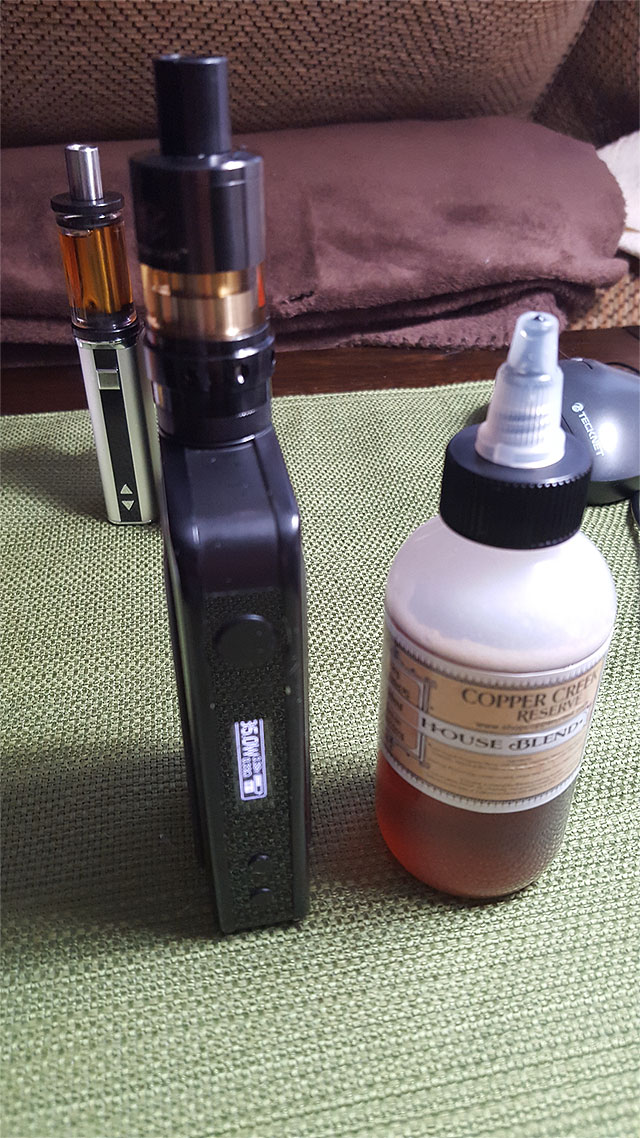

    Saturate wicks/coils, fill tank, assemble with House Blend .................

    [​IMG]

    • Like Like x 3
  2. FlyingV

    FlyingV ECF Guru Verified Member ECF Veteran

    Supporting member
    Thank you for this, clear pictures and instructions are exactly what we need. :)

    • Like Like x 1
  3. sessiondrummer

    sessiondrummer Ultra Member Verified Member ECF Veteran

    Jan 22, 2011
    USA
    Thanks FV, not the best coils, not the worst, but it sure works good with ZERO hassles.

    • Like Like x 1
  4. sessiondrummer

    sessiondrummer Ultra Member Verified Member ECF Veteran

    Jan 22, 2011
    USA
    You see I hid mini-me in the background for ya...

    • Like Like x 1
  5. FlyingV

    FlyingV ECF Guru Verified Member ECF Veteran

    Supporting member
    I stickied this so that it's always near the top. :)

    • Like Like x 1
  6. sessiondrummer

    sessiondrummer Ultra Member Verified Member ECF Veteran

    Jan 22, 2011
    USA
    I like stickies !!!!
