Bending Adapter for the eleaf istick

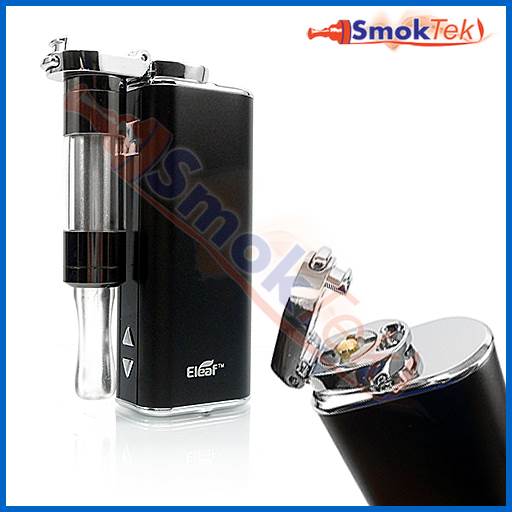

The eleaf iStick Bending Adapter screws onto your iStick to enable you to save space and make the device more portable. The adapter is 510-threaded and made of stainless steel, with a 510 spring pin which ensures your atomizer maintains proper contact with the iStick. The bending adapter essentially allows you to flip or "fold" over the atomizer you are using with your iStick, so that it fits parallel to the iStick (please see pictures above.)
The bending adapter is 510-threaded and will only work with 510-threaded atomizers, like the iClear 10. If using 510/eGo-threaded atomizers, you will need an eGo-510 connector.
The bending adapter was designed with the original iStick 20W in mind, and will perform best when used on it with an atomizer with a diameter no greater than 13mm. An atomizer with a greater diameter than 13mm will fit on the adapter, but will not "fold" over all the way. Please note that the bending adapter will work with the iStick 30W and iStick 50W, but will only fold part of the way in, due to the added "lip" on the iStick 30W, and the different top cap design on the iStick 50W.
To use install the iStick Bending Adapter, follow these steps:
The eleaf iStick Bending Adapter screws onto your iStick to enable you to save space and make the device more portable. The adapter is 510-threaded and made of stainless steel, with a 510 spring pin which ensures your atomizer maintains proper contact with the iStick. The bending adapter essentially allows you to flip or "fold" over the atomizer you are using with your iStick, so that it fits parallel to the iStick (please see pictures above.)
The bending adapter is 510-threaded and will only work with 510-threaded atomizers, like the iClear 10. If using 510/eGo-threaded atomizers, you will need an eGo-510 connector.
The bending adapter was designed with the original iStick 20W in mind, and will perform best when used on it with an atomizer with a diameter no greater than 13mm. An atomizer with a greater diameter than 13mm will fit on the adapter, but will not "fold" over all the way. Please note that the bending adapter will work with the iStick 30W and iStick 50W, but will only fold part of the way in, due to the added "lip" on the iStick 30W, and the different top cap design on the iStick 50W.
To use install the iStick Bending Adapter, follow these steps:

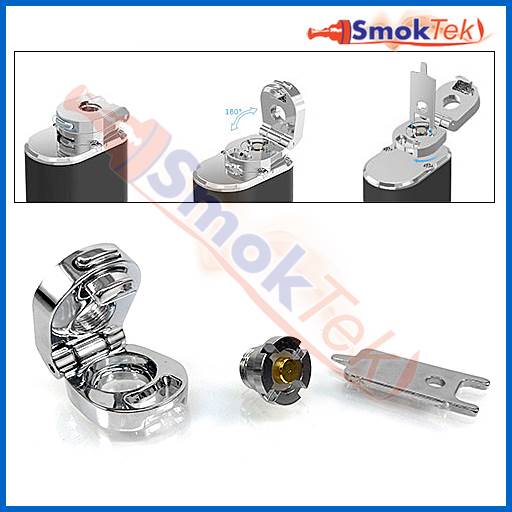

- Press the button on the bending adapter in order to open it
- Using the included screw tool, turn clockwise to screw in the 510 contact of the adapter into the iStick 510 connector. Hold the adapter body in place to prevent it from moving while you are screwing in the 510 contact
- Close the adapter, and screw on your atomizer. When you need to make your iStick even more compact, simply press the button on the bending adapter to open it and flip your atomizer 180 degrees
