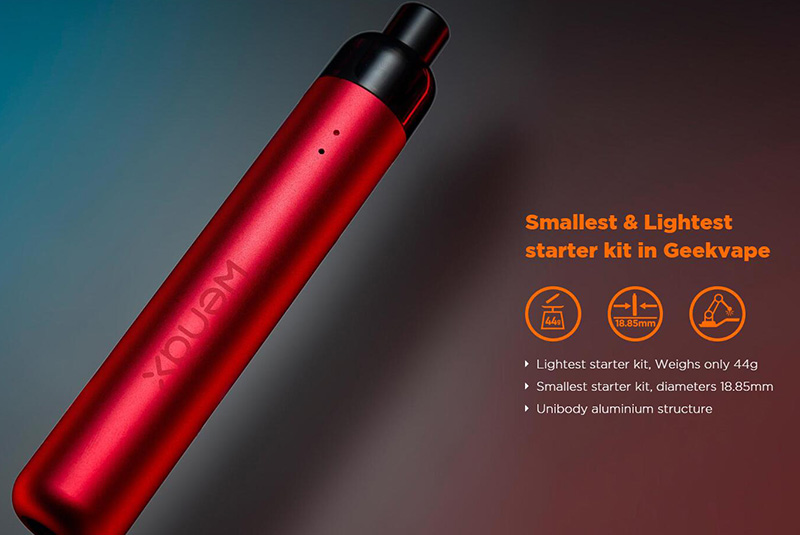

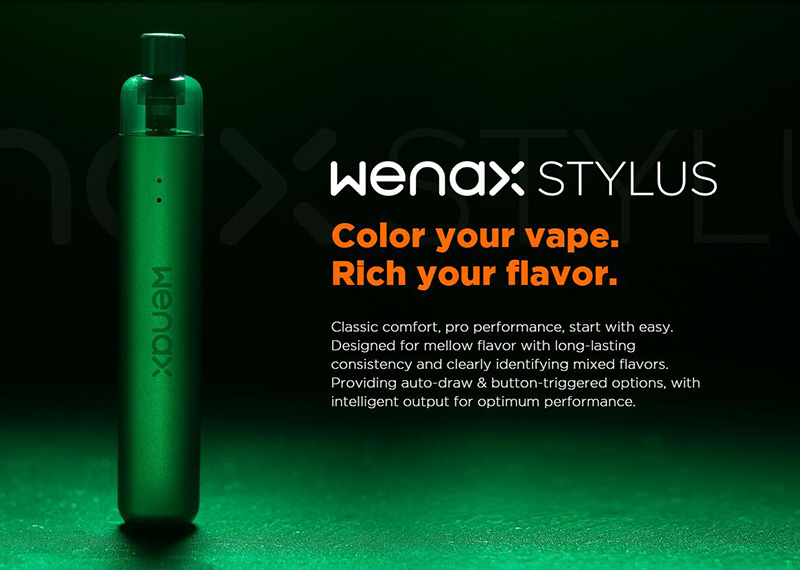

    Hello again everyone todays review is on a pen style Pod device from Geekvape called as the title says Wenax Stylus. This device gives the user 3 different levels of power on either coil that is supplied with the device. For a pen styled device you get a nice sized battery that will give the average user plenty of power for the entire day of vaping. As always before the review lets delve into the Geekvape Stylus and get to know it a bit before the review.


    COLORS





    1100 mAH BATTERY





    LIGHTWEIGHT





    AUTODRAW OR BUTTON ACTIVATED





    3 POWER OUTPUT OPTIONS





    INTELLIGENT OUTPUT





    PARAMETERS

    Size: 19* 112mm
    Material: Aluminium
    Battery: built-in 1100mah battery
    Auto fire: 14/15/16W (0.6ohm)
    9/10/11W (1.2ohm)
    Button fire: 16W(0.6ohm) /11W(1.2ohm)
    Low voltage warning: 3.2±0.1V
    Resistance range: 0.5-3ohm
    Longest vaping time: 10s
    Working temperature: -10-45℃
    PCBA temperature alarm: 80℃
    Standby current: <15uA
    Charging: 5V/1A
    Capacity: 2ml
    Resistance: G Coil Boost Formula 0.6ohm mesh coil(15-25W)
    G Coil Boost Formula 1.2ohm coil





    BATTERY LEVEL COLORS




    EcZWs7wUEAEawHZ









    INCLUDED WITH THE GEEKVAPE STYLUS ( Warranty Card, User Manual, Warning Card, Micro USB Cord, Extra Coil, Extra Drip Tip, Coil Removal Assist Tool )


    20200725_120322 (1).jpg



    Alright folks as you can see the Wenax is a pretty basic Pod system in a pen styled format that has a nice simplicity to it. I was sent the black colored device that has a smooth feel to it and is fairly light. Geekvape provides a second Drip Tip that has a tighter bore and works well with the 1.2Ω coil.

    The Wenax comes in 2 pieces ( Battery and Pod ) and is held together by pressing the pieces together, you will hear them click when connected. The 2ml Pod itself is filled by opening the rubber fill hole gasket located on the side of the Pod.




    The battery portion of the device has 2 contacts that connect with the coil side by side with the draw activation hole located just below them.




    The 2 airflow holes are located on either side of one another with one being just above the USB port. When looking at the airflow holes it appears to be 2 holes at either side but the top holes are just indentations and are not fully drilled out.






    OPERATING THE WENAX STYLUS

    The Wenax can be used by button activation or draw activation which is a feature I'm happy to see, I use the Wenax in the button operation mode. I tried the draw activation and it works but sometime it just quits in mid draw. The user can select 3 different power levels by pressing the power button 3 times quickly, each 3 click press moves you to a different level. Power levels are indicated by color, the power button lights to show your level.

    LOW - White



    MEDIUM - Blue



    HIGH - Green



    If using the button activation mode you are going to get full power, using draw activation mode lets you get the level modes to tailor your vape. Both coils vape with average flavor with the 0.6Ω being my preferred coil to use in the Wenax Stylus.

    I wish that the Pod was lighter in color or clear for that matter, you can see your juice level as it is but a lighter tint or clear Pod would have been much better in my opinion. The battery being 1100 mAH will get you through the day on 1 charge, by the way the Wenax charges at a rate of 1 amp.


    PROS
    * Lightweight
    * Average flavor
    * 1100 mAH
    * Draw or activated
    * 3 Power levels


    CONS
    * Dark tint of Pod
    * Draw activation stops in mid vape sometimes



    FINAL THOUGHTS

    My thoughts on the Wenax Stylus are this, if your looking for a discreate pen styled device with a battery that has enough power to get you through the day on a single charge with average flavor the Wenax will do it, and with Nic salts it will have even more appeal to the user. At about $20.00 or cheaper it gives another option for vaper on a budget.

    I would like to thank Elliot and Geekvape for providing the Wenax Stylus for review, and hope this review helped anyone looking to purchase the Wenax Stylus.

    THANK YOU
    BIGBOB2322


    Bigbob2322

    Vaping Master
    ECF Veteran
    Verified Member
  • Jul 27, 2014
    8,414
    23,375
    Schiller PK IL USA
    Banging review as usual Bob. :thumb: If I was just starting out, I would use this. I had a few pen style vapes at the beginning and I loved the form factor.
    Same here Rob, with all the options out today there' something for everyone.


    hittman

    ECF Guru
    Supporting Member
    ECF Veteran
    Verified Member
    Contest Winner!
  • Jul 13, 2009
    61,119
    178,440
    Somewhere between here and there
    Hi Hitt did you have any cutoffs in auto draw mode?

    Not that I noticed but with auto draw devices I tend to draw, let off for a split second then draw again. Do you think you were hitting a cut off with a long draw?
