How to see if your atomizer is truly dead with a Voltmeter

Status
Not open for further replies.

breakfastchef

Moved On
Feb 12, 2009
2,225
8
    Continuity is the most basic diagnostic you can do with the voltmeter. There is a setting for that on the dial. Often, the device will have an audible sound when you touch the red and black probes and/or the needle will move showing you have continuity. Touch the black probe to the threads of the atomizer connector and the red probe to the center conductor. If you hear a sound or the needle moves. the heating coil is most likely intact.

    A resistance measurement is done similarly with the meter set to read ohms. If you have a meter with a needle, you often must zero adjust the meter. Touch the red and black probes together and use the zero adjust to make the needle rest at zero. Then test the atty like you did for the continuity test. Read the appropriate scale on the meter for the result. Most 801-style attys read around 3.3-3.7 ohms. If the reading is very high, the atty is FTD (fixin' to die).


    Stormynights

    Vaping Master
    ECF Veteran
    Verified Member
    Mar 31, 2009
    3,232
    200
    Bristow, Ok.
      Your device can test batteries because the batteries have power. You probably just need to take off the back cover an put some fresh batteries inside. Then you will be able to test continutiy and resistance, assuming there is nothing wrong with the meter.

      I am such an idiot. I didn't know that you was supposed to put a battery in there. There is 2 settings for OHMS x10 and x1k. I don't know how to set it to O. I guess it already is. How do you tell?


      Richie G

      Ultra Member
      ECF Veteran
      Verified Member
      May 15, 2009
      1,986
      561
      63
      Lawn Guyland, NY
        x10 is probably the right setting for resistance. If there is a zero adjustment, it will be marked on the front of the meter. If there is one, set the meter to x10, touch the two probes and adjust the screw (possible near the base of the needle) until it lines up with zero.

        >

        Hold on. Before we confuse the OP, let's find out what type of meter he has. He said it is relatively new so there may be no need to speak of adjusting an analog meter to zero.

        How about it Stormynights? Does your meter have a digital readout or does it have a needle that swings left to right? If it's a digital, set the ohms to x10 as Breakfast detailed. There is no manual zero calibration if your meter is digital. Then place one lead to the copper outer shell threads and the other to the center post as others have described.


        Stormynights

        Vaping Master
        ECF Veteran
        Verified Member
        Mar 31, 2009
        3,232
        200
        Bristow, Ok.
          >

          Hold on. Before we confuse the OP, let's find out what type of meter he has. He said it is relatively new so there may be no need to speak of adjusting an analog meter to zero.

          How about it Stormynights? Does your meter have a digital readout or does it have a needle that swings left to right? If it's a digital, set the ohms to x10 as Breakfast detailed. There is no manual zero calibration if your meter is digital. Then place one lead to the copper outer shell threads and the other to the center post as others have described.

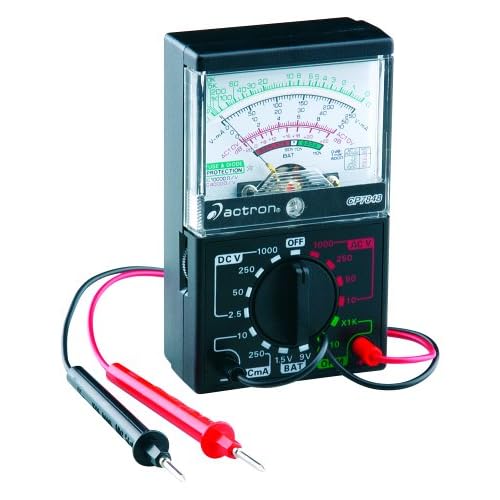

          It is not digital. It says actron. There are so many zero's on the dial I am really confused.


          Jim Davis

          Vaping Master
          ECF Veteran
          Mar 16, 2009
          4,260
          83
          Retired in Houston, Texas / USA
            OK - The ohms selector is in the green area. You select the lowest number. In your case, it's 10ohms. Remember the 'k' stands for 1000. 1k=1000. If the lowest is 10, set it on 10. Black probe on the threads, and red probe on the center. See what it says. It wont work without a battery in the meter.


            Stormynights

            Vaping Master
            ECF Veteran
            Verified Member
            Mar 31, 2009
            3,232
            200
            Bristow, Ok.
              OK - The ohms selector is in the green area. You select the lowest number. In your case, it's 10ohms. Remember the 'k' stands for 1000. 1k=1000. If the lowest is 10, set it on 10. Black probe on the threads, and red probe on the center. See what it says. It wont work without a battery in the meter.

              Do I need to adjust anything? There is a battery in it now.


              Jim Davis

              Vaping Master
              ECF Veteran
              Mar 16, 2009
              4,260
              83
              Retired in Houston, Texas / USA
                OK now we're getting somewhere. It's been a very long time since I worked with that type of meter. Mine are all digital now.

                Anyway;

                8 ohms would probably be good since the meter isn't calibrated, and that type of meter isn't as accurate as the digital's, but it's OK for what you want to use it for.

                If you have the selector on 10ohms, and touch the two probes together, that would register a dead short.

                If it does nothing when you test the atty, it shows that the circuit is open, which would mean a broken coil. (Nothing is connecting the circuit.)

                The good atty is probably not 8 ohms, but I would imagine closer to 4. That would be how accurate the meter is. If you have the book that came with the meter, it should tell you how to calibrate it. (Like making sure a scale has to be set to zero before you step on it.)

                You're almost there.


                Stormynights

                Vaping Master
                ECF Veteran
                Verified Member
                Mar 31, 2009
                3,232
                200
                Bristow, Ok.
                  OK now we're getting somewhere. It's been a very long time since I worked with that type of meter. Mine are all digital now.

                  Anyway;

                  8 ohms would probably be good since the meter isn't calibrated, and that type of meter isn't as accurate as the digital's, but it's OK for what you want to use it for.

                  If you have the selector on 10ohms, and touch the two probes together, that would register a dead short.

                  If it does nothing when you test the atty, it shows that the circuit is open, which would mean a broken coil. (Nothing is connecting the circuit.)

                  The good atty is probably not 8 ohms, but I would imagine closer to 4. That would be how accurate the meter is. If you have the book that came with the meter, it should tell you how to calibrate it. (Like making sure a scale has to be set to zero before you step on it.)

                  You're almost there.

                  Thank you Jim for your help. I still have so much to learn but I am a lot better off now thanks to you and the others that took the time to help. I always loved Red Skelton.:thumb:


                  Jim Davis

                  Vaping Master
                  ECF Veteran
                  Mar 16, 2009
                  4,260
                  83
                  Retired in Houston, Texas / USA
                    My RN4081 and M401 attys register roughly between 3.5 to 4 ohms when good. The higher the reading, the more resistance, which is not good. When a heating coil breaks, you'll get no reading, as the circuit is broken. In the case of atomizers, when the coil breaks, the burnt crap touching the coils have resistance. that's where you get the 5k 20k 30k readings. The crap is completing the electrical circuit, but is useless for anything.

                    If you get a decent meter, and take the probes in each hand, press your thumbs into the probe ends, the meter will measure the resistance going through your body.
