My New home made sick Mod bottom feeder

[studiovap]

Hi Folks, been very sick with the Flu/Whooping cough (test results on monday) and after seeing llamabreath's DIY box mod I thought I'd give one a go, kept walking away from it and comming back as I got frustrated with the way the build was going (as in not perfectly), it really was a godsend though as it gave me somthing to combat my boredom,It's not that pretty on the inside, but it has a beautiful magnetic switch and fuctions really well in all areas
I did not have time to wait foe a super duper bottom feeding 510 connection and Drip Cup, or any proper parts lol, I was sick and needed to get somthing happening before I went mad.
I did not take pictures during the build so this is all you get, hope you like.
Sorry for the poor quality pics I'm too sick to care to much at present.

Parts:
Wood: salvaged from broken up Indian incence burner($9 at Madhouse)
AGA-T topsection (thanks Bronco finally put it to use)
Magnets, for switch, door clasp, and negative battery terminal.
Silicone tubing from IV drip (told you I was sick )
Brass rod from local toy strore
Brass nut ( to make switch button)
Brass tapp washer (to make sq.... button)
10c Coin
5c Coin
Brass washer
SS allen bolts,nuts and washers all M3
Copper wire
super Glue

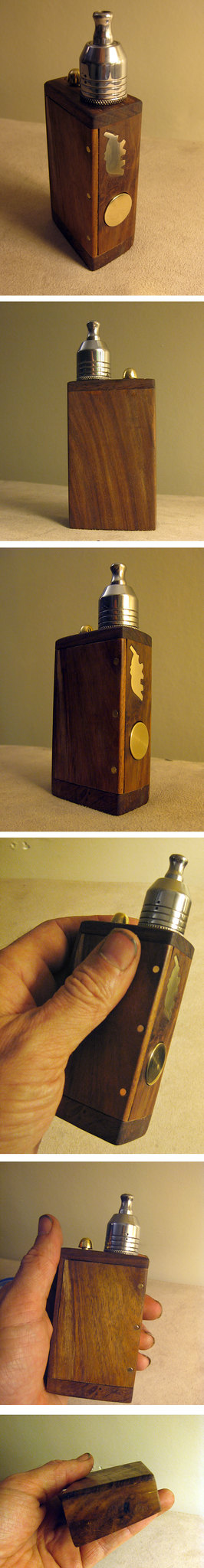

The Externals

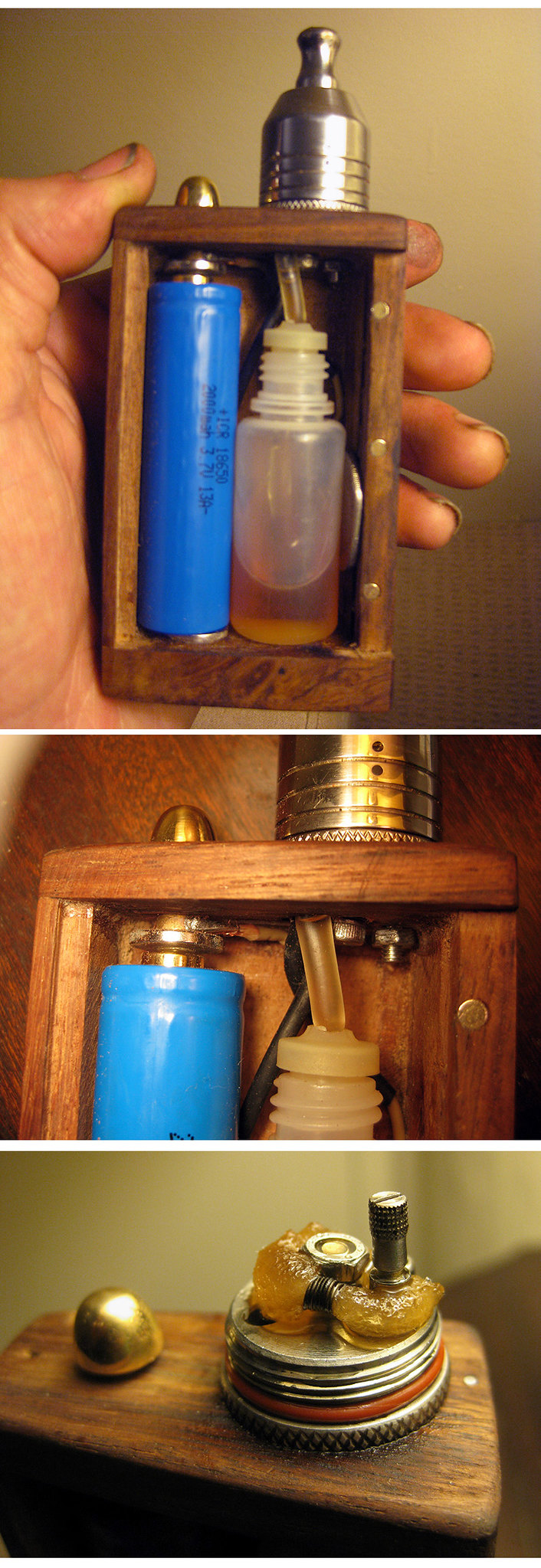

The Ugly internals
rocking a 1 Ohm Micro coil on rolled cotton wick
