Regulated single 20700/21700 Squonk Mod???

[laserloui]

I am on the lookout for a high quality squonk mod and after joining tons and tons of facebook groups i got a little tired. Maybe you can suggest something to me or point me to the right direction?

So far i could only find:

• Simple 75 from Simplicity mods
• Something pretty similar to the Simple 75 from Skullkandy Design

The box mod should:

• Squonk/Bottom Feed
• Regulated (any chip, DNA75)
• Single 20700 battery (if possible be also compatible with 21700)
• Cost less than 250$

The "looks" are surely also important, as well as the 510 positioning, no sharp edges, used materials, buttons, 510 and all the other stuff, but for now i am only trying to find something that suits these main points.

Thanks in advance!



[Henry Etta]

Catfish Atty Mods Chapter 3
Check out the last few pages of the thread. LBC Jr, only single 20700 DNA75 squonker under $250 that I've ever seen



[Kelt.]

Catfish Atty Mods Chapter 3
Check out the last few pages of the thread. LBC Jr, only single 20700 DNA75 squonker under $250 that I've ever seen

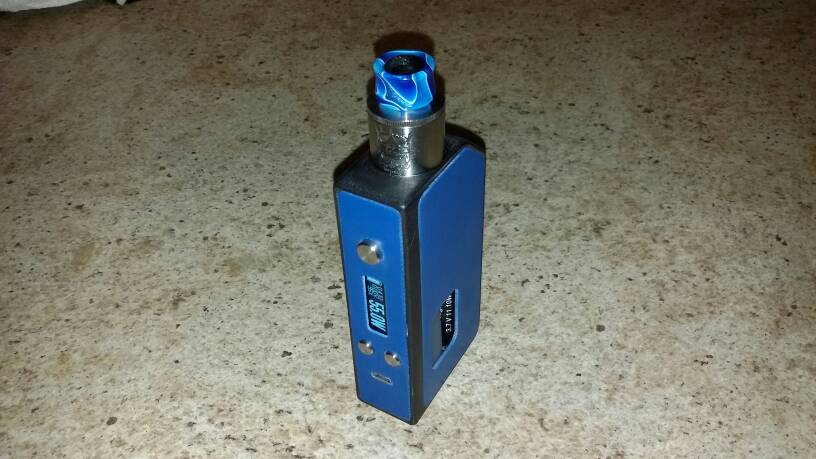

And it ROCKS!
carbon fiber-infused nylon. SS door and bezel, color doors available too



[Rathamar]

I was going to suggest Hellfire Mods (I cannot remember if they make one or not), but then I noticed that you wanted less then $250 so that is out. They are $400 $500 easily.



[laserloui]

And it ROCKS!
carbon fiber-infused nylon. SS door and bezel, color doors available too

Could you give me its dimensions pls?



[Kelt.]

Could you give me its dimensions pls?

Roughly 24x50x99 mm though I'm sure Tom has the exact dimensions.



[Kelt.]

Could you give me its dimensions pls?

And Tom already made a detailed features and dimensions post in the thread:

(Feel free to copy paste this to bring it forward as gets buried)

LBC Jr stats and details
Body: 3d printed in continuous strand carbon fiber/nylon step sanded to 500 grit to remove external signs of 3d printing, milled door and bezel edges for a more precise fit of doors and bezel. Exaggerated radius on the back of the mod for hand comfort and size reduction.

Board: Dna75 with Catfish Atty Mods specific splash screens (shoutout to Motabrownie) and profiles. Board mounted to the body via brass press in inserts (not threaded plastic)

Battery suggested: NCR 20700A, IJoy 30a/3000mah also approved

Plate and bezel: custom milled and water jetted 304ss, (G10 or Garrolite) optional doors and matching bezels which can be installed by the end user with minimal instruction. Magnetic retention via N54 grade magnets in both the body and the door/bezel

510 connection: Varitube fully automatic, stainless steel, 22 mm, modified for easier bottle changes, flush mounted.

Buttons/actuators: 304ss, same as the LBC200

Contacts: nickel plated spring copper

Internals: Acer 14g silver tinned copper input, 14g tinned copper braid for flex output (510 positive)

Dimensions: 98mm tall, 51mm wide, 25mm thick. (5mm shorter, 7mm narrower and the same thickness as the LBC200

Pricing:
LBC Jr $250
IJoy 20700 30a/3000ma batteries $22 per pair
G10 Door and Bezel kits (Available in Black Matte, Royal Blue Matte, or Digital Camo Matte) $45/set
Shipping mods: $7/24/34
Shipping plate/bezel kits only $4



[B2L]

For what your looking for I don't think you'll find anything better than the Catfish LBCJr, it's a quality mod that's built to last.



[beez0527]

^^^agreed^^^ 2 extra panel sets I purchased , my absolute favorite mod to date and I have quite a few and right now for the money, customization, battery life and as always with Tom's work top notch craftsmanship.

Sent from my SM-P607T using Tapatalk



[Robbert]

How do you get one of these catfish Atty mods?
I've tried googling for them and can't find anything except a few mentions of a 200dna LiPo mod.



[beez0527]

How do you get one of these catfish Atty mods?
I've tried googling for them and can't find anything except a few mentions of a 200dna LiPo mod.

Go to the modder section his catfish-atty-mods section is in there.

Sent from my SM-P607T using Tapatalk



[APathos]

I'm waiting to see what this turns out. Their mech squonk has a 20700 or 21700 version. So maybe.



[Robbert]

I sent him a message.
Is this the same catfish atty that makes the stumpy and thump bf atomizers?



[beez0527]

I sent him a message.
Is this the same catfish atty that makes the stumpy and thump bf atomizers?

Yes


Sent from my SM-P607T using Tapatalk



[rob33]

I'm holding out for the new Boxer BF Dna 75c coming out soon.



[Dunder Mifflin]

I have my eye on this one, kinda regulated PWM... Dual 18650 SQUONK



[couldnthinkaone]

maybe try the IJOY CAPO Squonk Box? 100W regulated box, comes WITH a 21700 battery and an 8ml bottle, and it's only $51... I'll be ordering one soon.



[Hightech Redneck]

maybe try the IJOY CAPO Squonk Box? 100W regulated box, comes WITH a 21700 battery and an 8ml bottle, and it's only $51... I'll be ordering one soon.

$34 on ft without a battery, I too am really looking foward to someone getting hands on with the capo.
There is also a fuchai squonk coming.
I really hope these low cost manufacturers are paying attention and go silicone with bottles. Or compatible with current silicone bottles.
Still waiting.........



[couldnthinkaone]

FT?



[puffon]

FT?

$44.95 Authentic IJOY CAPO Squonker 100W Box Mod + Combo RDA Kit - 1*18650/1*21700/1*20700 / built-in 9ml squonk bottle at FastTech - Worldwide Free Shipping
