Wicking problem ammit dual coil

[dardares]

Hi,

I desperately try to make this build to work.

Here the issue, have prebuilt coil, perfect fit. I try to wick them many time today, watch many youtube video, etc, and at each time, it leak. If it don't leak, the flavor is horrible, dry hit.

I've tryied japanese cotton, organic cotton and bacon v2, all cotton type make the same result.

When it's leak, i've tryied too to add more cotton. Seem to come from the airflow the leakink. After added some cotton, the leaking issues is resolve, but the flavor is not there, and dry hit.

I'm desesperate, i try to get off my tfv12 (coil cost so much,) to rdta, but no luck.

Thank you very much!

Envoyé de mon SM-N950W en utilisant Tapatalk



[Beamslider]

Can't really help much other than to suggest checking that all gaskets are good and tight. If air gets into the tank it will probably leak



[dardares]

I've added a gasket to the top fill, i will try to change the gasket on the bottom, but it seem ok.

Envoyé de mon SM-N950W en utilisant Tapatalk



[bombastinator]

I’ve only used the single coil ammit, but my experience was that wick size and length was exacting and critical. I got best results with a 3.5mm diameter coil packed fairly tight, with wick length so that the fibers just touch d the bottom of the juice well. This required some sculpting of the end of the wick



[gofishtx]

I’ve only used the single coil ammit, but my experience was that wick size and length was exacting and critical. I got best results with a 3.5mm diameter coil packed fairly tight, with wick length so that the fibers just touch d the bottom of the juice well. This required some sculpting of the end of the wick

You need to thin out your wick tails. Too thick of a tail will flood juice into your airflow. Look at some YouTube videos of reviews and you should find one that shows building and wicking. Good luck



[dardares]

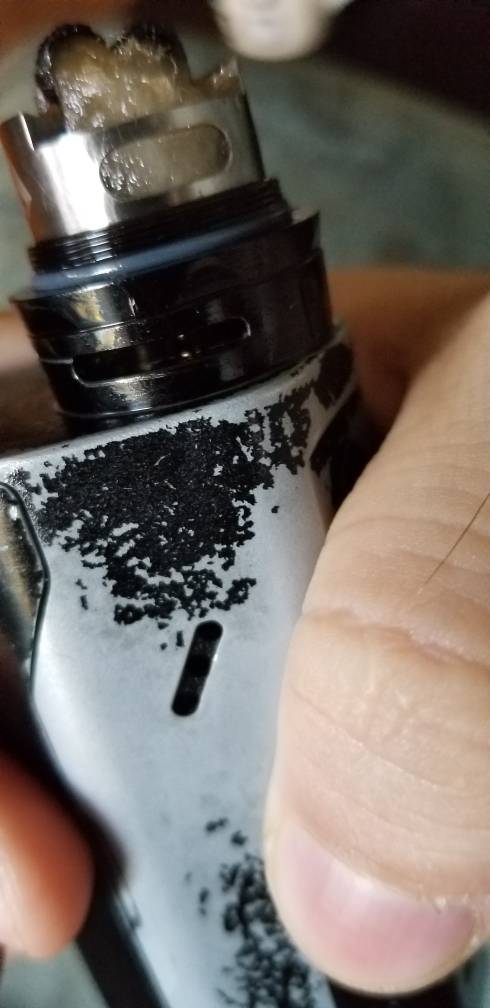

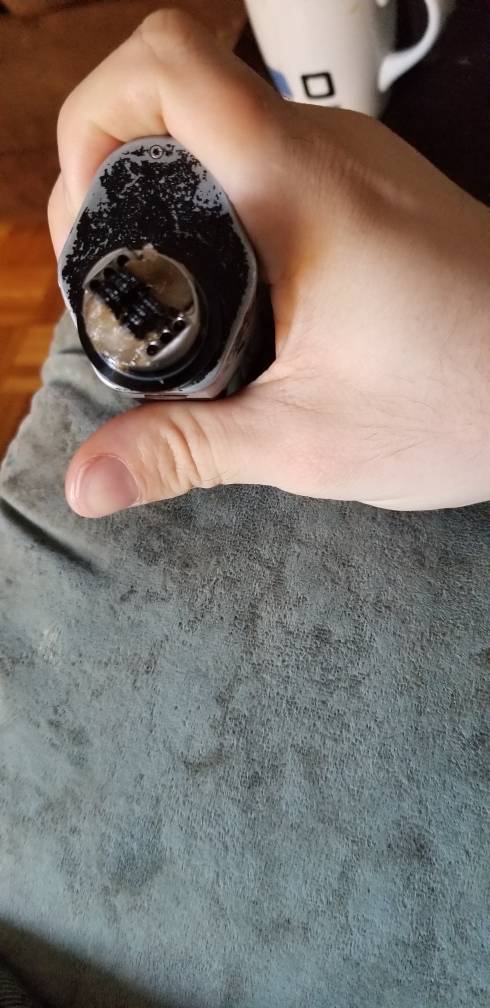

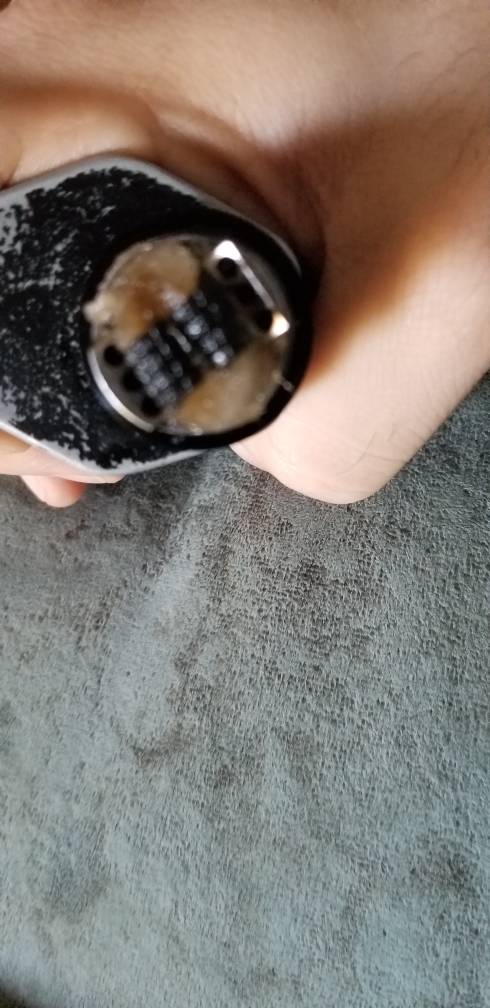

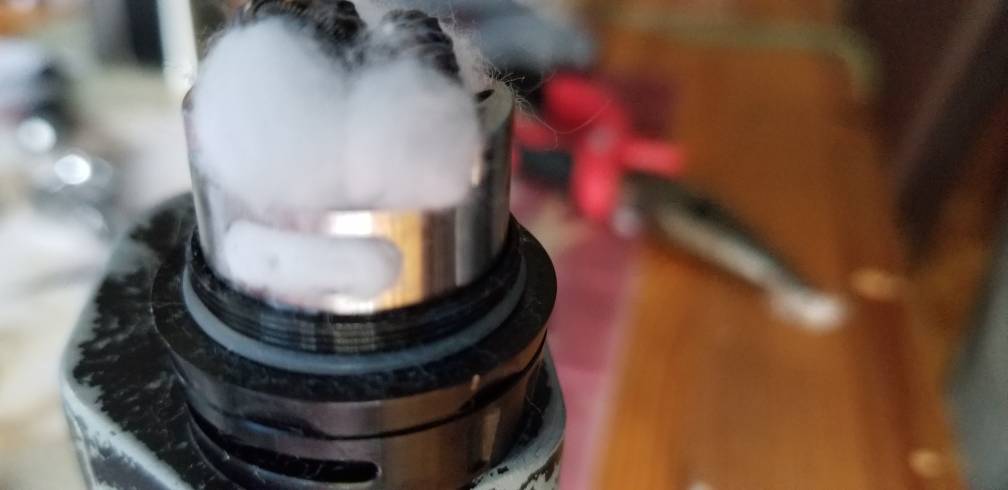

Here are somes pictures of my actual build. Like i said, been watched many YouTube video, tryied a lot of technique demonstrated in them.

The airflow on this thank is the left and right holes. Like the pictures show, no any cotton go on it. And this leak.

Thank.

Envoyé de mon SM-N950W en utilisant Tapatalk



[bsidb]

here is mine without leaks



[bsidb]



[bsidb]



[bsidb]



[bsidb]

hope this helps, it is Rayon by the way , and every thing is loose not tightly packed



[dardares]

I see you coil has more turn than mine. Does it's possible it's the reason of my problem?

I see too your cotton is mire fluffy than mine, maybe the reason too. Because i've nothing over airflow.

Envoyé de mon SM-N950W en utilisant Tapatalk



[bsidb]

more coil would make better use of the air flow, as you have it the air flow goes past the coil without picking up any vapor, your wick should have shoulders touching the top of the coil, filling the coil, see how yours droop coming out of the coil, also the hole for juice to wet the wick should be full of wick closing the hole, loosely packed



[dardares]

Here is my new wicking, whit new coil.

The taste is not too bad. Seem wet for now, but i've just mounted it.

Envoyé de mon SM-N950W en utilisant Tapatalk



[bsidb]

does it leak a little out the air holes? if it does try with the same amount in coil but trim, thin, the legs a bit and tuck the shoulders in so they don't touch inside the chamber



[dardares]

Been vaping since i've posted my last reply, and for now, no any leak ! yeah !

The flavor is not deep also.



[dardares]

Finally, the flavor is ok, but seem to restart to leak today.

If i understand what you mean, bsidb, i need to cut a little bit the leg, so it will be less cotton inside to juice hole in the bottom of the thank, and to make the soulder more straight to go directly in the juice hole, then it will be less pointed up?

Thank again, i think i will finish to understand and make a thing working, it go better from one time to another



[Alter]

Just a shot cause I don't own a ammit but from just looking at the pics. I see first there is a space in the wicking in the juice well, the wick has to totally cover the opening of the juice well. Since your using cotton there seems to be way too much bulk in the tails so the cotton will just pump juice up as your vaping then drip off. Take tweezers or pin holding down one side of the wick then brush through the tail removing then cutting off rather than pulling off some of the bulk you brush out. Another thing I do is juice the wick after thinning out the tail then make the tail like a fan to be sure the juice hole is totally covered then put a small ball of cotton behind the wick in the well to hold the fan of wick in place(amount of tail thinned determines how much to put behind the wick), I never try to place dry wick into a well or channel. Having the wick touching the sides of the atty or protruding over the well is another reason for the leaking, after a few pulls the juice is flowing to the coil then running down the sides again caused by massive tail bulk.
Just trimming the tails in a wide ID coil just isn't enough, you have to balance the tails to juice flow by removing some of the wicking. This is where rayon works much better than cotton cause you able to thin out the tails to be able to fill the well with enough wick cause you can thin it out and still have great juice flow.
As for shoulders I read....just be sure the fibers are all straight and pretty(the thinning does that), make sure the top of the last wrap has wick under it, there is no real need to have shoulders.
If you want my true opinion is that you get rid of the cotton and give rayon a go. Bit of research to how rayon is to be wicked(opposite to cotton)..super tight in the coil with thinning of the tails(less is more), you get more life out of rayon cause the juice flows outside the fiber unlike cotton that flows inside the fiber thus expanding and fibers plug up causing the burn then dryhits that with rayon your coil cocoons with YUK long before the rayon poops out then after a rinse the rayon is barely browned while the cotton is burnt black.
I've been vaping rayon builds well over 2 years now and never vape any other wicking again unless something earth shattering comes around but that hasn't happened yet.



[bsidb]

Finally, the flavor is ok, but seem to restart to leak today.

If i understand what you mean, bsidb, i need to cut a little bit the leg, so it will be less cotton inside to juice hole in the bottom of the thank, and to make the soulder more straight to go directly in the juice hole, then it will be less pointed up?

Thank again, i think i will finish to understand and make a thing working, it go better from one time to another

not less cotton in the juice hole , same amount, but shorten the legs and tuck the shoulders in so they don't over hang the outside of the whole base touching the inside of chamber when screwed together ( inside the threads)
