WIP DNA20 Compact 18650 Mod

[mamu]

It's the save 5 bucks feature

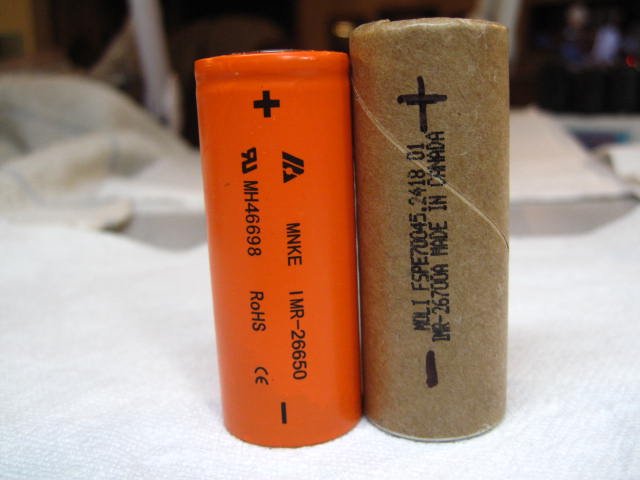

MOLI IMR-26700A

I wonder if Efest 26650 IMR @ 20A would hold up better to the current drain than the MNKE 26650 @ 20A? http://www.jEfest IMR 26650 - 3500mAh

Want to do some testing for me bap?



[retird]

http://www.molicel.com/ca/products.html

Look under high power cells....

http://www.molicel.com/hq/download/DM/DM_IBR26700A-80053.pdf



[mamu]

Molicel puts out this notice for their 26700A batt... maybe the reason for the generic wrap... dunno

Notice to Readers - In order to ensure a safe battery pack, the use of a properly designed safety circuit is essential. MOLICEL® lithium-ion cells are not sold as "bare cells" to consumers. The cells are required to be assembled into battery packs by authorized pack assemblers. Authorized pack assemblers have knowledge of safe lithium-ion pack and circuitry design and employ proper assembly techniques.



[rexet]

Such a nice design bapgood ! Tiny portable mod, with powerfull DNA20, removable 18650 battery... this got everything!
I'm just a bit curious: do you plan to sell it when it will be done or only for personnal use ?



[bapgood]

Such a nice design bapgood ! Tiny portable mod, with powerfull DNA20, removable 18650 battery... this got everything!
I'm just a bit curious: do you plan to sell it when it will be done or only for personnal use ?

Thanks!

Actually it's a 26650 battery

I have thought about making these to sell, but I don't know if it is for me. If I did it wouldn't be for a while for a few reasons.



[bapgood]

It's the save 5 bucks feature

MOLI IMR-26700A

I wonder if Efest 26650 IMR @ 20A would hold up better to the current drain than the MNKE 26650 @ 20A? http://www.jEfest IMR 26650 - 3500mAh

Want to do some testing for me bap?

Not from the site, that's for sure!!!!

Did you check shipping OMG!!!

RTD had some other options....but IDK what to think

Batteries : Efest IMR 26650 3000mAh

Batteries : IMR 26650 3500mAh 3.7V



[rexet]

Thanks!

Actually it's a 26650 battery

I have thought about making these to sell, but I don't know if it is for me. If I did it wouldn't be for a while for a few reasons.

Oups, yes 26650 sorry !
I'm quite sure this mod would have a lot of fans if you would sell it !



[bapgood]

Oups, yes 26650 sorry !
I'm quite sure this mod would have a lot of fans if you would sell it !

Actually I'm not sure which one you were referring to....since this is the 18650 thread (I have a 26650 in here then started a separate thread....and I was thinking this was the 26650 thread)



[rexet]

You're confusing me

I was talking about this prototype:

So I guess this is the 18350 !
This mod is the perfect combination between compact size, nice battery life (a 18650 is enough for most 90% of vapers I would say) and vaping power (DNA20). Make it in light aluminium and you've got a damn good mod !



[bapgood]

I'm good at confusing others as well as my self

Here is the 26650 version..pretty much the same dimensions except the width at the battery portion.

You're confusing me

I was talking about this prototype:

So I guess this is the 18350 !
This mod is the perfect combination between compact size, nice battery life (a 18650 is enough for most 90% of vapers I would say) and vaping power (DNA20). Make it in light aluminium and you've got a damn good mod !



[rexet]

Oh ok, I didn't see the 26650 version. Just a bit big for my taste, less universal.
The 18650 is near perfect. I would make it with the fire swith on the top I think... I would be able to build anything



[mamu]

update for you, bap, on the MOLI IMR-26700A batt.

Both I bought cut out at 3.52v. No glitches or hang-ups from full voltage to cut off voltage vaping at 15 watts. woohoo!!

They're 5mm longer (70mm vs 65mm) than the MNKE batts, same width (26mm), and fit aok in Sam...



[bapgood]

update for you, bap, on the MOLI IMR-26700A batt.

Both I bought cut out at 3.52v. No glitches or hang-ups from full voltage to cut off voltage vaping at 15 watts. woohoo!!

They're 5mm longer (70mm vs 65mm) than the MNKE batts, same width (26mm), and fit aok in Sam...

That is Awesome!!! I have two Moli coming as well as an efest to try.

BTW....have you cycled your MNKE a few times and tried them again? I was amazed at the performance I was getting out of them the other day after I had used the MNKE for a few cycles in low wattage vaping and then went to a 16w genesis setup and it was going strong further down on the battery indicator than I had remembered. When I tested under load the MNKE was now dropping just under .2v under load (1.2 ohm coil, 16 watt), battery voltage was 3.6v off load.



[bapgood]

Well after way to long a new all machined design is off to the machine shop.

hoping everything turns out ok



[bapgood]

Had to make a small change....pretty much complete redesign ....Just glad its a friend helping me out

But besides the shell not quite being one piece, I like it more. The electronics installation will be much easier.

If it turns out....The main body and buttons will be hard coat anodized 7075 aluminum, the bottom section and battery plug will be stainless (anti tip low cg and heft ), the top 510 is a Zenisis Z2 adapter (but I think some hybrid attys are in store).

Back to waiting and hoping!



[Stoneface]



[Semi Reduction]

Beautiful work mate.
I'd kill for one in 18500 size. I reckon you'd sell plenty too



[rayboy55]

Had to make a small change....pretty much complete redesign ....Just glad its a friend helping me out

But besides the shell not quite being one piece, I like it more. The electronics installation will be much easier.

If it turns out....The main body and buttons will be hard coat anodized 7075 aluminum, the bottom section and battery plug will be stainless (anti tip low cg and heft ), the top 510 is a Zenisis Z2 adapter (but I think some hybrid attys are in store).

Back to waiting and hoping!

Is this one using an 18650 battery??? this would be nice for me with a removable 18650 without a charging device to it, just change the battery when done!!



[rocky111]

good thing i saw this before i bought my first dna 20 mod!!

@bapgood- when are u planning to release x1 please



[SAX]

X1 me too OUTSTANDING JOB!
