They work great. When you get it you will note there is an allen wrench included. The first thing to do is to adjust the collar attached to the 510 on the inside to ensure the best conductivity with the switch.

Loosen the collar.
Press and hold the fire button.
Adjust the collar as needed and tighten down.

Do I need to say not to do this with batteries installed? :p

  • Like
Reactions: Kevo333

Kevo333

Senior Member
Sep 16, 2014
72
20
United States
They work great. When you get it you will note there is an allen wrench included. The first thing to do is to adjust the collar attached to the 510 on the inside to ensure the best conductivity with the switch.

Loosen the collar.
Press and hold the fire button.
Adjust the collar as needed and tighten down.

Do I need to say not to do this with batteries installed? [emoji14]
Awesome, thanks for the heads up. People that need to be reminded of such things as removing batteries have no business owning any mechanical mod lmao[emoji18] [emoji106]


duc916

Super Member
ECF Veteran
Jul 10, 2012
806
729
Nor Cal
I'd avoid the ver. 1 and get the V2.... better switch design that won't arc.

Cigreen ABS V2 Box Mod $48.99 - VividSmoke.com

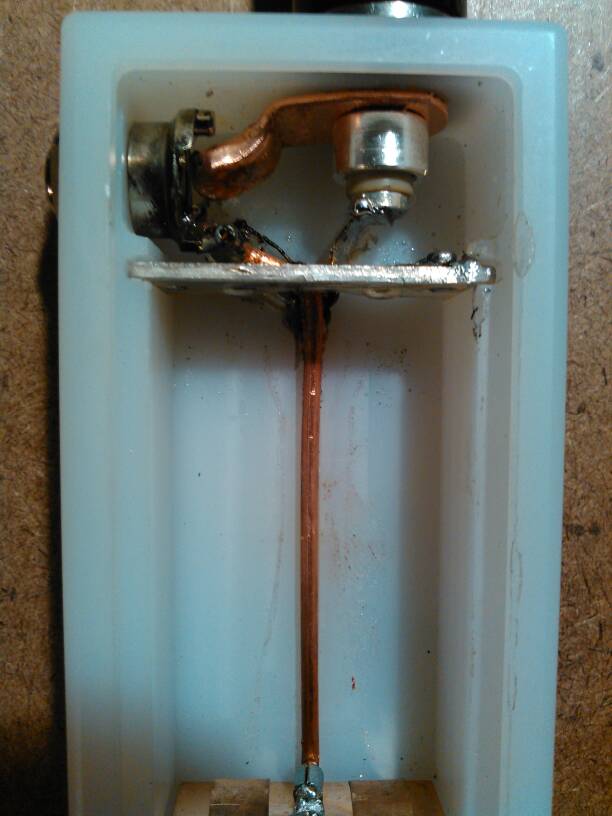

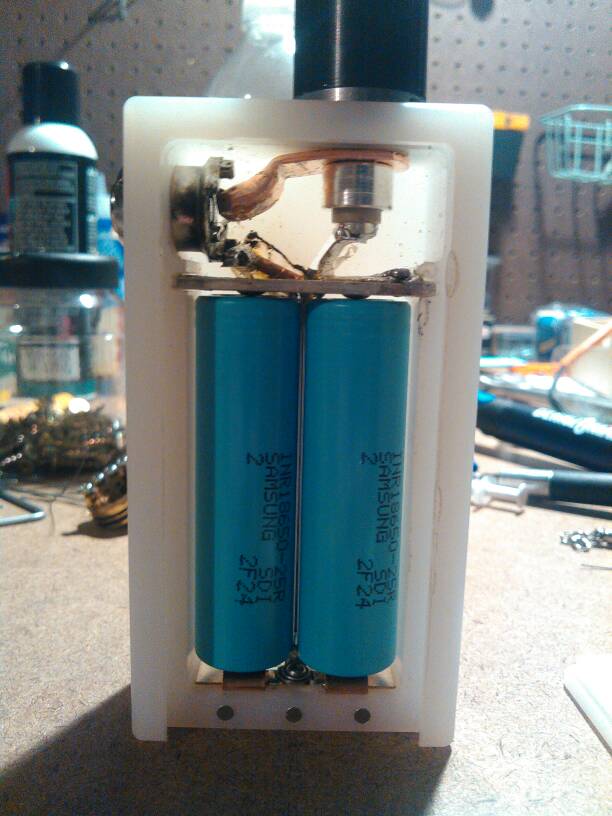

Note the silver plated, contoured strap, with a generous coating of antioxidant grease in the V2 switch below... The V1 just pushes a flat switch against a round 510 base, so the contact area is tiny and more likely to arc.

cigreen_abs_v2-jpg.421297

Last edited:
  • Like
Reactions: Kevo333

Kevo333

Senior Member
Sep 16, 2014
72
20
United States
I'd avoid the ver. 1 and get the V2.... better switch design that won't arc.

Cigreen ABS V2 Box Mod $48.99 - VividSmoke.com


Note the silver plated, contoured strap, with a generous coating of antioxidant grease in the V2 switch below... The V1 just pushes a flat switch against a round 510 base, so the contact area is tiny and more likely to arc.

cigreen_abs_v2-jpg.421297
How about the V3?
