Help me with features/interface development for Joyetech FW ^_^

[BetterJoy]

Hey! I am working on custom FW for joyetech devices with large screen (64x128). It called like my nick.

Now it looks like this (some screens)

I think to do something like this

It's feature that I want to make
-Regulated source of energy mode - it's not just powerbank, it can use any voltage/wattage/TC in the end or connect some devices
-Puff detection - in this mode you do not need press fire button, all you need is start to puff
-Flashlight mode
-Remember last time when battery changes (keep system time)
-Swap Fire to +- button - for stealth vaping (Fire could be quite loud) or if you Fire button is halfbroken

It' realized features
-Battery protection (charging will be stoped at maxtemperature-21C)
-A LOT of interface changing, some of them still not stable, but we work on it
-Better TC screen (screen refreshes 10 times per second, not 2)
-Less time for some reaction. You know Drag with 0.025s fire delay? We set 0.010 and it works ^_^
-4 level for brightness - 0-33-66-100-0...
-Optimized control
-Fire screen counter changings (it keeps screen alive)


PS: also, UR free to write some code. if you want. You could fork my custom from GitHub



[Kickingthesticks]

I don't know much about coding but, that's allot of numbers on the screen. Can very well confuse a person. I wish you the best of luck. Vape on.



[Coastal Cowboy]

Arctic Fox already does a lot of this on JoyeTech devices and other devices using the JoyeTech chipset.

What would yours do better or differently?



[stols001]

I don't know enough to know if it would be "better" or "different" but perhaps you should tell us a bit more about it... And if you are enjoying the process and getting what *you* need, that's great

Anna



[BetterJoy]

Arctic Fox already does a lot of this on JoyeTech devices and other devices using the JoyeTech chipset.

What would yours do better or differently?

Yeah, this FW is different.

For regular users AF will be great, but NFE team hates some geeky functions what I want and never realize it.

Yep, my FW basics on MyEvic/SurMyEvic, but they are extremly unusable, as for me. For example, I like TC, on MyEvic in TC screen refresh 2 time in second and looks extremly laggy.

AF have more informative screen than ME, but my interface is more informative than AF's and has larger screen.

Also, mine support multiclick action on same key combos by controlling duration, 3-key combos, flashlight mode and some optimizations.

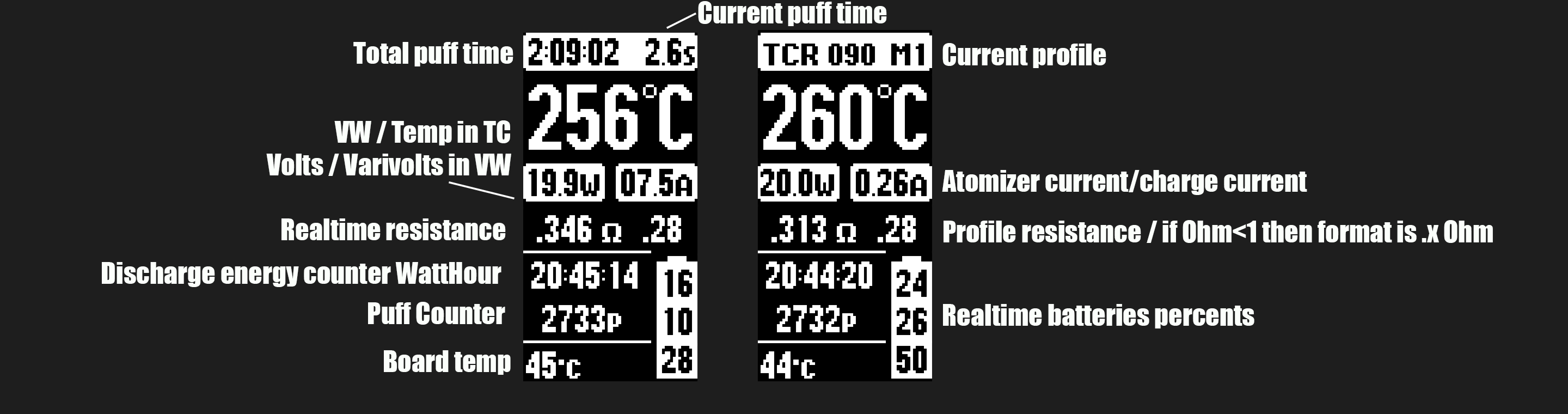

Some main screen somparing
BetterJoy/SME/AF

Now I wanna make something like this



[BetterJoy]

Also mine have online FW updater and everything stores in github ^_^, AF is closed-source FW, even it's a fork of open project (myevic). There is too many changes.



[BetterJoy]

I don't know enough to know if it would be "better" or "different" but perhaps you should tell us a bit more about it... And if you are enjoying the process and getting what *you* need, that's great

Anna

I can't say a lot that it's very nice process. It is really a lot of work and time - for me, coz I am not programmer. But I want some features what AF never or mostly never make. This project needs help, especially with code. //last release is unstable, need to investigate



[BetterJoy]

Anyway, now it's stable

Current release
Now it looks like

Also, it has too much improvements )
