Too many ohms

[Estima72]

Hello. I've been vaping for five years and am reasonably competent at building my own coils. I use a kangertech mini subox and regularly install 26 gauge twisted kanthal wire. I've recently ordered a new tank. Now I've tried many builds and coils on this new tank and whatever I use, including using decently working coils from other bases, it always runs at 9.9 ohms on this base whereas they'll run at 0.3 ohms on everything else. It worked fine for a week but whatever I do now, anything I put in to this base runs at 9.9 ohms and doesn't run the 0.3 ohms I desire. Any ideas?



[3mg Meniere]

9.9 Ω means there is no connection. Given your knowledge base, it might be best to set it aside until someone else can trouble-shoot it for you. You might do as well tossing it as defective.



[Estima72]

Thanks. I had a feeling that this might be the case.



[Bunnykiller]

sounds like the attys 510 + post isnt making contact with the mods + post.....



[BrotherBob]

Welcome and glad you joined.
If in the USA:
KangerTech US--Atlanta, GA--888-799-1988
Hours of Operation:
Mo-Fr: 9:00am-5:30pm EST
Contact - KangerTech US



[Continuity]

If it's the RBA base you're building on (rather than rebuilding the SOCC heads or whatever the 'disposable' heads are called), then it's quite common for the pin in the bottom of it to become loose, making it have no connection (which is what the 9.9Ohms readout means).

You can tighten up the bottom pin by putting something like a thin screwdriver through the holes and levering it round to tighten it.



[Estima72]

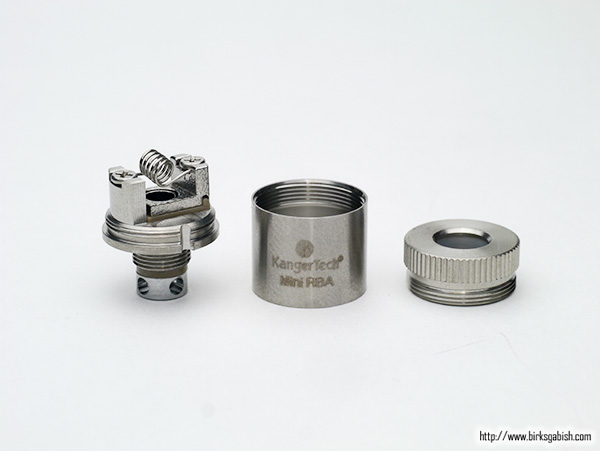

It's the bit that screws in to the 510 thread on the mod box that has the problem. So in the photo you've shown, it's the part on the far left is screwed in to that seems to be at fault



[Continuity]

So, you think it's the *threads* on the RBA that are at fault? Why - are they loose, or crunchy - don't feel like they're making a good connection or what?

You should still try and tighten the bottom pin with the holes in it in that part, as I know from my own experience that they are prone to coming loose - it can't hurt to try...



[Estima72]

Just tried swapping the very bottom pin that pushes out the bottom. That doesn't solve anything. I'll keep fiddling. Thanks for the help so far.
