ULRA - UltraLowResistanceAtomizer - Final proto vidéo - 1,5ml/7min

[B-Rad_The_Mad_Vapr]

I'd be interested in one of these. I'll have to keep an eye on this thread



[pailpoe]

I will receive my PCB and mechanical proto in mid January.
The first feedback of betatester are very good.
This atomizer works between 6w to 24w with a 18650 LifePO4.
The configuration menu :
=> For enter in config mode, pressed 3 times the switch button (auto exit after 30s)
=> For change Menu ( 1,2,.,6,1,.), short pressed switch button
=> For enter in Menu, long pressed switch button
=> For change config menu (Menu1: 1,2,.,10,1,.), short pressed switch button
=> For save, long pressed switch button
=> For exit, pressed 3 times the switch button.

================================================== =
=> 1 : Menu1 : Power adjust
==> 1 : Level 1 (6w) (default)
==> 2 : Level 2 (8w)
==> 3 : Level 3 (10w)
==> 4 : Level 4 (12w)
==> 5 : Level 5 (14w)
==> 6 : Level 6 (16w)
==> 7 : Level 7 (18w)
==> 8 : Level 8 (20w)
==> 9 : Level 9 (22w)
==> 10: Level 10 (24w)
=> 2 : Menu2 : Led Display Adjust
==> 1 : Normal (default)
==> 2 : Off
==> 3 : Animation mode
=> 3 : Menu3 : Default mode
==> All value reset to default value when button pressed (exit config)
=> 4 : Menu4 : Automatic Mode Calibration with pressure sensor.
==> Drawn up to determine the maximum power levek and pressed the button
=> 5 : Menu5 : AutoLock configuration
==> 1 : AutoLock Off (default)
==> 2 : Autolock 1 min
==> 3 : Autolock 2 min
==> 4 : Autolock 5 min
==> 5 : Autolock 10 min
==> 6 : Autolock 30 min
=> 6 : Menu6 : Vapotage Max time
==> 1 : Time Off (default)
==> 2 : Time 5s
==> 3 : Time 8s
==> 4 : Time 10s
==> 5 : Time 15s

Sorry in french :



[peaceoffcake]

Nice work but ... to complicated for me



[pailpoe]

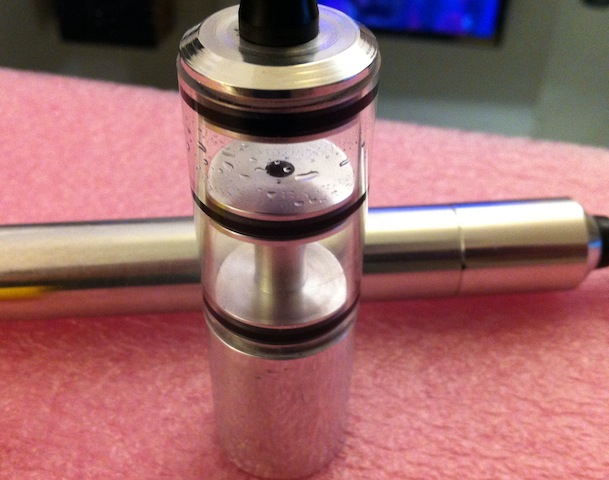

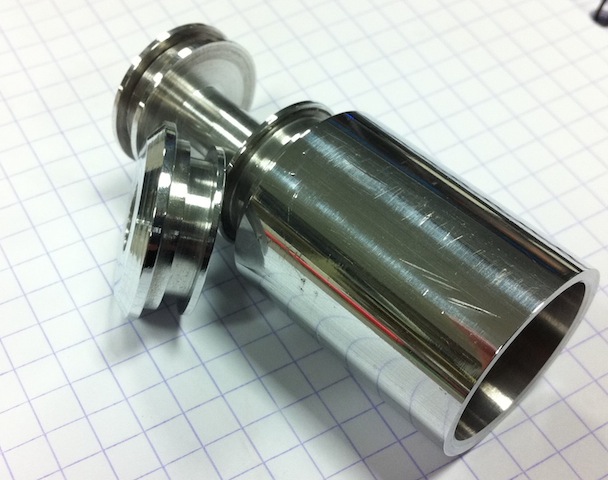

I just get two mechanical parts made by a friend.

I have a bit of drilling to finish these parts.



[asdaq]

Looks good but I hope he makes more for the battery



[pailpoe]

Yes of course .

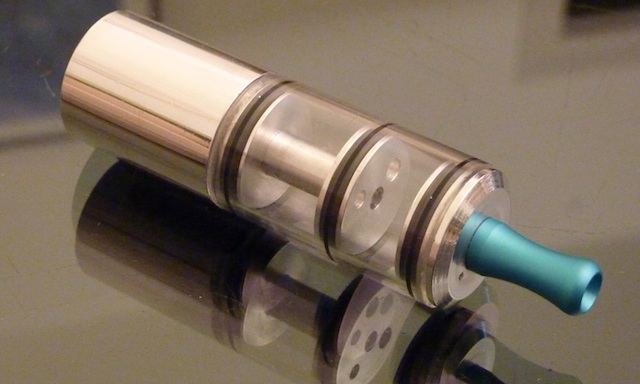

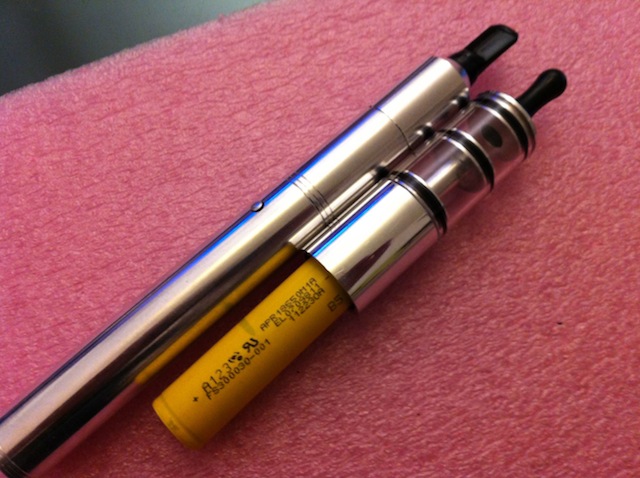

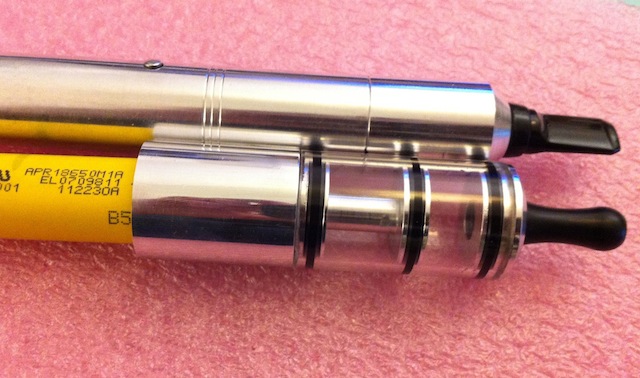

Total lenght is between 135 and 140mm (without drip tip).
I will receive my pcb in one weeks.



[peaceoffcake]

That's real beauty. Is that inox? Bulli is from aluminium as I know, and every single scratch will see on aluminium.



[pailpoe]

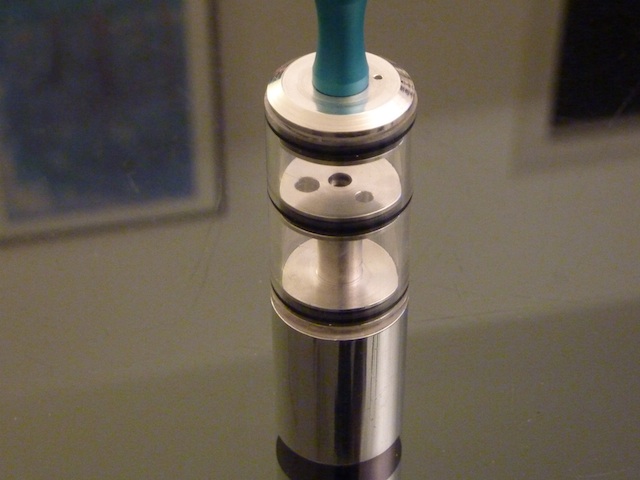

No, it's just aluminium (AU4G) . I quickly polished.



[peaceoffcake]

No, it's just aluminium (AU4G) . I quickly polished.

Oh, its real good polished.



[pailpoe]

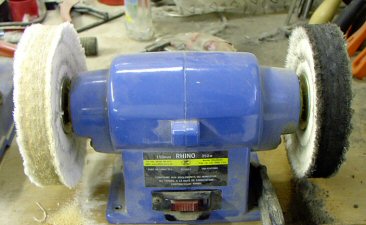

It's very easy, in 2 min.



[benjayman2]

I would love to own one of these. Great work



[Brutus Buckeye]

Very interested in this as well, nice new ideas!



[Steve414]

Dude that's insane......



[pailpoe]

Thanks a lot.

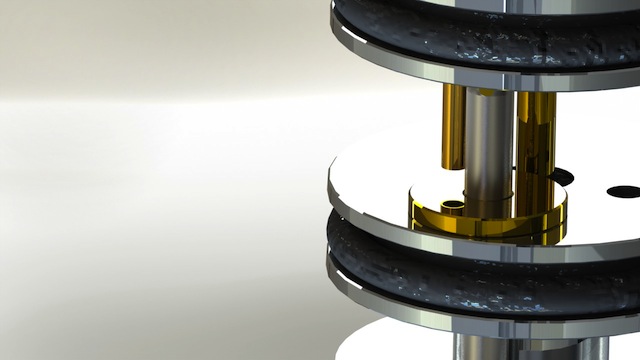

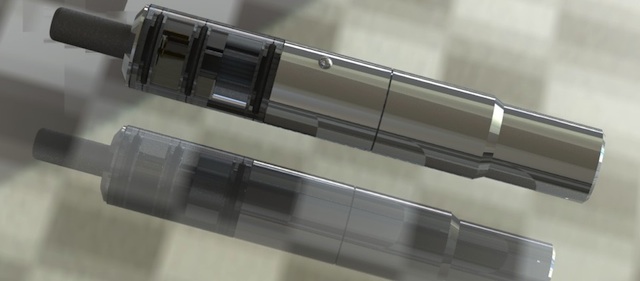

I just finished drawing the batteries tube that I like.

I hope to get it this week.



[Turbo]

Very nice 'pailpoe'. Keep us posted on the co-cop situation. I'm going to be modding one of 'peace's mods real soon. Nice work!



[pailpoe]

Normally, this mod will run in next week. The PCB are manufactured and should be shipped early next week.
I received the O-rings and some drip tip today.



[Rosco]

Analytically awesome



[yemi]

damnnn....so ......ing nice mod...sign me in..i want it tooooooo



[pailpoe]

Thanks a lot.
I will be possible to buy some parts in few weeks
- Mechanical parts
- PCB
- Components
...
We are in the DIY section here.



[IndustrialAction]

Count me in!
