The Rimfire RTA (chuckle) is marketed as a user friendly tank and is apparently leak proof and easy to build.
The top of the tank is removed for filling and sort of locks into place rather than a full screw on tank.
The chamber components have a left hand thread to help avoid accidental unscrewing.

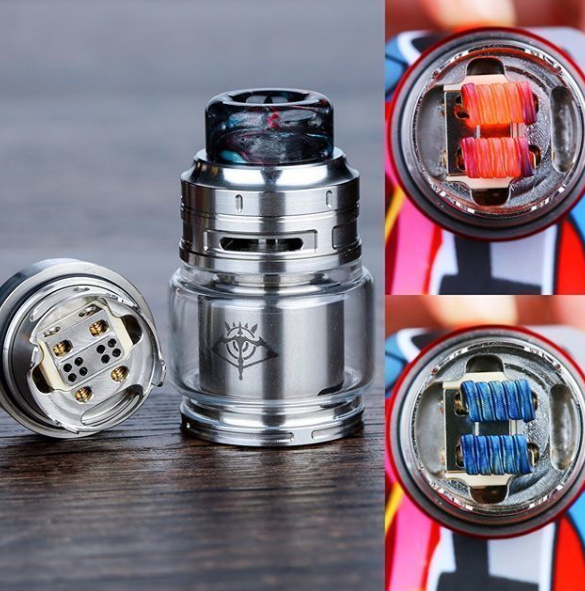

The deck part of the tank will accommodate single or dual coil builds.
The airflow comes in through the top of the tank and is channeled down to the underside of the coils. This should help with leak prevention.
There is a great kit to come with this RTA too including coils and cotton and spare screws.
An 810 resin drip tip is installed as standard and at the base of the tank the 510 connector pin is gold plated to improve conductivity.

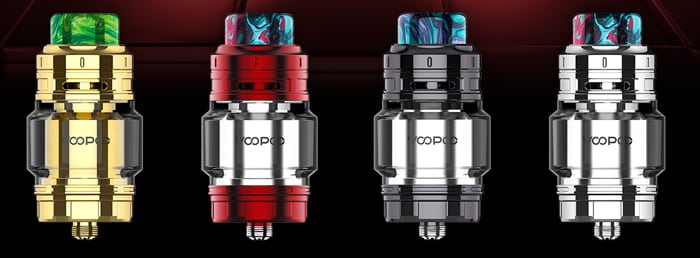

There are 4 colors available – Gold, Red, Black and Silver.
Product Features:
26mm Base Diameter
30mm Maximum Diameter
5ml Tank Capacity
High Capacity Tank Reservoir
Twist-On Top Cap
Two Large Fill Ports
Reverse Threaded Tank Chamber
Stainless Steel Postless Build Deck
Dual Coil Design
Four-Terminal
Side Mounted Hex Screws
2mm by 3mm Each Terminal
Eight 1mm Air Holes on Build Deck
PEEK Insulation
Dual Wicking Ports
9mm by 3.5mm Adjustable Wicking Ports
Dual Adjustable Top Airslots
12mm by 1.75mm Each Airslot
Fully Closeable
9mm Bore 810 Resin Drip Tip
304 Stainless Steel and Glass Construction
Gold Plated 510 Contact
The top of the tank is removed for filling and sort of locks into place rather than a full screw on tank.
The chamber components have a left hand thread to help avoid accidental unscrewing.
The deck part of the tank will accommodate single or dual coil builds.
The airflow comes in through the top of the tank and is channeled down to the underside of the coils. This should help with leak prevention.
There is a great kit to come with this RTA too including coils and cotton and spare screws.
An 810 resin drip tip is installed as standard and at the base of the tank the 510 connector pin is gold plated to improve conductivity.
There are 4 colors available – Gold, Red, Black and Silver.
Product Features:
26mm Base Diameter
30mm Maximum Diameter
5ml Tank Capacity
High Capacity Tank Reservoir
Twist-On Top Cap
Two Large Fill Ports
Reverse Threaded Tank Chamber
Stainless Steel Postless Build Deck
Dual Coil Design
Four-Terminal
Side Mounted Hex Screws
2mm by 3mm Each Terminal
Eight 1mm Air Holes on Build Deck
PEEK Insulation
Dual Wicking Ports
9mm by 3.5mm Adjustable Wicking Ports
Dual Adjustable Top Airslots
12mm by 1.75mm Each Airslot
Fully Closeable
9mm Bore 810 Resin Drip Tip
304 Stainless Steel and Glass Construction
Gold Plated 510 Contact
