Brass Bo-Bomb...

[GitMoe]

Had some time to smash together another mod today. Wanted to use all the 18650 batts I already have so just another basic tube mod. Decided to try my hand at something with a switch this time. You may have seen my Copper Mod which was compression fire. This monster is made entirely out of Brass parts. If you haven't worked with brass then you wouldn't understand how heavy this thing is. All parts were from Home Depot and RadioShack except the battery connector which is a standard 510 from MadVapes. It vapes awesome but I won't be carrying this one around with me. It will sit on my desk and just look awesome. Build cost was under $15. I'll be building a tank mod for it sometime pretty soon. Grabbed the wrong size stoppers today....



[cowfodder]

Nice. I should never have started browsing the modders forum! Now I want to build something.



[asdaq]

Hey! We gotta talk naming convention copyright

Looks massive indeed, a satisfying workout with every vape. Those caps aren't too heavy are they? That is some serious brass.



[cowfodder]

A little patina and some random gauges and that thing would be seriously steam punk.



[GitMoe]

Hey! We gotta talk naming convention copyright

Looks massive indeed, a satisfying workout with every vape. Those caps aren't too heavy are they? That is some serious brass.

Sorry, was Bo-Bomb already taken??? Lol. Thats just what a friend of mine called it when he saw it. We're obviously Nintendo fans....



[GitMoe]

A little patina and some random gauges and that thing would be seriously steam punk.

Man, if only I knew where to get a box of random gauges and SteamPunk parts...

I was already thinking SteamPunk with this one since it will basically just sit on my desk and look awesome. And Ive been dying to bust into my box of weird stuff. A friend of mine repairs A/V equipment and gives me the awesome bits from broken stuff...



[drewk302]

cool brass. Nice work! If its like copper, you will be polishing that all the time, and watch for corrosion.



[nsm484]

This tube looks very awesome. Makes me want to go build one myself!



[GitMoe]

Got a little fancy today. Made a Tank Mod to match this brass tube. Still shooting for SteamPunk and I think Im on track with this tank...

Tank was a bit of a rush job. I got lazy and didn't pull out the drill press so my holes were just a tiny bit off center like maybe 1mm and the rubber rings I made to hold the CE2 tube and base aren't perfect. Both things are easily fixed when I have more time. The off-angle of the tube inside is causing it to leak if you turn it upside down. Since I have NO intention of traveling with this 3lb mod in my pocket Im not worried about it right now. It vapes great and is holding around 15ml of my DIY Caramel Maple Cheesecake juice

Total build cost for Tank was under $5. $7 if you include the CE2 I used inside...



[nsm484]

I love the "cage" look, gives it a whole new look from other tanks.
awesome work on that!



[cowfodder]

I was thinking of building something similar today. Can you list the mats used for the tank? Specifically what did you use for the clear portion? I'm bored and the wife and daughter are out of town, so I want to build something.



[breaktru]

Beautiful touch added. Do you need two hands to hold that



[GitMoe]

I was thinking of building something similar today. Can you list the mats used for the tank? Specifically what did you use for the clear portion? I'm bored and the wife and daughter are out of town, so I want to build something.

Clear portion is 1"OD x 3/4"ID clear vinyl food grade tubing. I got it at Home Depot a long time ago. I use it for my aquariums. A roll of 10 FEET is $15 or close to that. You should be able to get it by the foot for around $2/ft though.

Other Materials:

2 - 3/4" Brass garden hose end caps (These actually just about thread onto this tubing so they hold themselves on)
2 - 15/16" Rubber stoppers (Get smaller stoppers that fit. Cutting these down to fit is too much of a hassle)
1 - CE2 Carto R5

The seals are all internal with the rubber stoppers so the brass caps are just for show and to clean up the tube ends. I'll be getting smaller stoppers or making Delrin seals for a more solid build. I actually just took the tank apart because the carto decided to do die on me. Not really happy. Im not gonna put it back together until I can re-cut/drill the parts I want to. Still this is a good cheap tank build and another option for all the modders...



[GitMoe]

Beautiful touch added. Do you need two hands to hold that

Yeah, its big and HEAVY. With tank its over 6" tall. Really wish I had a food scale to weigh it...

I'm far from done modding this tube. Im working on a ridiculous overly complicated external switch mechanism and adding more SteamPunk bits of course...



[cowfodder]

Thanks gitmo. Was just about to run out the door and this gives me ideas.



[asdaq]

Grand tank there, the tubing really looks like it is metal over clear tubing. Do the stoppers cover all the brass from the caps? Are you serious about the 3 lbs? That brass tube must be like some of the galvanized (?) plumbing stuff we have here.



[GitMoe]

Grand tank there, the tubing really looks like it is metal over clear tubing. Do the stoppers cover all the brass from the caps? Are you serious about the 3 lbs? That brass tube must be like some of the galvanized (?) plumbing stuff we have here.

The brass isn't exposed to juice anywhere otherwise it would corrode quickly and I've have some seriously tainted juice. The tank is sealed with the vinyl tube and the rubber stoppers. Brass caps are just to finish the look and make it aesthetically pleasing....



[WillyB]

Sir Larry will be proud (or ......).

FWIW you can get aluminum pipe nipples to lighten it up. You could then also claim "aircraft aluminum" body.

Amazon.com: Aluminum Pipe Fitting, Nipple, Schedule 40, 3/4" NPT Male X 4" Length: Industrial & Scientific

There are many lengths available if you search.



[GitMoe]

Sir Larry will be proud (or ......).

ICTURE WAS HERE:

FWIW you can get aluminum pipe nipples to lighten it up. You could then also claim "aircraft aluminum" body.

Amazon.com: Aluminum Pipe Fitting, Nipple, Schedule 40, 3/4" NPT Male X 4" Length: Industrial & Scientific

There are many lengths available if you search.

Nice. I've never seen those mods before. Guessing Sir Larry sells them? Its obviously the same parts I like that this one is comically heavy. I might order some of those aluminum tubes for future modding though. Great link. I think its weird that he would grind down the extra threads on the tube instead of cut them like I decided to. My pipe was just too short to trim both ends but now I know what length to get if I wanted to trip both ends...

Checked out VaporMoon.com after I realized you posted Sabre Touch mods. :thanks search box:

Looks like he just lathes down the tube and then polishes everything. Nothing too complicated if you have a lathe which I dont anymore. Plus the touch button of course. I'll sell somebody this one for $99 with the tank... lol



[WillyB]

- Locally Machined In Our Own Shop, In Maryland, USA
- All Handcrafted Per Order
- Fully Tested For 24hrs Prior To Shipping!
- 6061 Aircraft Aluminum
- Solid Brass Detailed Caps

Note how it is 'machined' and the 99¢ Garden Hose caps become 'Solid Brass Detailed Caps'.

There are a number of caps available.

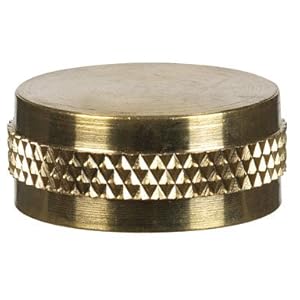

Amazon.com: 10 each: Anderson Garden Hose Cap (ABGHN5): Home Improvement

Here's the original with a 5V TI reg.
