My new 5v mod

[opuscroakus]

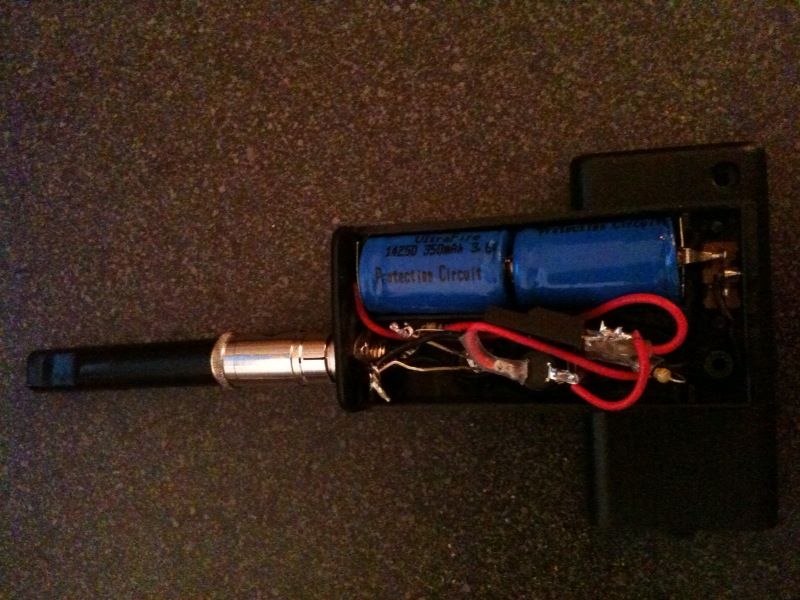

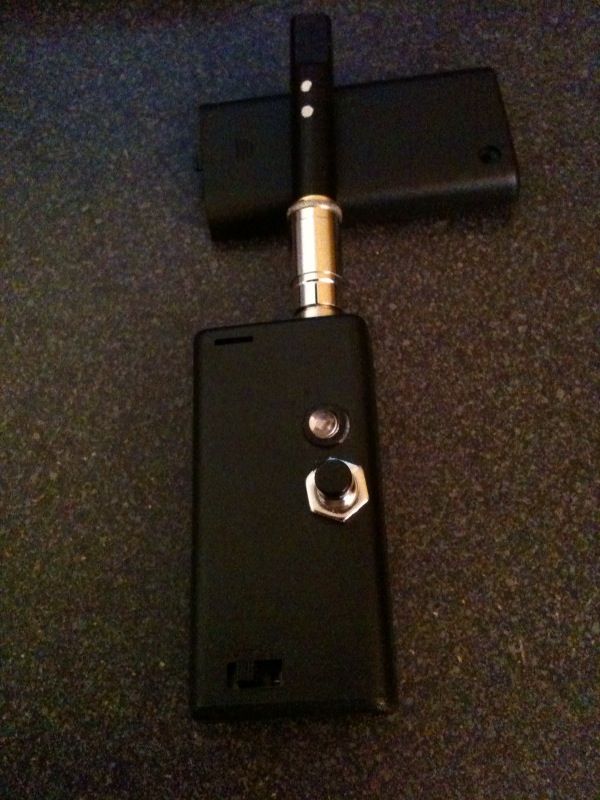

Here is the newest 5v mod I made. This one is using 2 14250 batteries in series with a KA378R05 5v regulator in 2xAA box. Also put in a fast changing LED because I like the light. Parts came from Mark at madvapes. He is really great to do business with.

Please disregard the horrible wiring, I am going to clean it up later.



[nubee]

Sweet mod. Where did you find the 14250 batts?



[opuscroakus]

Sweet mod. Where did you find the 14250 batts?

Madvapes has them. Not sure how long they last, only been using this for about 2 hours.



[antism]

Nice...did you use the control on the reg or leave it open? Can't tell from the pic.



[Jason365]

Cool, great job.

I been meaning to do one like that.



[HippyGirl]

Sweet!

Madvapes is one of my favorite vendors.

So...off to Madvapes yet again!

Sherry



[opuscroakus]

Nice...did you use the control on the reg or leave it open? Can't tell from the pic.

Yes, used the control. Been vaping on the same batteries for almost 8 hours now. Lasting much longer than anticipated. I'm now trying to make the same thing in a single AA flashlight that just happens to have a pushbutton on/off switch on the bottom. Since my soldering skills really suck it is much more difficult, especially trying to mount a 4mm tactile switch in the tube. I've even eliminated the LED for the flashlight one and I'm still having space issues.



[legpro]

Good looking mod keep us posted on the life of those bats. Was gonna order a few but got scared when I saw the mah rating on them



[four2109]

Looks good. Is the box from Madvapes too? It must be longer than most. I had to do some cutting and put my batteries on the side without the switch.



[opuscroakus]

Looks good. Is the box from Madvapes too? It must be longer than most. I had to do some cutting and put my batteries on the side without the switch.

Yep, everything was from Madvapes except for the RCA connector which he didn't carry at the time. I had to remove the plastic pieces that kept the metal tabs for the batteries in place and also cut the spring almost completely off. The batteries fit, but just barely. I just ordered some 1xAA boxes that I am going to try and do into 5v boxes. His 1xAA boxes are unique in that they have a half size channel so I might be able to fit everything in.



[four2109]

I got five hours out of mine today, but I chain vape... I only bought one pair to try so I may get some more. I like 5v in a small mod. I have a wall wart but don't like being tethered.



[tattoo131313]

very nice. I'm wanting to make a 5v box like this too. Do you have any pics of the wiring or could you tell me how the wires get soldered to the regulator?



[Ez Duzit]

very nice. I'm wanting to make a 5v box like this too. Do you have any pics of the wiring or could you tell me how the wires get soldered to the regulator?

If you go to Madvapes and click on the part. The circuit schematic is the last picture in the description.



[doots]

very nice opus.. wish i had the skills.. lol



[four2109]

very nice. I'm wanting to make a 5v box like this too. Do you have any pics of the wiring or could you tell me how the wires get soldered to the regulator?

He has also added a tutorial in his "how to" section for using the board to make soldering easier.
