The Kick 2 in a Reo Grand

[ltrainer]

I received my Kick 2 two days ago and have been vaping on it ever since. Its working very well. I've had zero problems with it. The vapes are consistent almost all the way through battery life. Right before the cut off comes in the vape weakens for the last 3 or 4 vapes. I am vaping an RM2 with a 1.9 ohm coil set at 9 watts. I am getting about 2 ml of juice before a battery change is required. Batteries have come off the Grand with a voltage ranging from 4.23 to 4.4 volts. I am not sure why there is a difference.

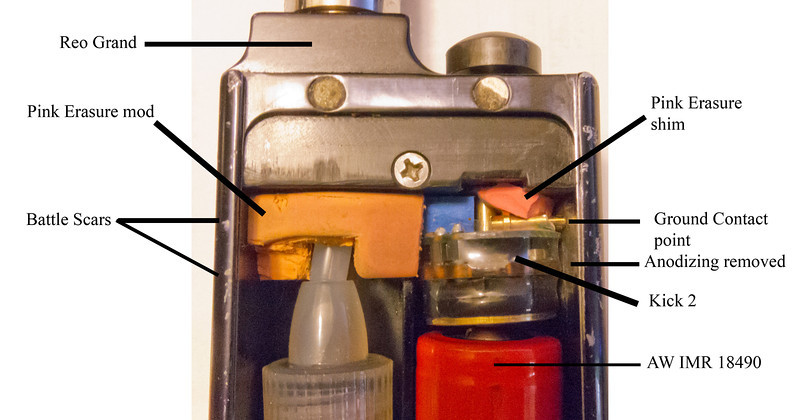

The shim was put in to keep the Kick somewhat level as it tilted quite a bit without it in. The erasure pushes the Kick to right assuring a good negative ground.

As you can see from my photograph its a very neat, clean and tidy looking setup.

Schematics to my setup are available to anyone that maybe interested.



[Crash Moses]

lol...awesome...love the shim. Nice graphic. You need another label for the button. ------> Button.



[KwhyLE]

Thats smaht! I wouldnt have guessed about using an eraser to .... it up after seeing the 3D printed shoe



[MamaTried]

you are the darkzero of pink erasers!



[ltrainer]

Thats smaht! I wouldnt have guessed about using an eraser to .... it up after seeing the 3D printed shoe

I don't think the Kickstand will work with this Kick but I may be wrong. This Kick 2 is shaped somewhat different than the previous one.



[MamaTried]

I don't think the Kickstand will work with this Kick but I may be wrong. This Kick 2 is shaped somewhat different than the previous one.

i bought a bunch of extra kickstands from ponoko to help save fellow Reonauts from paying the outrageous shipping charge. if you want to give one a shot, PM me yr addy and one will be there shortly



[debzcf]

I'm out of the loop on this...what is the point of a Kick?



[ltrainer]

A Kick regulates wattage. You set it for a wattage you like and the Kick keeps that wattage all through out the vape. When the battery reaches a certain level the Kick cuts it off...no more vape.Variable Volt like the VVG regulates voltage, the Kick regulates wattage.



[Crazy Canuck]

I'm out of the loop on this...what is the point of a Kick?

Regulated wattage, regardless of atty resistance. Consistent vape, similar to the VVG, but without stacking batteries.



[debzcf]

Ahhhhh, okay. I don't need one. Thanks.



[ltrainer]

I can now verify that the Kickstand does NOT work with the new Kick 2. Dwallen (Dennis) was kind enough to send me two. Thank you Dennis. The Kick 2 has been rebuilt so the kickstand and Kick 2 will not mate together.



[redeyedancer]

I can now verify that the Kickstand does NOT work with the new Kick 2. Dwallen (Dennis) was kind enough to send me two. Thank you Dennis. The Kick 2 has been rebuilt so the kickstand and Kick 2 will not mate together.

I got mine today I dont need a stand for it . I like the new ground posts very nice . I am thinking about building a 18650 unit that will use this chip or straight 3.7



[Treebeard]

I am thinking about building a 18650 unit that will use this chip or straight 3.7

I'm in.



[MamaTried]

I got mine today I dont need a stand for it . I like the new ground posts very nice . I am thinking about building a 18650 unit that will use this chip or straight 3.7

pick me! pick me!



[ltrainer]

I got mine today I dont need a stand for it . I like the new ground posts very nice . I am thinking about building a 18650 unit that will use this chip or straight 3.7

Robert,

what do you mean by "a straight 3.7."



[whatitstrue]

Robert,

what do you mean by "a straight 3.7."

I think, but i could be wrong... he's talking about a regulated unit that's not adjustable. To give the vape of a fresh 3.7v battery without the voltage drop.



[redeyedancer]

What I mean is if the chip goes just pull the chip out pop in a plug that transforms the mod into a standard 3.7 volt mod . In the mean time the consumer can buy a new chip from the company who makes the chip and never skip a beat . Most importantly for me is I am not responsible for another companies electronics



[ltrainer]

Good solid idea. VW and mechanical.



[NicoHolic]

It will be nice to have a Grand XT (extra tall) for those who want to use an 18650 and Kick 2.

It would be even nicer if this concept went down to an 18490/500 in a Grand and an 18350 in the Mini 2.1 with a removable Delrin Kick 2 holder and an insulated 15mm H x 18 mm W cylindrical spacer to replace the kick when not used.

A pair of those insulated spacers would also let a current Grand owner safely use 18490/500 and 18350s as well (or a kick with an 18350).

Nice post-apocalyptic thing to have on hand.

Just a thought.



[wongster360]

It will be nice to have a Grand XT (extra tall) for those who want to use an 18650 and Kick 2.

It would be even nicer if this concept went down to an 18490/500 in a Grand and an 18350 in the Mini 2.1 with a removable Delrin Kick 2 holder and an insulated 15mm H x 18 mm W cylindrical spacer to replace the kick when not used.

A pair of those insulated spacers would also let a current Grand owner safely use 18490/500 and 18350s as well (or a kick with an 18350).

Nice post-apocalyptic thing to have on hand.

Just a thought.

I wouldn't mind seeing a VV grand retrofitted to use the kick2 instead of its current internals and have it run an 18650. Would that even fit?
