ULTIBOX : Ecig Boost mod with lcd screen , 18650, Constant power. OPEN SOURCE

[pailpoe]

It's a prototype soldered with my hands. With automatic machine ...

Times....
At this times, I don't want to sell this box.
For information, I'm a electronic enginner and I work with a lot of electronic suppliers (100-200K boards / year). You can have my products in your house...



[pailpoe]

No time to work on my board this week. a lot of work for the co-op.

I hope to program a little this weekend.



[pailpoe]

And my orion



[zer0blivion]

Stop teasing us.
Edit: I mean keep teasing us, I love this!



[asdaq]

Very impressive! Curious that you took a mechanical mod and made it electronic, and Peace took the electronic Mini Hybrid and went mechanical with his Katana.



[k3vin]

Marking a spot in this thread. Very nice to say the least.



[WillyB]

Very impressive! Curious that you took a mechanical mod and made it electronic, and Peace took the electronic Mini Hybrid and went mechanical with his Katana.

The mini-hybrid was electronic? I thought it just used a regular manually operated electromechanical switch like most mods out there.

Certainly a step backwards to go from one of the most reliable switches made (Omron snap action) to some home-brew battery basher.


@ pailpoe

I take it your new switch is using an N-channel mosfet?



[Lethalp]

Marking this thread for future ref



[pailpoe]

Some informations about this switch. In first, I choose a micro switch from OMRON (B3U3000P) but I don't like (poor sensation). I change to a other switch from OMRON : B3F6000. It is very pleasant to use, guaranteed to 1000000 cycles, support force of 100g.
It's OK for mount on my board but I design the PCB for the B3U3000 .
I use for power commutation on this board a N Mosfet for International rectifier : IRF7809.
Very Low Rdson = 9 mOhm, High current capability = 17A continuous, ....

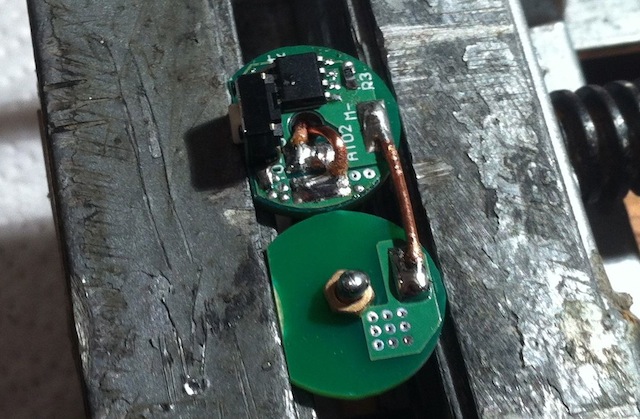

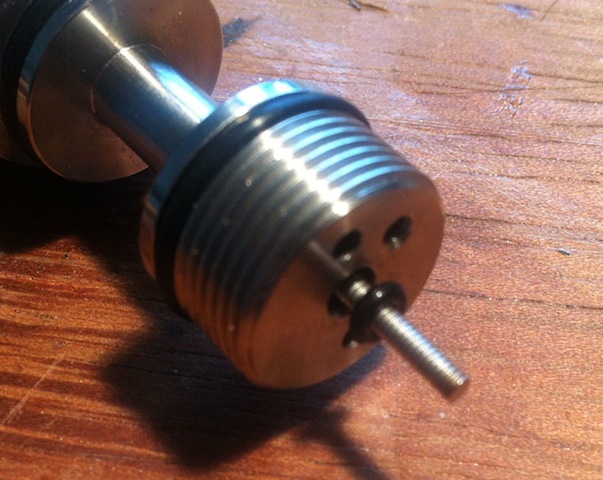

Some pics with the stainless steel screw connection :



[pailpoe]

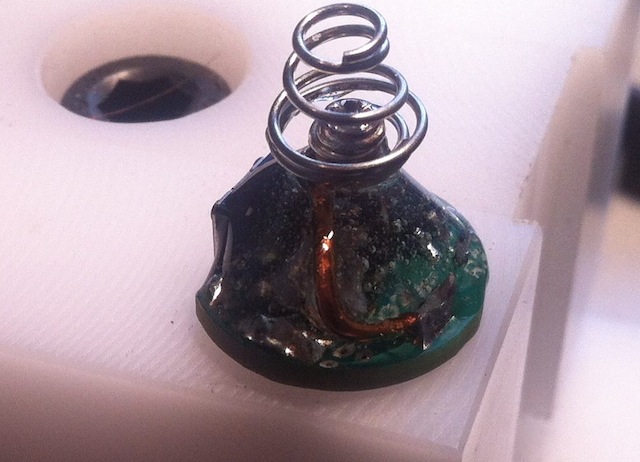

and a config with copper wire connection and top spring pcb :

My co-op is full for my first batch but if some people here are interested... I need to finish the redesign for the new switch and I can restart a PCB production.



[Turbo]

I'd take this mod w/ your switch 'pailpoe', never liked the bottom mechanical one. Will future ones have it I trust?



[pailpoe]

In don't sell this mod. I work only on some updates (electronic switch, connection,...).
Do you have a ORION Turbo ?



[asdaq]

Willy, the mini hybrid uses a 3A Omron D2F without the lever. Quite nice, unless you happen to melt through the case or break off a leg.



[Turbo]

In don't sell this mod. I work only on some updates (electronic switch, connection,...).
Do you have a ORION Turbo ?

No I don't, but would consider one if it didn't have the bottom button and yours



[pailpoe]

Ok, no problems.



[zer0blivion]

Any progress, pailpoe?



[pailpoe]

Sorry, a lot of work on the Orion electronic switch co-op. 35 Parcels to send in 2 Days, some videos,... .
I hope to get back quickly



[QueenofHearts]

Bon Jour Pailpoe,

Just stopped by to say hello... Do ya know what would be the perfect match for my MODULRA? Merci beau coup, mon ami!

Au Revoir,
Queen



[badkarmaiii]

Pailpoe, you are a modding genius!
Have you considered a drop-in board that would use the mechanical switch but keep the intelligence of an electronic switch?
I have asked this before but voltage regulation would be nice...

Thanks,
Lee



[pailpoe]

All it's possible but I work on this board and after... I don't know
I have some ideas for the future...
