ULTIBOX : Ecig Boost mod with lcd screen , 18650, Constant power. OPEN SOURCE

[Lance_Wallen]

I'd be happy with a circuit that was effecient and VV/VW with an analog pot and no display personally. Would this thing be scalable? All i really care about is the base VV circuit that will work on a single battery.



[pailpoe]

23 With screen.



[pailpoe]

I'd be happy with a circuit that was effecient and VV/VW with an analog pot and no display personally. Would this thing be scalable? All i really care about is the base VV circuit that will work on a single battery.

With no screen yes but the product is different, and need to redesign the board.
On this board,i have a lot of feature:
- programmable boost converter
- electronic switch
- current sensing
- battery charger With USB
- display
- sound
- 3 tact switch
- various voltage sensing.

All is possible...

I Begin to work on a small board for put on a small mod ( orion, 16340) In 2 weeks.



[eyebrook]

Looking Good pailpoe



[Milianom]

I'm anxious, the circuitry sounds great!



[pailpoe]

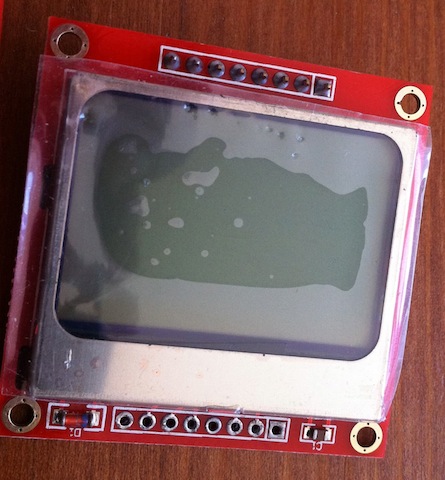

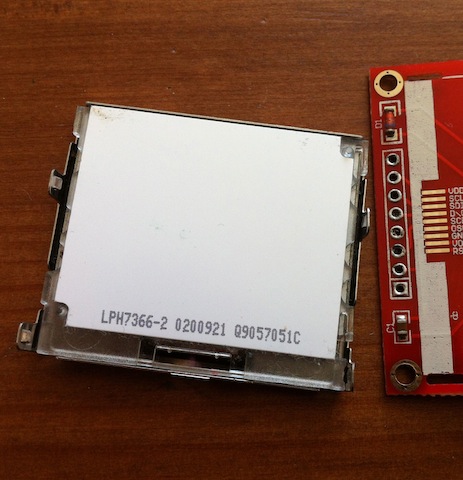

I just receive the screens (Nokia 5110, LPH7366) from china after 20 days ...
All is OK, I'm very happy.



[emonty]

Wow, this is going really fast, I can see it already in my hands ;-)!!!!



[pailpoe]

I got a driver for this display on the net...



[asdaq]

Oooh, baby! With all these features a screen is nice to have to keep it all straight and increase usability, even if it does add a bit of bulk.



[pseudus]

I am in awe!



[Cool_Breeze]

23 With screen.

Will a cutout in the enclosure or lid allow for the screen? In that case will the screen need additional projection?



[jrm850]

Hey Pailpoe guess what I found this morning... A 4 wire touchscreen small enough to fit that Nokia display. Do you have 2 adc channels and two I/O pins free?
EZscreen-Touchscreen Kits for LCD monitors laptop and palmtop displays

I've become a huge fan of the touchscreens lately. Need another button? No problem, I'll just draw one.



[pailpoe]

Oooh, baby! With all these features a screen is nice to have to keep it all straight and increase usability, even if it does add a bit of bulk.

Yes, the screen is essential for display all the values (Power,Resistance,voltage,...).

Hey Pailpoe guess what I found this morning... A 4 wire touchscreen small enough to fit that Nokia display. Do you have 2 adc channels and two I/O pins free?

Only 2 IO free.



[zer0blivion]

I am really excited about this project. Keep up the amazing work, Palipoe!



[pailpoe]

Thank you



[jimbalny]

Yeuhh! Go pailpoe! This is a cool-... project u got going here! This would look really nice in a small wooden box enclosure, maybe even with wood buttons too would be really cool and classic looking.



[asdaq]

Wood could be good, maybe a variation of these:

magnetic closure, leather hinged, just with the sides filled in and sloped proper...



[Tennovan]

I've been following this for a couple weeks but wanted to say... this is some amazing work. I am excited to see how this turns out.



[pailpoe]

Good idea. Why not ?



[raceengine]

Wood could be good, maybe a variation of these:

magnetic closure, leather hinged, just with the sides filled in and sloped proper...

That would be a really gorgeous mod. And a gold button to top it off

btw... That's some impressive EE work you've done pailpoe. another
