Zeus X rat noob help please

Discussion in 'New Members Forum' started by Srobo17, Aug 30, 2019.

Tags:
Image has been removed.
URL has been removed.
Email address has been removed.
Media has been removed.
  1. Srobo17

    Srobo17 New Member

    Aug 30, 2019
    Hi guys newbie here after some help!

    I’ve been vaping for 3 years now but until now always used prebuilt throwaway coils, recently the uwell crown 3

    Been persuaded to try rta so purchased the Zeus x rta sitting in my old beaten smok g priv and I just can’t seem to get it working properly!

    I’m using firebolt cotton and steam shark fused Clapton 32ga coils running at 0.33 ohms at 80watts

    I’ve watched endless videos on YouTube but every time I build it, the thing spits in my mouth, tastes of absolutely nothing and I absolutely hate it but I’m determined to get it working! Any help at all you guys can give me would be appreciated.

    Do I need better coils/cotton or a new mod? Or am I just pish at building?

    Thanks guys

    • Like Like x 3
  2. GOMuniEsq

    GOMuniEsq Self-Proclaimed Member ECF Veteran

    Supporting member
    Aug 25, 2012
    Alberta, Canada
    Is that 0.33Ω x2, together 0.16Ω? Otherwise your wattage is too high.
    Spitback and popping happen when you've got too much juice in your coil because it's not wicked densely enough. You need to to keep practicing. And be sure your wicking descends all the way down the juice channels to form a good plug, or else you'll get spitback because of flooding.

    Assuming those are 3.0mm diameter coils, you'll want to use enough cotton that it stays put but can also be tugged back and forth without deforming the coils. Then comb out the ends a bit so they fit down the juice channels while remaining pliant when poked.

    • Like x 4
    • Agree x 2
    • Winner x 1
    • Informative x 1
    • Useful x 1
  3. Srobo17

    Srobo17 New Member

    Aug 30, 2019
    Thanks for your reply

    I assume it’s the total ohms I’m getting that from the readout on my smok, what wattage should it be at? I based it off the uwell crown I used to use and just guessed it would be the same!

    I’ve no idea what mm the coils are but the cotton fits very tightly and it moves the coils when I tug at the cotton, maybe I need to get bigger coils??

    I’ll try what you said about making sure the cotton is plugged all the way down, I did thin it out last time but maybe I did too much?

    • Optimistic Optimistic x 2
    • Like Like x 1
  4. Beamslider

    Beamslider Vaping Master Verified Member ECF Veteran

    May 29, 2017
    San Francisco
    Start with something simple by rolling some of your own single wire coils.

    6 or 7 wrap at 2.5 mm with SS 316L 26 AWG will get you about 0.4 or 0.45 ohm single coil. 2 of these coils will get you around 0.2 ohm and produce a lot of vapor at much lower than 80 watts...around 32 to 40 watts.

    You can also get a single coil in the Zeus X if you wrap a 4.5 mm inner core and install it diagonally across the deck.

    Wick still needs to be tight in coil and the juice hole needs to be full of the cotton.

    • Like Like x 2
    • Useful Useful x 2
  5. bombastinator

    bombastinator ECF Guru Verified Member ECF Veteran

    Sep 12, 2010
    MN USA
    Your readout should be accurate unless there’s a problem with the voltage checking system in the mod. It’s a SMOK though so that could happen
    or use a bit less cotton.
    Wicking RTAs can be touchy. Depending on the atty there can be less than a millimeter of slop between a wick being too long and too short. It varies by atty model.

    Have you watched any wicking videos for your particular atty? They help a lot.

    As to wattage, may I suggest starting at a very low wattage and bumping it up by 5 watts or so at a time till you get a vape you like out of it, then refine it by 1s and 2s

    • Useful Useful x 2
    • Like Like x 1
    • Informative Informative x 1
  6. GOMuniEsq

    GOMuniEsq Self-Proclaimed Member ECF Veteran

    Supporting member
    Aug 25, 2012
    Alberta, Canada
    Yeah if you're reading 0.33Ω from the Smok that means your coils are 0.66Ω each. Does that number match the rating on the package? If not you need to do a burn in and work out the hot spots. This video demonstrates in detail, particularly starting from the 5 minute mark:

    For comparison, I run about the biggest coils that the Zeus X can handle: 2x0.25Ω = 0.13Ω, at 100W, so you'd probably want to start somewhere below 50W. Otherwise you'll be scorching your cotton and having to change it daily.

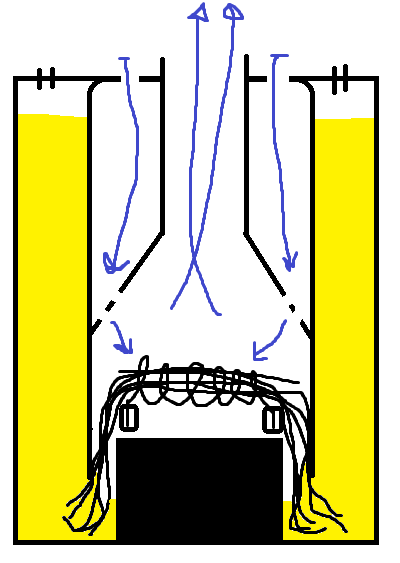

    It helps if you have an idea how the RTA functions. Here's a rough diagram of the internals. It's intended to show that gravity will pull too much juice into the coil unless the wick forms a proper seal:
    As long as the cotton goes down the juice flow holes to the bottom and is dense enough that you can't poke right through it with your ceramic tweezers, that should do, since it expands a bit when moistened.

    • Informative Informative x 2
    • Like Like x 1
    • Useful Useful x 1
  7. Jebbn

    Jebbn Ultra Member ECF Veteran

    Apr 2, 2018
    Australia
    if all else fails,

    • Like Like x 3
  8. somdcomputerguy

    somdcomputerguy vaper dedicato Verified Member ECF Veteran

    Supporting member
    Welcome to ECF, Srobo17.

    • Like Like x 2
  9. BrotherBob

    BrotherBob ECF Guru ECF Veteran

    Dec 24, 2014
    Sunnyvale,CA,USA
    • Like Like x 2
  10. stols001

    stols001 Mistress of the Dark Nicotinic Arts Verified Member ECF Veteran

    Supporting member
    May 30, 2017
    Tucson, AZ
    Welcome. I am going to suggest trying rayon as a wicking material. I had a ton more success with it than cotton frankly although I think the advice you are getting to simplify is TOTALLY spot on. This is probably not the easiest vape to start building on.

    Good luck and welcome :)

    Anna

    • Agree Agree x 4
    • Like Like x 1
  11. vaper1960

    vaper1960 Ultra Member

    Apr 24, 2019
    California, US
    I'm just getting into all this building stuff myself. Just wanted to tell you there are many clearance deals on RTAs if you have issues with your current one. Also, fasttech has great selection of coils and great prices!

    • Informative Informative x 1
  12. Diver9543

    Diver9543 Ultra Member ECF Veteran

    Feb 26, 2015
    Oklahoma City, OK, USA
    Hello and welcome to ECF. You have been given some great pointers for coil wicking so I would like to just say, "Hi".

    • Like Like x 1
    • Agree Agree x 1
  13. UncleEddy

    UncleEddy Full Member

    Aug 2, 2019
    I have the exact same issue.. I’ve tried so many different wicking styles, and today I’ve received handmade alien clapton coils. I’ve moved them higher and further to the airflow then my previous coils, zero improvement at all...

    Supplies:

    Probear Alien clapton 3mm n80 0.15 in dual mode

    Firebolt Cotton from Vapefly


    Currently vaping around 50W.
