Home made atty

[Carlos49]

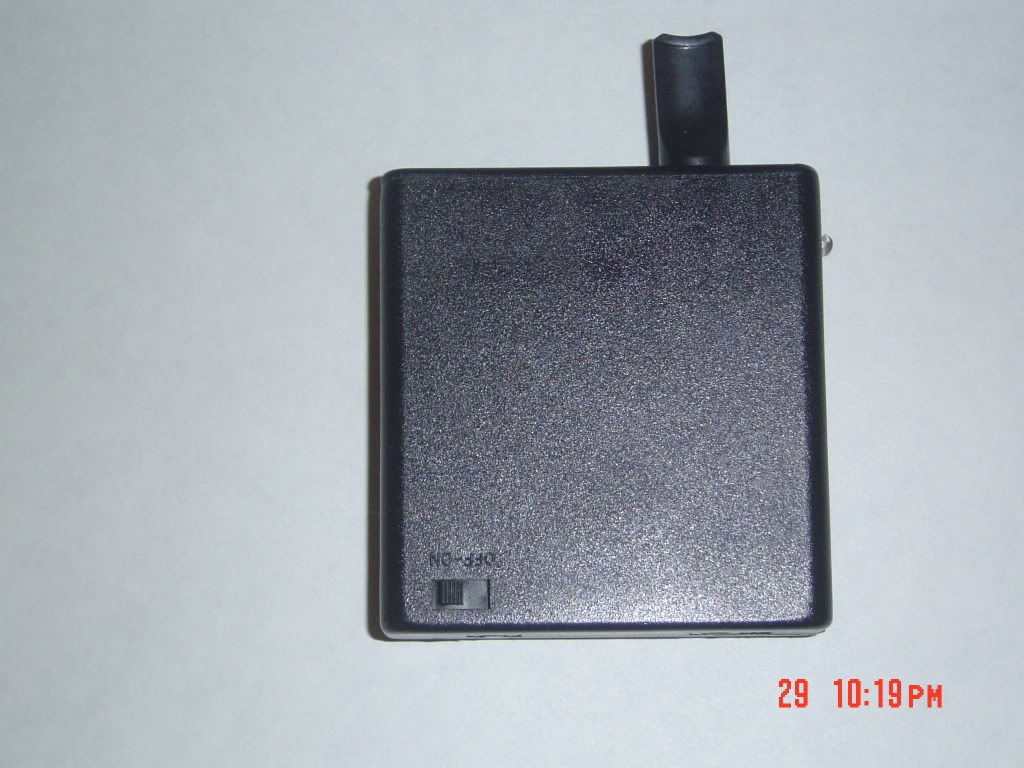

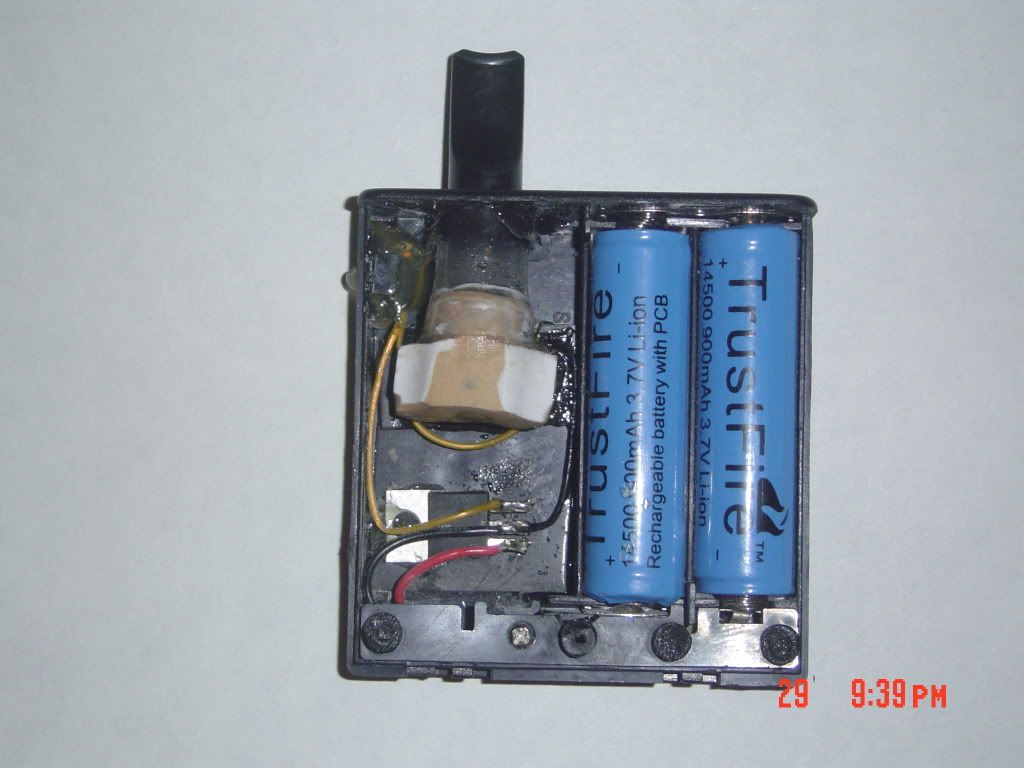

First I would like to say that this just a test unit so it's kinda sloppy. I have this same concept scaled down to fit in the shell of an 801 atty, so it can be screwed right on to a stock battery or RCA adapters. I'm almost done with the wicking attachment so it will take an 801 cart also. This unit here is made for dipping and I can put about 7-10 drops in and vape for a while. It put out good vapor and flavor The unit is sealed so it will not get into the compartment. This unit is a 5v unit but my others are working at the normal 3.7v. I have taken this unit up to 7v and it still held together for 1 month of , steady, use/abuse. But I found that at the higher voltage it just lost too much flavor and was drinking too much juice. Still having a few issues to work out but I'm looking at 1 month and it should be complete, just waiting on parts from China. I also have a home/ table top model, like a hooka, That I'll have pics up soon
Like I said it's not much but it's a start!! I'm also going to put these pics in my album along with some of my other box mods.



[Stormynights]

First I would like to say that this just a test unit so it's kinda sloppy. I have this same concept scaled down to fit in the shell of an 801 atty, so it can be screwed right on to a stock battery or RCA adapters. I'm almost done with the wicking attachment so it will take an 801 cart also. This unit here is made for dipping and I can put about 7-10 drops in and vape for a while. It put out good vapor and flavor The unit is sealed so it will not get into the compartment. This unit is a 5v unit but my others are working at the normal 3.7v. I have taken this unit up to 7v and it still held together for 1 month of , steady, use/abuse. But I found that at the higher voltage it just lost too much flavor and was drinking too much juice. Still having a few issues to work out but I'm looking at 1 month and it should be complete, just waiting on parts from China. I also have a home/ table top model, like a hooka, That I'll have pics up soon
Like I said it's not much but it's a start!! I'm also going to put these pics in my album along with some of my other box mods.

http://i638.photobucket.com/albums/uu107/caguiar_2009/DSC03070.jpg

http://i638.photobucket.com/albums/uu107/caguiar_2009/DSC03067.jpg

What a wonderful acomplishment. It is beautiful. Keep us posted my friend.



[Bubo]

Sweet....
Time for me to start modding too... I am sick and tired of my 501 batteries dying!



[Nforcer]

damn this its awsome seems u wont need any more atty's for a while
could we see it in action



[Carlos49]

damn this its awsome seems u wont need any more atty's for a while
could we see it in action

Working on a video but I'm affraid it will be silent, my Step-daughter erased something on my computer and now I cannot send any sound. I get sound but the mic/recording part is not working... not even on IM....GRRR
If any IT people have any sugestions please PM me!!!

Never mid got it fixed... thanks



[SLDS181]

Sweet

anything more of the atty itself? (pic-wise)



[warp1900]

Just amazing Carlos, this is the biggest breakthrough IMO, an atomizer build from scratch!?!?

With this we will be able to ride the ban, (if it comes) with no problem!

WOWWWWWWW

____



[Carlos49]

Thanks Warp I hope it will continue to work well, This particular atty has been running for the better part of 1 month and I've put it through alot. I made a small video showing it's performance. I'll post more later for everyone, that's interested, to see.
Thanks to all the modders that put up with my PM's asking them all kinds of questions and being a real PIA at times.
See if this link works
for some reason it did not download ..I'll try again

YouTube - TheCarlos49's webcam recorded Video - August 31, 2009, 11:43 AM

OK let's try this



[SLDS181]

Just put the link in, not the embed code, and the video will show correctly



[jj2]

And I mean it. Can't wait to see the video.
And it's such a relief. There's a bunch of people that won't go back to the analog just because of this. Just think of the lives you saved that the FDA and others tried to destroy.



[jj2]

If you would, since you won't have audio, would you please list parts needed and instructions.
And again, thank you for being a genius!!!!!!!!!



[Carlos49]

The video should be working now
Thanks

I also roticed that I put this in the modders forum instead of the atty mod section. Would a mod please move this for me?
Thanks



[Jason365]

Im watching this thread just hoping I can build a home made atty. Unbelievable. You should be commended for your knowledge on this. This deserves to be public info.
8-o

Jason



[Stric9]

That's excellent work!!!

Respects



[Hangtime]

Very nice work!!!



[Chief-A-Lot]

I would like to say, I always see you on the modders forum, ALWAYS giving complaments to others and encouraging people. It was like you were just lurking in the shadows and BAM! You struck HARD! Very humble! Huge brother great job!!m I'm sure I speak for everyone THANK YOU!



[Shreck]

Amazing, That is absolutely incredible. I vote Carlos for this years Nobel prize.
But really, do you think this can be done by all of us? Im really interested to see how it was made.
Kudos to you Carlos49!!!



[RenaissancePuffer]

This is absolutely awesome news, great job!!!



[Carlos49]

I would like to Thanks everyone for their great comments and gratitude.
I would like to say, to that certain person who sent the nasty PM, is that it's a shame that there is always someone, that has zero self esteem, that has to try to make things bad for everyone. Please if you not happy with yourself or your wife is cheating with your brother, because you have a tiny johnson, don't take it out on others. Just go out and jump in front of a semi on the highway and save us all the grief of having to put up with your sorry self.
To everyone else thanks again and will post more soon.
Carlos



[surbitonPete]

Fantastic carlos....being able to make our own atties as well as the battery packs is the Holy Grail for all modders.
