Look what just came in the mail. A FREEBIE from Brandon at Evolv
Now what to put it in
Now what to put it in
- Status
Good for you breaktru...... let us see your build when you get-r-done.....
Last edited:
Friggin critters froze my board.
I contacted Brandon yesterday so he is aware of the issue. He says it's an easy fix and we will have new boards to test by Tuesday.
For now, don't take it to 10.1W with an atty/ carto attached as that's where the software hiccup is.

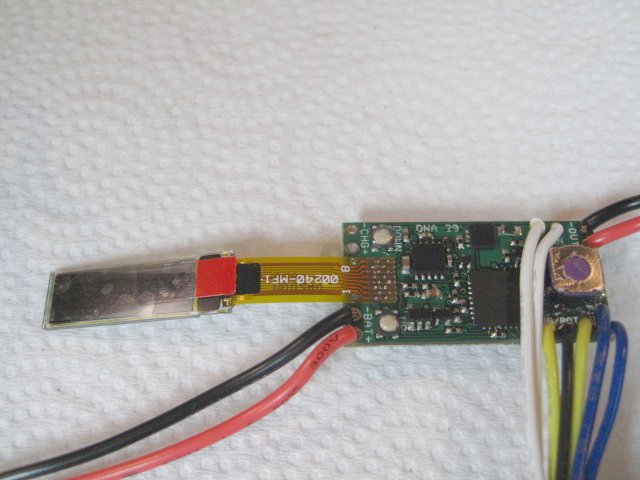

The board itself is 33mm x 16mm and the OLED is 26mm x 8mm. It's gonna be a challenge for those of us putting it in a box type of case cuz the front of the OLED has no ridge to insert into what with the attached cable. So I'm looking at plexiglass insert options.
The layout of the board is easy for wiring as everything is clearly marked.
I contacted Brandon yesterday so he is aware of the issue. He says it's an easy fix and we will have new boards to test by Tuesday.
For now, don't take it to 10.1W with an atty/ carto attached as that's where the software hiccup is.
The board itself is 33mm x 16mm and the OLED is 26mm x 8mm. It's gonna be a challenge for those of us putting it in a box type of case cuz the front of the OLED has no ridge to insert into what with the attached cable. So I'm looking at plexiglass insert options.
The layout of the board is easy for wiring as everything is clearly marked.
Last edited:
Sounds like some firmware code updates are in order.........can't wait to grab a couple of these......
Must say both of my self-made dna's are still working wonderfully (the Darwin is still my #1 go to).....will be great to have displays on the next ones
Must say both of my self-made dna's are still working wonderfully (the Darwin is still my #1 go to).....will be great to have displays on the next ones
Last edited:
Thanks for the dimensions mamu, I've been patiently waiting. The 16mm width is very interesting indeed.
Friggin critters froze my board.
I contacted Brandon yesterday so he is aware of the issue. He says it's an easy fix and we will have new boards to test by Tuesday.
For now, don't take it to 10.1W with an atty/ carto attached as that's where the software hiccup is.
The board itself is 33mm x 16mm and the OLED is 26mm x 8mm. It's gonna be a challenge for those of us putting it in a box type of case cuz the front of the OLED has no ridge to insert into what with the attached cable. So I'm looking at plexiglass insert options.
The layout of the board is easy for wiring as everything is clearly marked.
Thanks Mamu, won't go above 10W for now.
Didn't have a chance to power it up. Been working on other projects.
Have you thought of what to use for the buttons
You can go above or below 10.1W. Just don't have an atty or carto attached when adjusting watts and you should get through the freeze at 10.1W aok.
I think it's awesome that Brandon gives us an opportunity to test these boards so we can ferret out these things before they hit the market. It's a win-win for everyone. And I get a freebie.
I was debating whether to use a pot, or my own up/down buttons. But then I realized there's some features you can't access if using a pot, at least that's my understanding at this time, so will go with the up/down buttons.
I'm leaning toward using round silver tactile switches for up/down buttons... I like that they are small and round and can be press fit into place...
And for the atty switch, I'm thinking I'll use my fave 12mm ss switch that I used for Denali, Dena, and Lexi.
OR... these past few weeks Ive been playing with a touch sensor ic and may use that instead of push button switches.
I picked up a few of these in 6mm (for the up/down buttons) and 12mm (for the fire button) to use as sensors... cool huh?
10x Round 12mm Men Silver Tone Stainless Steel Barbell Ear Stud Earring Jewelry | eBay
Just not sure what route I'm going yet.
Thanks mamu. I was thinking more on the way of using pins to activate the on board tacts but your choice of external tacts would be better being the existing tacts are rather delicate looking. I've used those exact tacts before. I've been looking for about a month now for them in 100g and there is a world wide shortage. 300g's are readily available. I did get quotes from China on the 100g's and they want 5 bucks each plus a huge shipping fee.
I haven't even made my first mod yet (parts otw) and I am jonezen to get one of these lol
The Wattage value is easy to read.
Getting ready for the build.............
Nice battery... 15C; where did you score that, Breaktru?
