Frankenskull clone

Discussion in 'Liquid Feed APV Discussion' started by ThaFuzz, Dec 18, 2016.

Thread Status:
Not open for further replies.
Image has been removed.
URL has been removed.
Email address has been removed.
Media has been removed.
  1. b.m.

    b.m. Vaping Master Verified Member ECF Veteran

    Mar 30, 2014
    Ohio
    I have too many different bottles running through my head,i don't know why i thought the ss bottles were silicone haha.I didn't realize when i seen your post,those are the bottles that come with the Icarus clone,so i do have one of those bottles,and i agree they are nice,i planned to see if they sold them separately,then forgot to check,but now i have 2 of the 10 packs in my cart.

    • Like Like x 1
  2. Rathamar

    Rathamar Super Member Verified Member ECF Veteran

    Sep 15, 2013
    Mound - Minnesota, USA
    Looking at the pictures, it doesn't look like the tube makes a good seal with the top of the bottle - is that true or are the pics on Fasttech off? Would not surprise me either way.

    • Like Like x 1
  3. TheWestPole

    TheWestPole Ultra Member Verified Member ECF Veteran

    May 28, 2015
    Los Angeles
    The tube>cap fit is not quite as tight as Supersoft, but I've had no problems there.

    • Like Like x 1
  4. MrSmith99

    MrSmith99 Senior Member ECF Veteran

    Jan 28, 2011
    Earth
    I broke my toy! :(

    I dropped my FrankenSkull in the garage. Surprisingly the plastic didn't break or scratch, it just all came apart. After cleaning all the cob webs off of it and wiping it down with alcohol I put the battery back in. I was getting nothing. So I checked it with a volt/ohm meter and got no voltage at all. It is a really super simple device and I couldn't figure out what was wrong. The metal rails just had no voltage. So, the battery wasn't making good contact. I tried to bend the ends down a bit where it contacts the battery but didn't have much luck, and I still got nothing. Then I added a very slight bump of solder to both the upper and lower battery contact rails. And viola! It works great again. I would consider it better than before. Now I don't have to worry about it not working for such a dumb reason when I'm out somewhere. I think it really needs a slight bump on the upper and lower contact rails, just saying...

    My toy works again! :)

    • Like Like x 2
  5. eskapo

    eskapo Full Member

    Jul 13, 2013
    ph
    good day!
    i have the same mod too, been using it alot lately, and i am having a hard time using the bottle it came with, i read the other suggestions regarding the bottle "6ml soy sauce" but unfortunately, i cant find it here in my location, the italians or other bottle is a no go for me, so im just wondering do the pico squezzee bottles fit, or if other modifications are needed can i see the result? thank you

  6. Asbestos4004

    Asbestos4004 Vaping Master Verified Member ECF Veteran

    Sep 11, 2013
    Sugar Hill, Georgia
    Easy Peazy

    • Like Like x 4
  7. Kprthevapr

    Kprthevapr Vaping Master Verified Member ECF Veteran

    Jan 1, 2015
    On the River, GA
    Love my Frankie :D

    • Like Like x 6
  8. MrSmith99

    MrSmith99 Senior Member ECF Veteran

    Jan 28, 2011
    Earth
    I've seen a few posts talk about how the battery connector on the Franken Skull tore up battery sleeves and made it hard to insert a battery. I have also seen posts about how hard the button is to press and make work.
    So, I thought I'd show my ultra simple fix for both issues. I simply put a dab of solder on the connectors and it works great. There is no need to replace the connectors with copper or rebuild anything. Took me 5 minutes with a cheap solder iron, solder paste, and some electronics solder. Incidentally, you can pull the metal contact strip out with a pair of needle nose pliers. Pull straight out easily, being careful of the plastic tab at the bottom holding it in. Don't twist it. Pull straight out, there is no glue or anything hold it in.

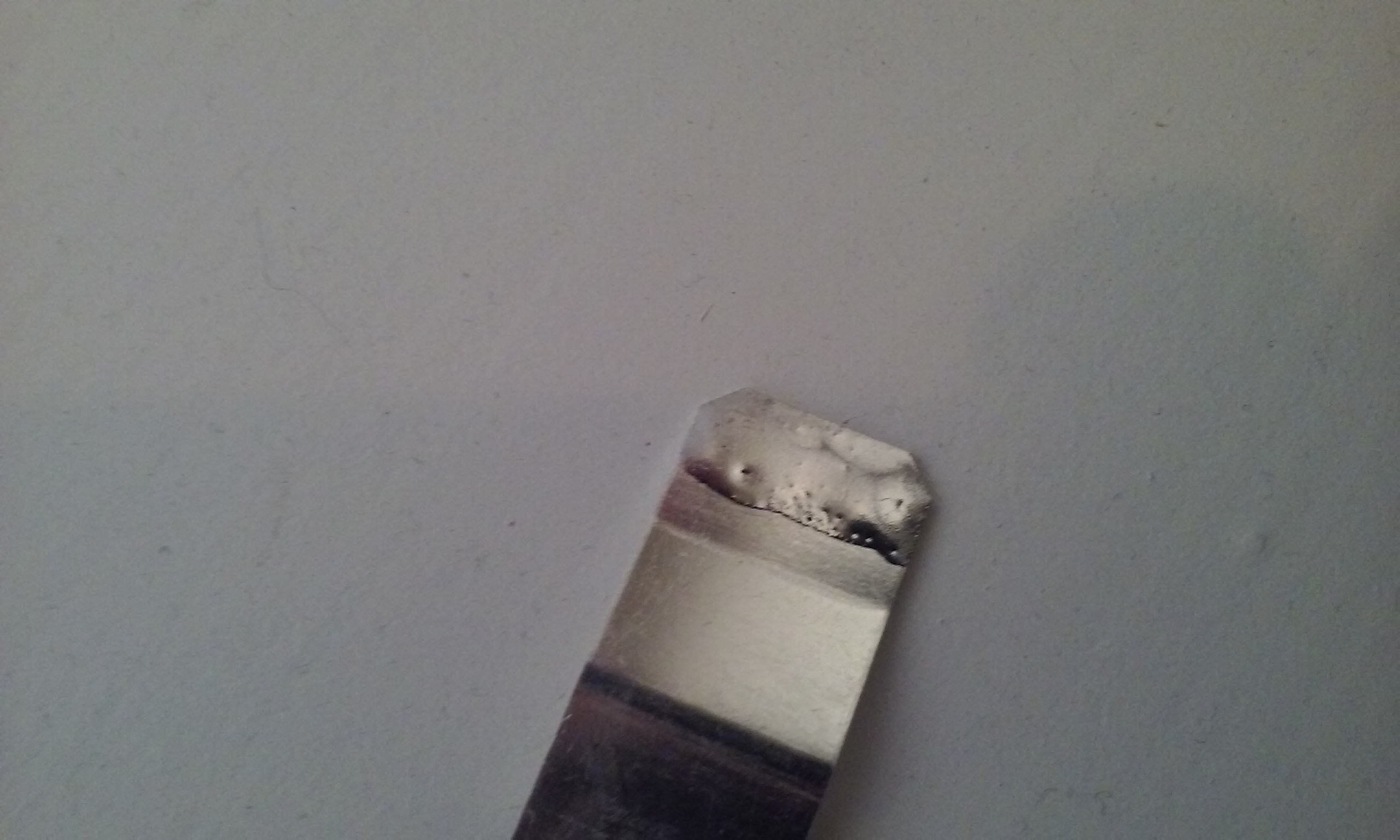

    Here is a pic of the button connector. I barely made a bump with the solder. The button works perfect every time now. No need to press hard.

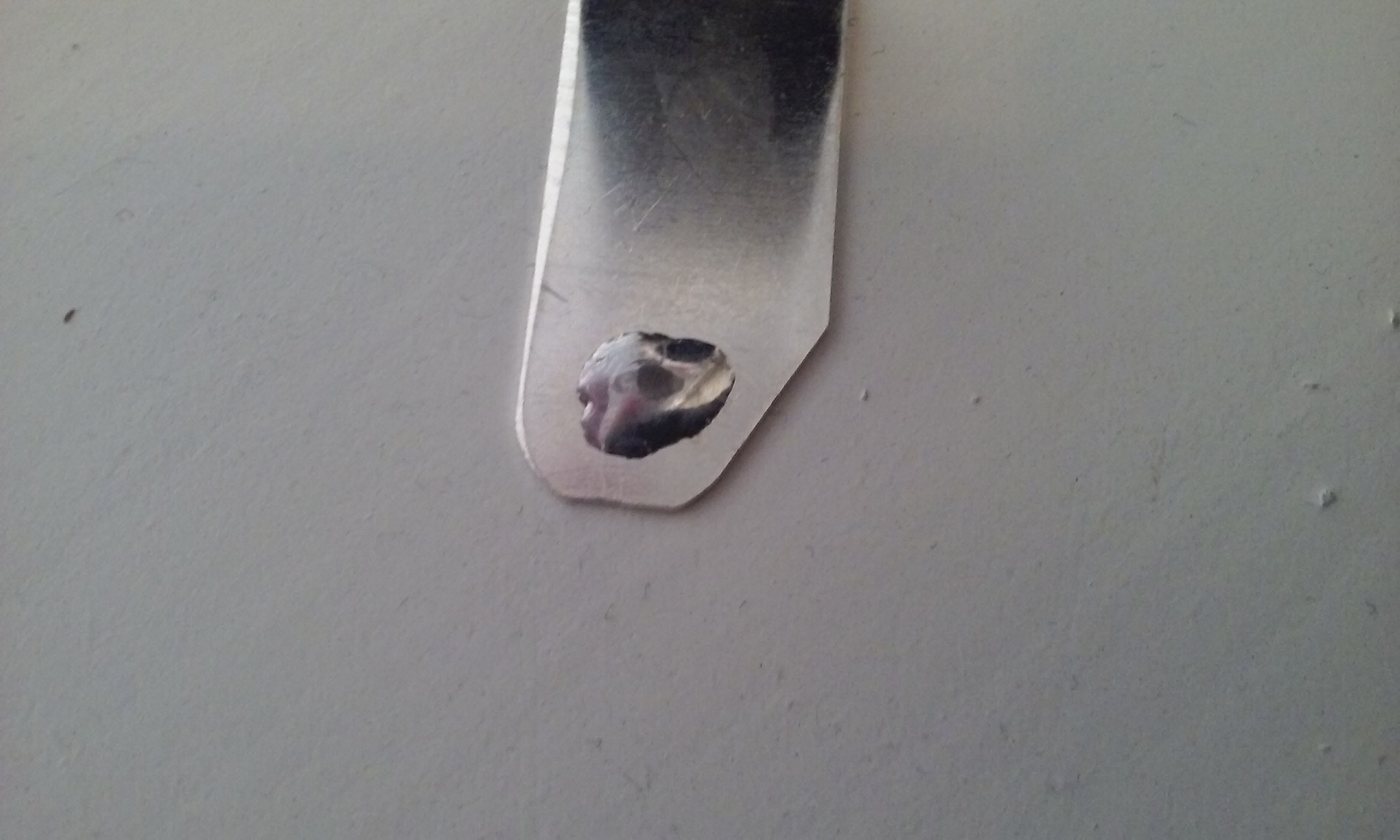

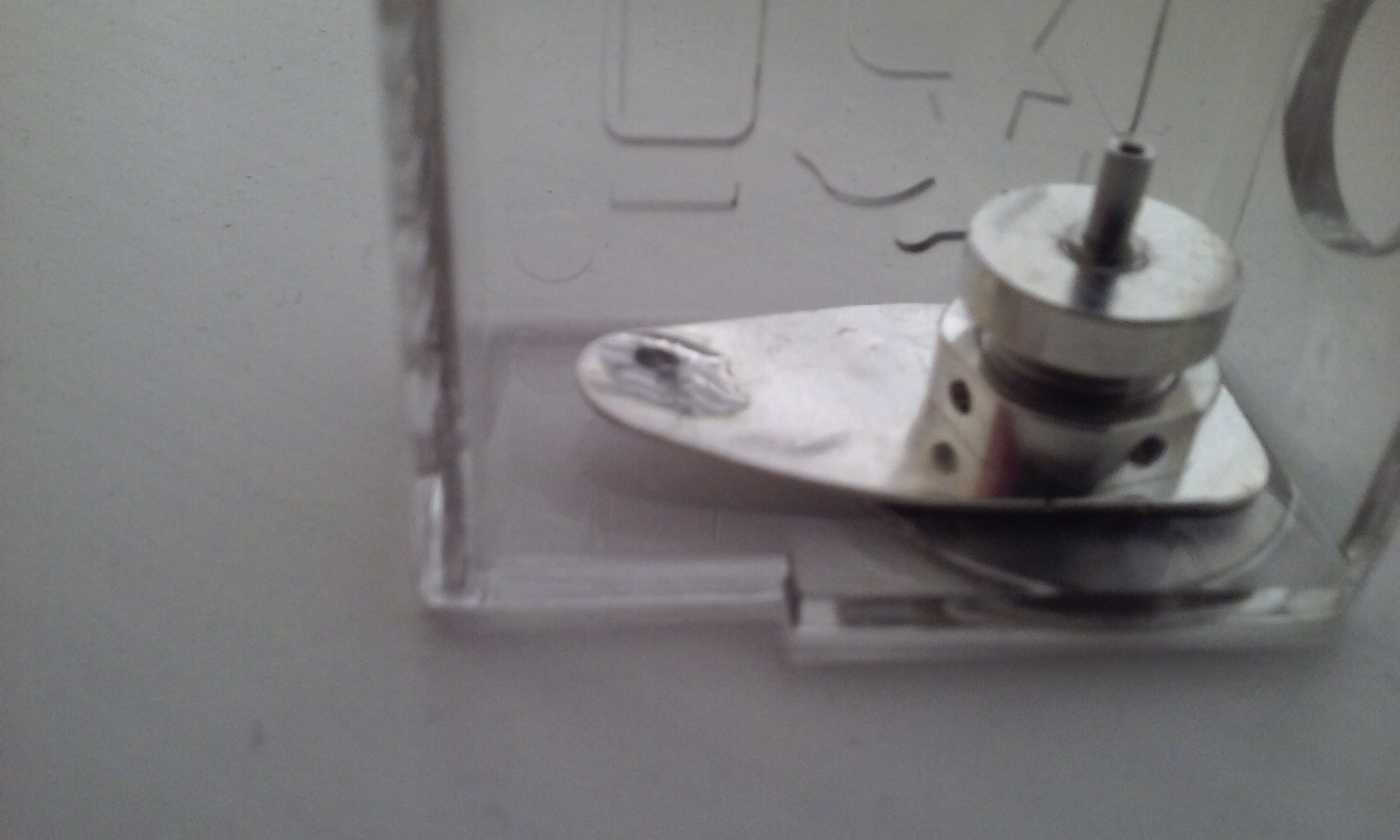

    Here are some pics of the battery connectors where I soldered them. I just put a small flat bump. This helps it work with flat top batteries and also lets the battery roll in or out of the connectors without hurting the sleeve.

    I like this mod so much (and especially for the price) that I now own 2 of them. They are my "carry everywhere" mods because they work great and at this price they're expendable.

  9. badinfluence357

    badinfluence357 Ultra Member Verified Member ECF Veteran

    Jun 17, 2012
    NYC
    • Like Like x 2
  10. badinfluence357

    badinfluence357 Ultra Member Verified Member ECF Veteran

    Jun 17, 2012
    NYC
    Love mine too! Its light, small, and sexy...

    Sent from my LGMS550 using Tapatalk

    • Like Like x 2
  11. badinfluence357

    badinfluence357 Ultra Member Verified Member ECF Veteran

    Jun 17, 2012
    NYC
    Im working on another one, same finish and its ready for parts. Ive decided to change the copper wiring to .99% silver wrapped with teflon so its taking a little longer then expected...I have little time to play betwee work and kids but Im working on it to show it off soon.... Being that the mod is so light and tiny Im going to install a tiny sub-ohm single button pcb bord it...

    Sent from my LGMS550 using Tapatalk

    • Like Like x 1
  12. bsidb

    bsidb Ultra Member Verified Member ECF Veteran

    Mar 10, 2012
    Leroy,NY
    filed bottom half of button , new bottle , some bending of positive strip and it fires like a primo mod, btw the drop between positive contact and base is Deoxit[​IMG]

    • Like Like x 2
  13. williamclarkonet

    williamclarkonet Ultra Member ECF Veteran

    Jul 11, 2014
    Iowa United States
    im glad to see this thread still goung so the final verdict on this is? im thinking of picking one up?

  14. bsidb

    bsidb Ultra Member Verified Member ECF Veteran

    Mar 10, 2012
    Leroy,NY
    I'm probably the most recent, I'm always late ,to try it but I think its well worth the effort,fun to fidget with and delivers a decent hit, small size and light weight,a whole new avenue if you will:vapor:

    • Like Like x 1
  15. bsidb

    bsidb Ultra Member Verified Member ECF Veteran

    Mar 10, 2012
    Leroy,NY
    put copper contact into Frankenfudge and its a noticeable difference for the better, got tired of the pressure needed on the button with the ss bottle because of the cap being so large so I switched to what I think is the one it came with, so two forward one step back, but hey that copper contact is the [​IMG]

  16. bsidb

    bsidb Ultra Member Verified Member ECF Veteran

    Mar 10, 2012
    Leroy,NY
    crappy bottle has my juice tasting like plastic, forgot about that,same reason I cant use acrylic drip tips or tank..

  17. b.m.

    b.m. Vaping Master Verified Member ECF Veteran

    Mar 30, 2014
    Ohio
    • Like Like x 1
  18. bsidb

    bsidb Ultra Member Verified Member ECF Veteran

    Mar 10, 2012
    Leroy,NY
    • Like Like x 2
  19. williamclarkonet

    williamclarkonet Ultra Member ECF Veteran

    Jul 11, 2014
    Iowa United States
    yeah me too

    • Like Like x 2
  20. b.m.

    b.m. Vaping Master Verified Member ECF Veteran

    Mar 30, 2014
    Ohio
    No problem,hopefully it will fit better.I threw one in my cart to try out as well,plus if it's nice enough,i'll grab a few more for some other mods.I just hope it's not as squishy as a few of the other silicone bottles,if it's just a bit firmer than the others,then i will be happy haha.
