ULRA - UltraLowResistanceAtomizer - Final proto vidéo - 1,5ml/7min

[pailpoe]

I'm in weekend.
No work today and tomorrow.



[Rosco]

I'm in weekend.
No work today and tomorrow.

Excellent management move!



[pailpoe]

Yes, I like this program...
I programmed a lot this week after my job.
Everything works well and the board works as expected .
Test - Test - Test - .....



[Raf]

Yes, I like this program...
I programmed a lot this week after my job.
Everything works well and the board works as expected .
Test - Test - Test - .....

oh! these good words !!!
bravo



[pailpoe]

The plans of the board for DIYers...

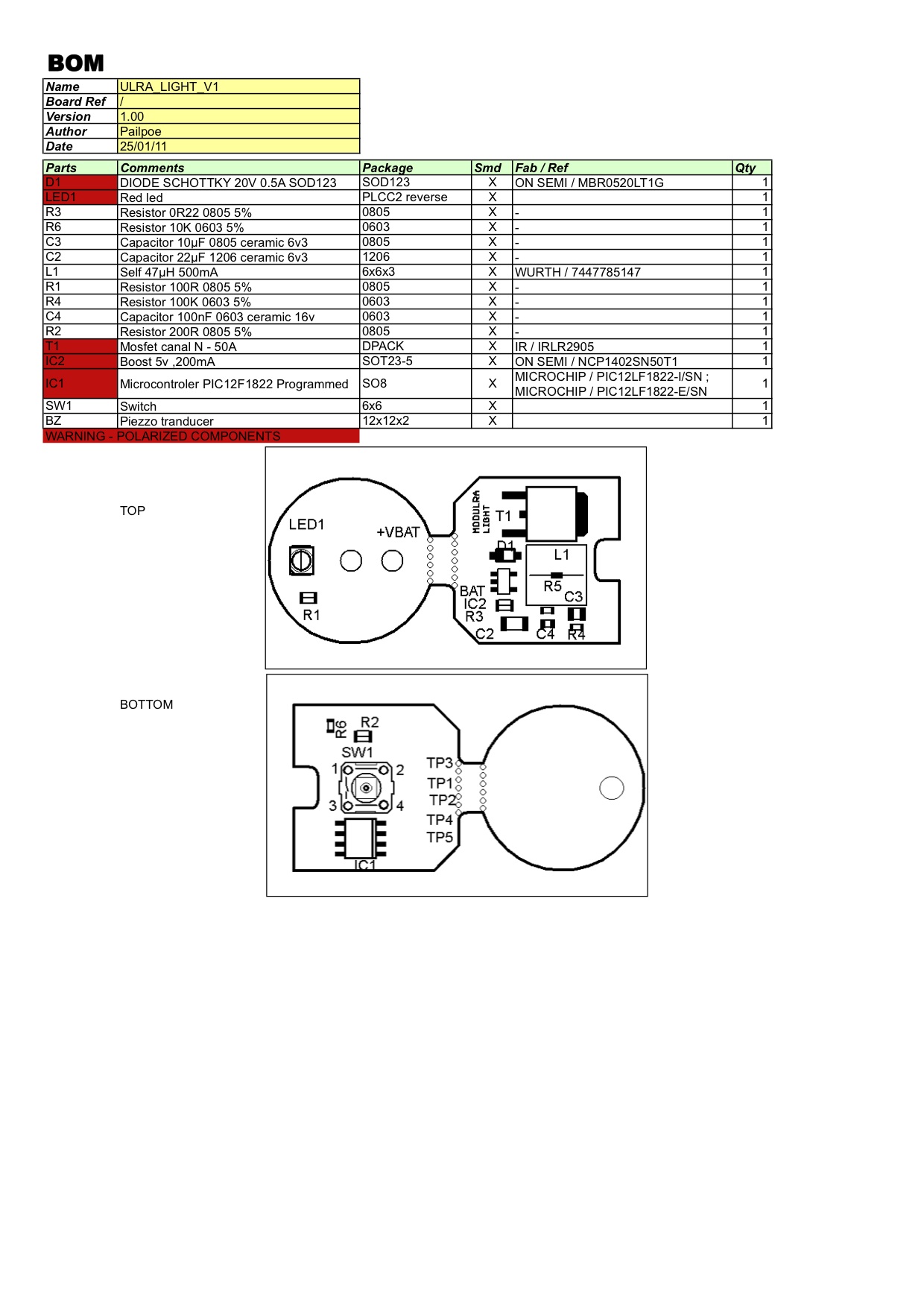

BOM...

http://img62.xooimage.com/files/9/c/5/bom_ulra_light_v1-24e23c1.jpg

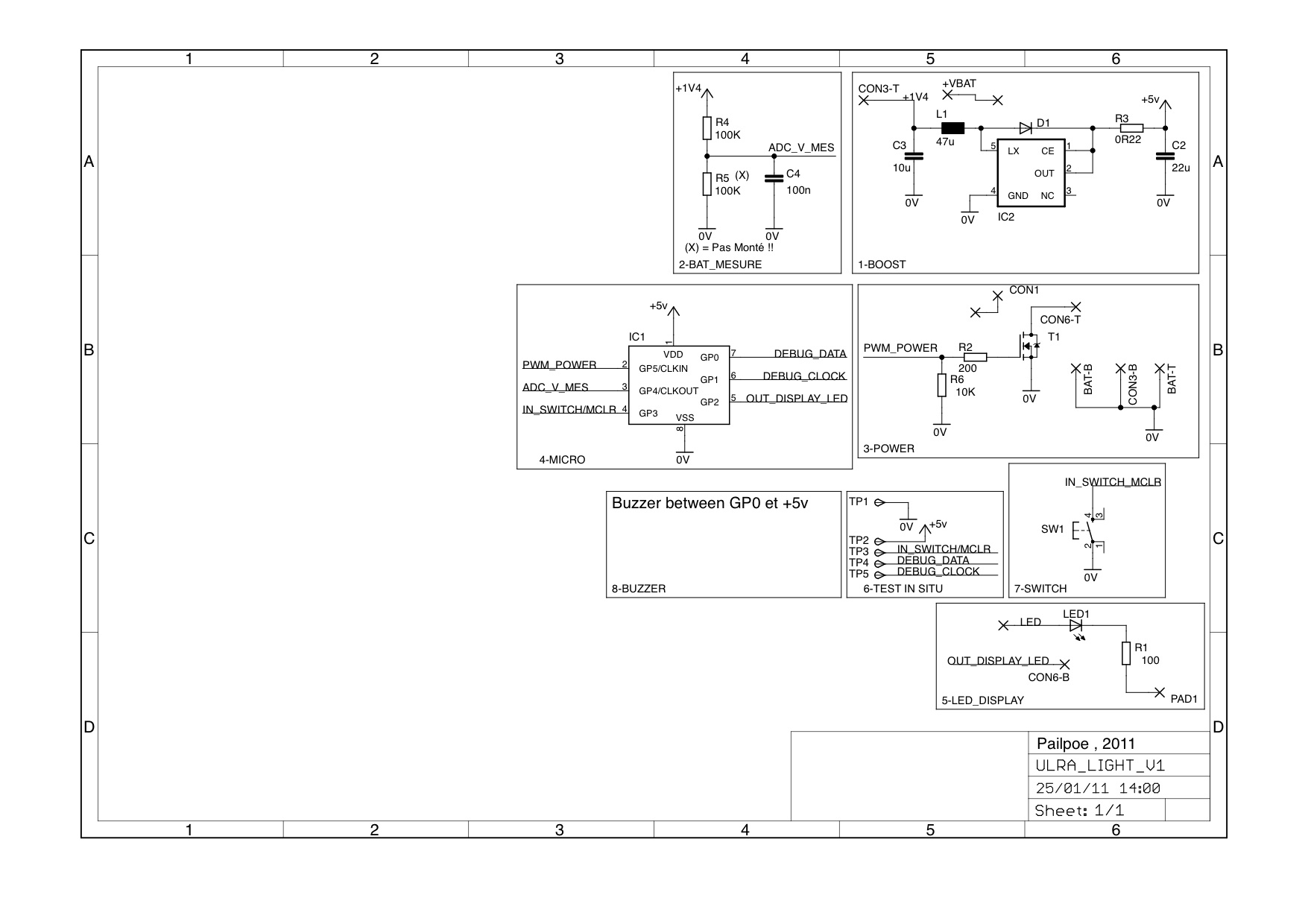

Schematic...

http://img51.xooimage.com/files/9/5/a/schem_ulra_light_v1-24e23ff.jpg

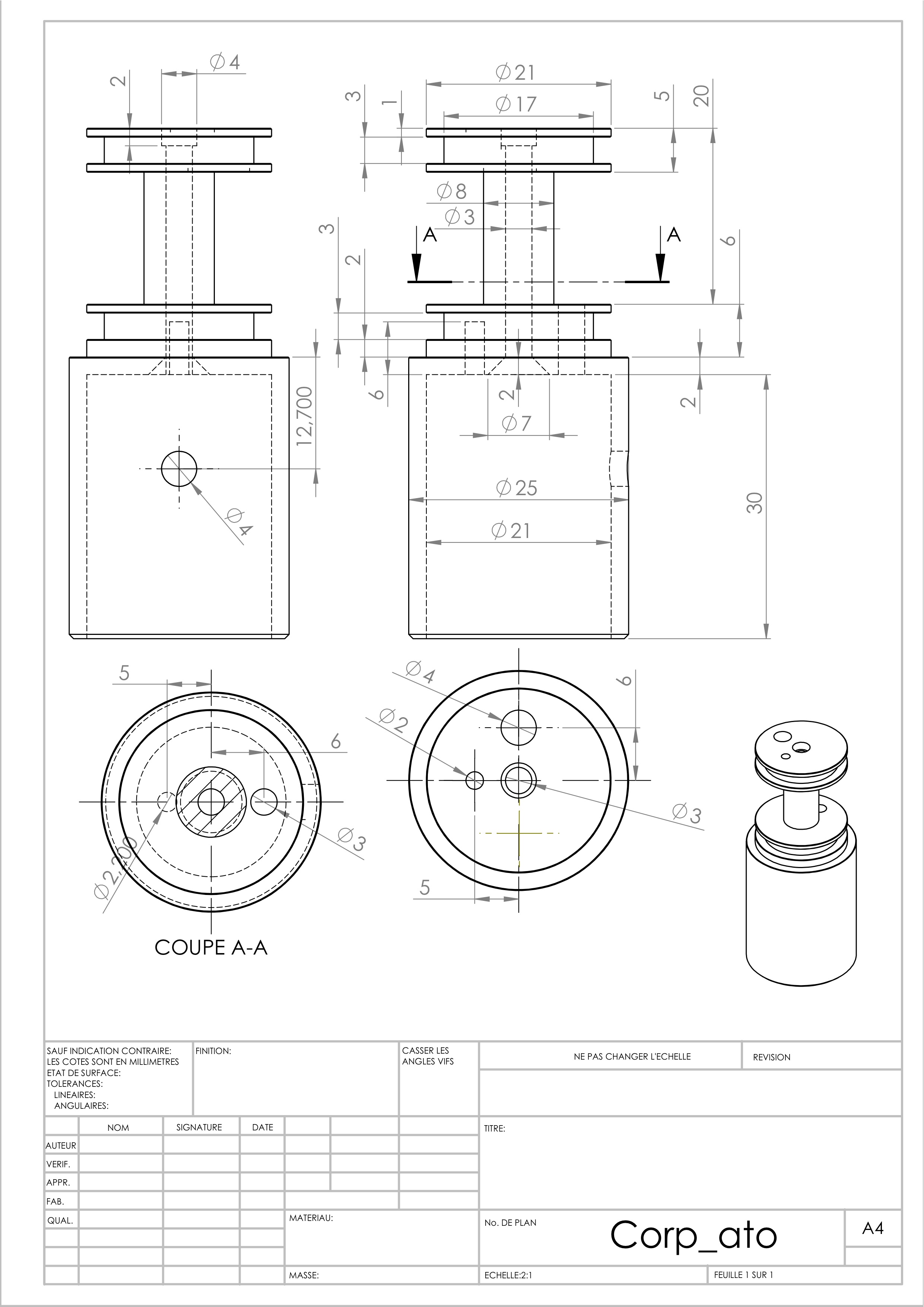

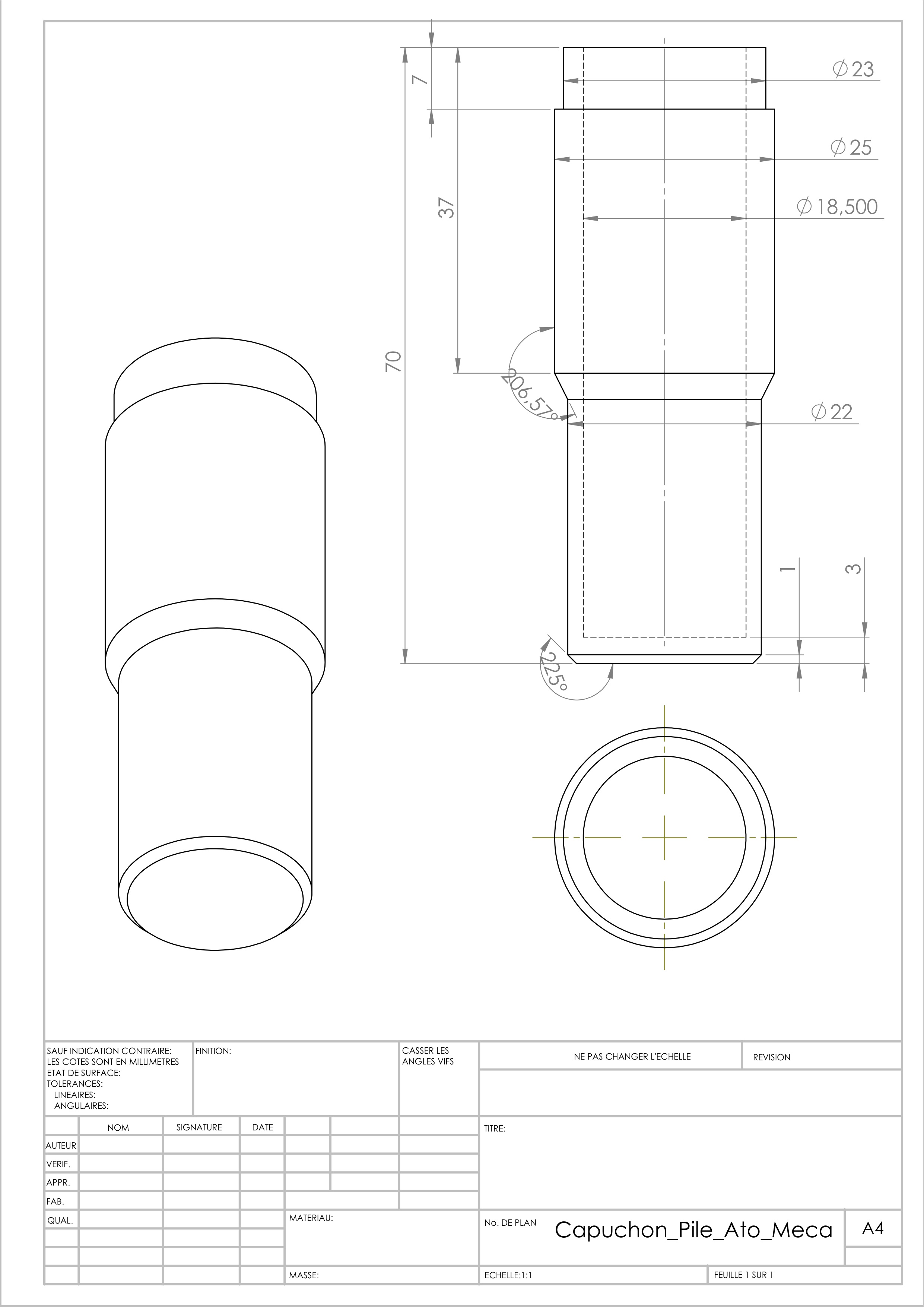

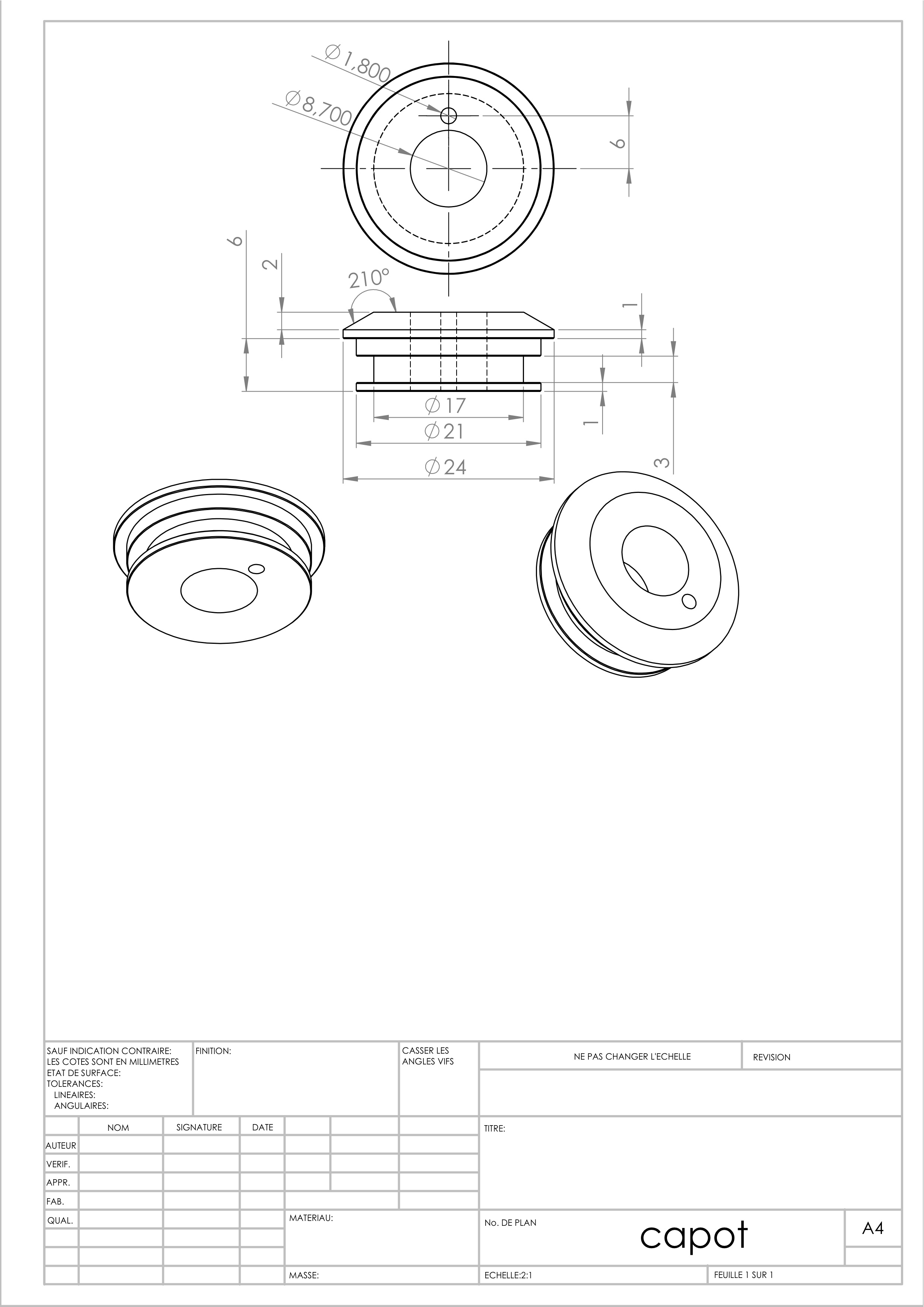

Mechanical drawing...
http://img53.xooimage.com/files/8/6/1/modulra_capot_v3-24e266e.jpg
http://img60.xooimage.com/files/7/d/6/modulra_corp_ato_v3-24e26bf.jpg
http://img60.xooimage.com/files/6/5/3/modulra_tube_pile_v3-24e26f4.jpg
I use plexiglas 21x25x43 for my transparent tube.
I hope to make a first release software this week.



[IndustrialAction]

Pailpoe, how much does it cost you to have the parts produced?



[pailpoe]

I don't know. I only buy the PCB.
A friend have a lathe. I have soldered my board.



[u_couple]

Pailpoe, will these be available in parts, and the boards pre-programed ? I have little or no electrical programing knowledge



[WyseOne]

Pailpoe, I think a lot of us may be confused.

When you said you will be selling as DIY what exactly does that mean?

Will you be selling the PCB and all parts required to make it work and we just solder the parts and program the IC?

Will you be selling the tubes at all or did you post the plans for us to have it made on our own?



[pailpoe]

For now, I can only sell pcbs and some components for DIY. I can also program the microcontroler.
I want to launch a bulk order for mechanical parts after.
I hope to make the first release of the software this weekend.
For now, no plans to sell the complete product.



[WyseOne]

Gotcha...

Bummer, oh well... Will wait for until all parts are available. The electronics without the mechanical parts won't do anything for me.

Keep up the good work Pailpoe. looking forward to when all parts can be purchased for DIY.



[sooperdrave]

The plans of the board for DIYers...
BOM...

http://img62.xooimage.com/files/9/c/5/bom_ulra_light_v1-24e23c1.jpg

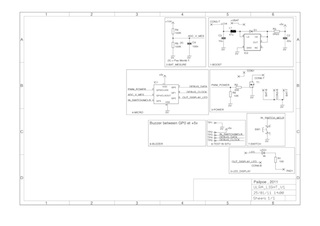

Schematic...

http://img51.xooimage.com/files/9/5/a/schem_ulra_light_v1-24e23ff.jpg

Mechanical drawing...
http://img53.xooimage.com/files/8/6/1/modulra_capot_v3-24e266e.jpg
http://img60.xooimage.com/files/7/d/6/modulra_corp_ato_v3-24e26bf.jpg
http://img60.xooimage.com/files/6/5/3/modulra_tube_pile_v3-24e26f4.jpgI use plexiglas 21x25x43 for my transparent tube.
I hope to make a first release software this week.

the link in bold isnt working.



[pailpoe]

No problem at home... Retry



[Gummy Bear]

It works for me,,,,,,,



[clavit]

... Will wait for until all parts are available. The electronics without the mechanical parts won't do anything for me.

Me too. I could propably build something that worked, but it would look like cr@p. With all Pailpoe's work, his creations deserve to look like a million. Mine would propably just attract a million flies ;-)



[pailpoe]

The project is progressing slowly.
I first want to finish the software. Afterwards, I will do some parts machined by a friend for a few people in the French forum.
If everything is OK, we may consider a production for more people.



[u_couple]

If everything is OK, we may consider a production for more people

Now thats what I like to hear !!



[blacksheepfoto]

I hope you open source the whole thing...CAD files of the machined parts would be awesome....3d printed vaporizer anyone?



[jimho]

The project is progressing slowly.
I first want to finish the software. Afterwards, I will do some parts machined by a friend for a few people in the French forum.
If everything is OK, we may consider a production for more people.

Does that mean I have to learn french and join the french forum?



[Turbo]

Does that mean I have to learn french and join the french forum?

Google translate does a fair job or Rosetta Stone...lol
