SXK Billet box...

[badinfluence357]

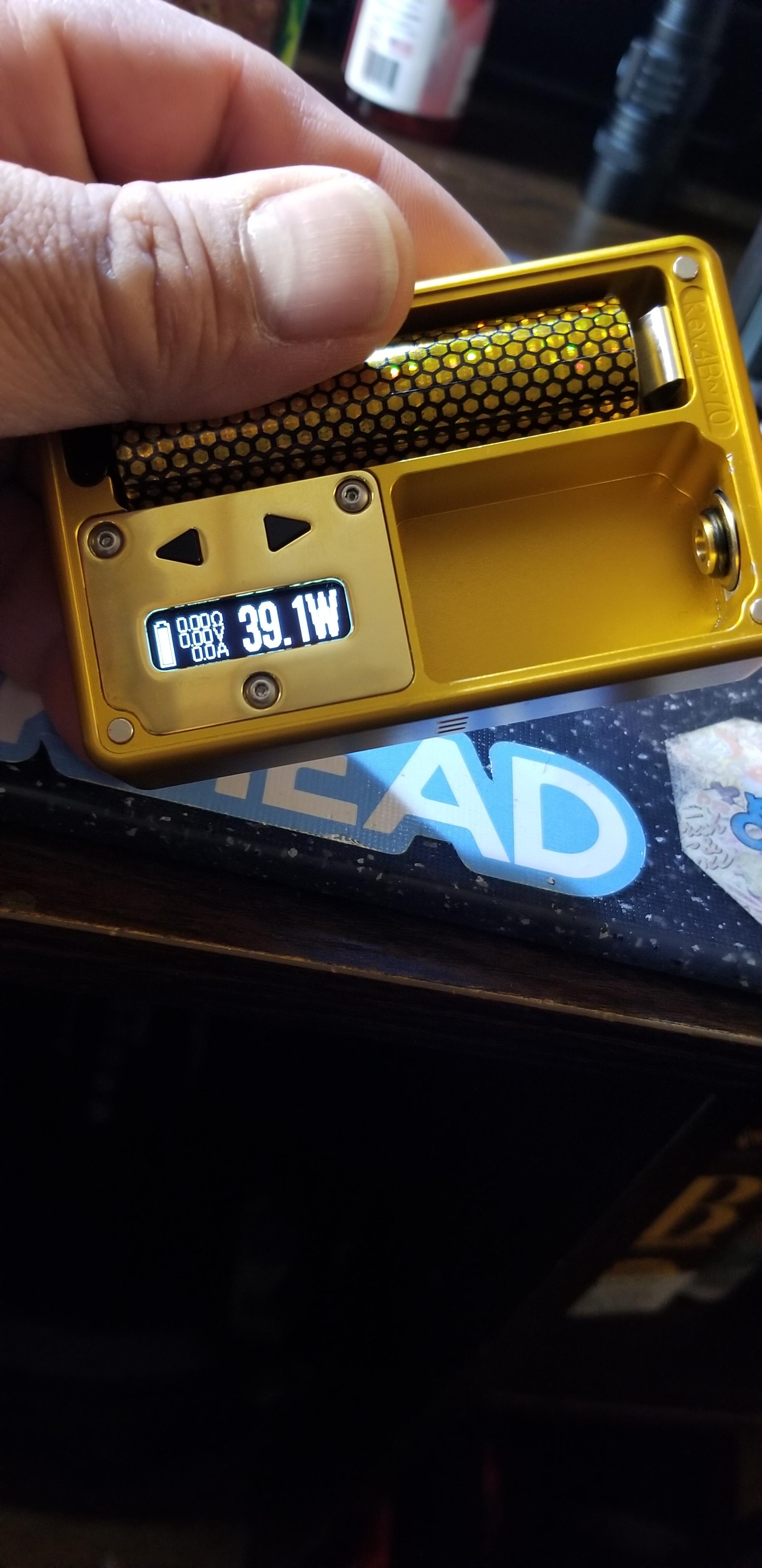

@macman thank you for your help. + and - control boards on its way. Hopefully I can finally finish rebuilding the sxk goldy...

Old pictures of it make me want to cry [emoji26]

Sent from my SM-G950U1 using Tapatalk



[Iv3shf]

Just a quick one, to show that a mesh build is not that difficult and it does not take all that long, I made the Bbgen in just over 6 minutes from scratch.. and it was my first time on this brand new one.



[badinfluence357]

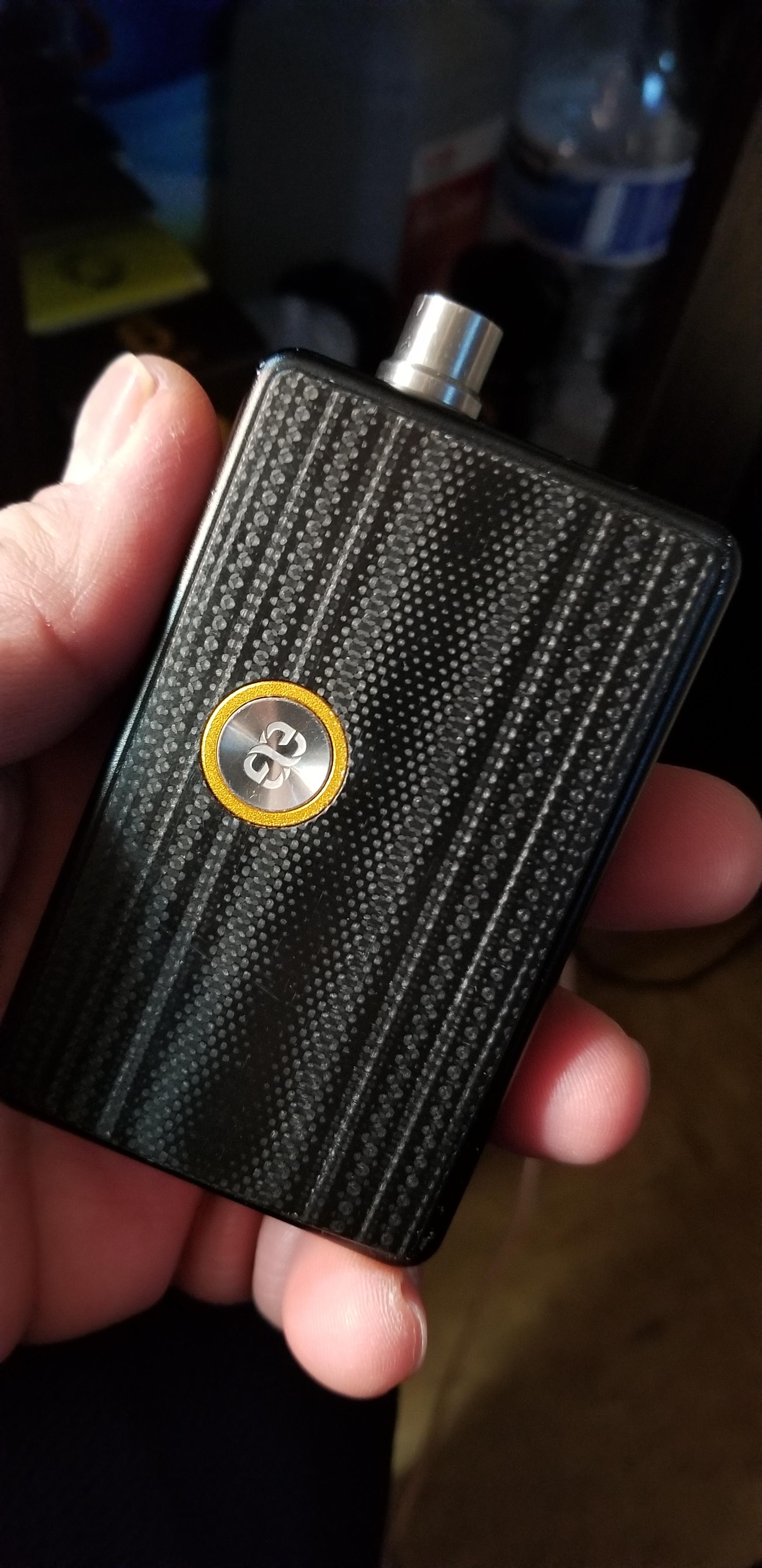

Rebuilt goldy today but im disappointed.. it lets me take a few puffs then starts auto firing..smh settled for a vape on my black sxk dna 60 bb...
So goldy has brand new up and donw and fire control board. This board is auto firing. The up down work flawlessly..I think that battery positive should go to the blue thick wire and out should go screw to the frame...

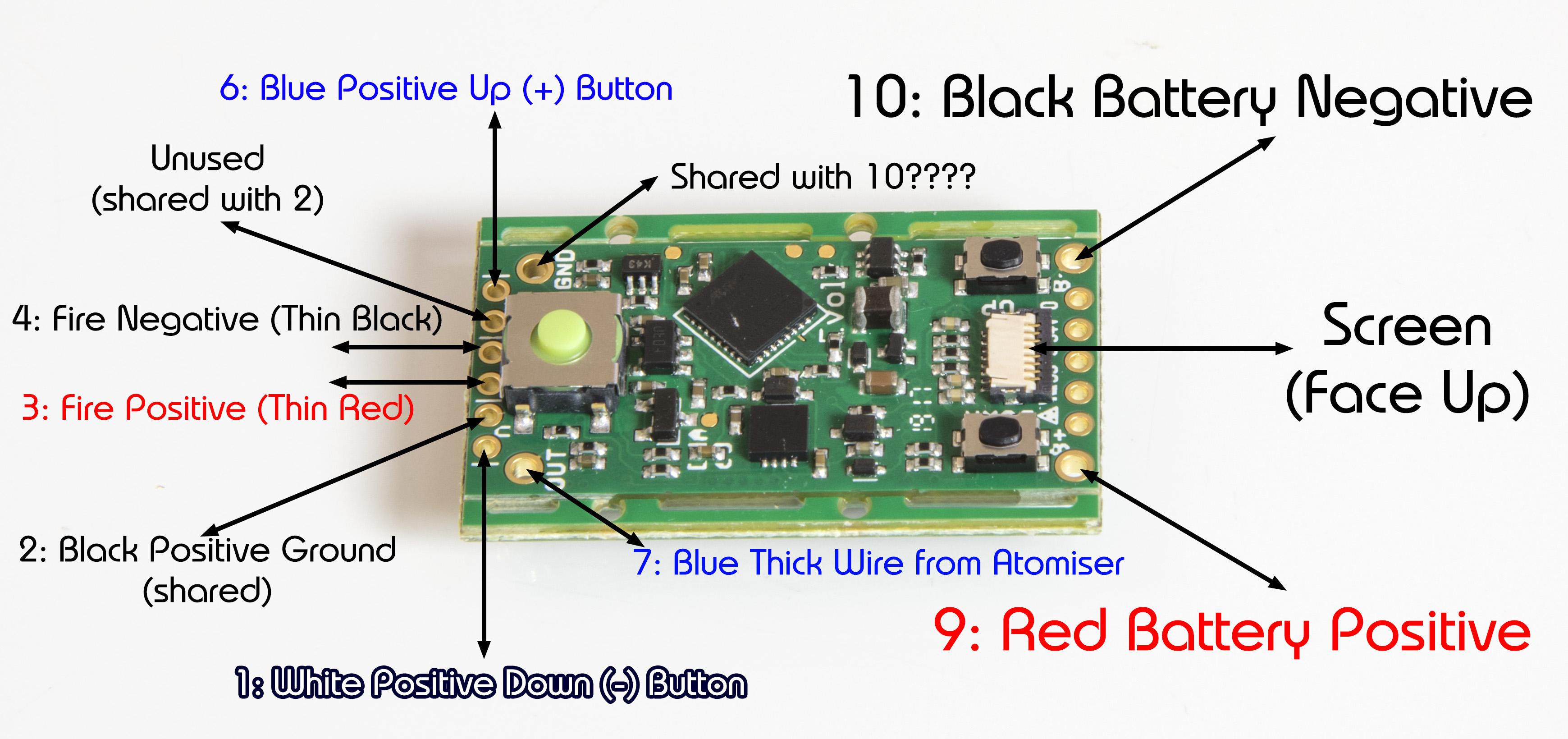

Is this diagram correct? Can the expert's shine some light on this.

Sent from my SM-G950U1 using Tapatalk



[BillW50]

I think that battery positive should go to the blue thick wire and out should go screw to the frame...

Nope, that will short out the output. Mine is a thick white wire by the way.

Is this diagram correct? Can the expert's shine some light on this.

Yes that diagram is correct. As for autofiring, the first thing I'd do is to unmount the fire button and see if it is ok, being loose it won't be pinched or anything. If it still autofires, unsolder one lead and see if it stops it.



[badinfluence357]

Nope, that will short out the output. Mine is a thick white wire by the way.



Yes that diagram is correct. As for autofiring, the first thing I'd do is to unmount the fire button and see if it is ok, being loose it won't be pinched or anything. If it still autofires, unsolder one lead and see if it stops it.

Thank you..one last and final attempt before I chuck it in the electronic trash and parts bin...

Sent from my SM-G950U1 using Tapatalk



[dwcraig1]

As long as Battery negative or Output ground goes to frame ground is made with Billet Box, internally they are connected.
Check carefully perhaps with magnifying glass that #3 and #4 aren't bridged by a tiny amount of solder.



[dwcraig1]

Rebuilt goldy today but im disappointed.. it lets me take a few puffs then starts auto firing..smh settled for a vape on my black sxk dna 60 bb...
So goldy has brand new up and donw and fire control board. This board is auto firing. The up down work flawlessly..I think that battery positive should go to the blue thick wire and out should go screw to the frame...

Is this diagram correct? Can the expert's shine some light on this.

Sent from my SM-G950U1 using Tapatalk

If you don't have a volt/ohm meter they can be had for as little as $5, a most valuable thing to have around,



[badinfluence357]

View attachment 928809
As long as Battery negative or Output ground goes to frame ground is made with Billet Box, internally they are connected.
Check carefully perhaps with magnifying glass that #3 and #4 aren't bridged by a tiny amount of solder.

Thanks for the help mate..Im begining to feel like Ive put a little to much time and effort into this mod....The problem is I cant find a gold one on fastech or 3f..

Sent from my SM-G950U1 using Tapatalk



[Tamer El-Meehy]

Just a quick one, to show that a mesh build is not that difficult and it does not take all that long, I made the Bbgen in just over 6 minutes from scratch.. and it was my first time on this brand new one.

I’m curious to know how the BBgen vapes. Is it good with MTL?


Sent from my iPhone using Tapatalk



[Iv3shf]

I’m curious to know how the BBgen vapes. Is it good with MTL?

On this one, you can choose your air flow, but even on its tightest setting it's a loose MTL,if you know genesis style consider it a Nextiny, that's what it is, from my POV.
What i don't like about it is the contact screw of the drip tip, (you screw the chimney in, and for some unknown reasons the inside part of the chimney (drip tip) pops out and you have to find the right spot.. probably too long, will work on it and let everybody know.
When I want a tobacco MTL vape I definitely go for the Grizzly not the BBGen, but it's not a bad bridge.



[Truckin Vaper]

Just wondering in any y’all had gotten the mission nubin tips ?? I ordered mine from 3fvape. I can’t get a contact connection and the dreaded no atomizer every time I screw it in. Just wondering if anyone had that issue or it worked fine.



[Pigs]

Vapesnail in the drawer for now - enjoying the Xeta.



[Tamer El-Meehy]

On this one, you can choose your air flow, but even on its tightest setting it's a loose MTL,if you know genesis style consider it a Nextiny, that's what it is, from my POV.
What i don't like about it is the contact screw of the drip tip, (you screw the chimney in, and for some unknown reasons the inside part of the chimney (drip tip) pops out and you have to find the right spot.. probably too long, will work on it and let everybody know.
When I want a tobacco MTL vape I definitely go for the Grizzly not the BBGen, but it's not a bad bridge.

Thanks for the info. This will be my first ever genesis atomizer so I appreciate the help. I only managed to find one Chinese (I think) video that attempts to provide a tutorial on how to set it up. Where can I get a Grizzly? Please keep me posted.


Sent from my iPhone using Tapatalk



[dwcraig1]

Vapesnail in the drawer for now - enjoying the Xeta.

View attachment 929195

I'm guessing that's got the Dicodes board?



[Pigs]

I'm guessing that's got the Dicodes board?

I wish. No it's the Asmodus GX70 board that came with the SXK clone.
I didn't even know that people were using Dicodes boards in BBs. Would be interested to know more.



[dwcraig1]

DIY



[badinfluence357]

Does the mission dot rta fit the sxk bb? Could've sworn I seen a picture of a bb with this rta installed. .

Sent from my SM-G950U1 using Tapatalk



[laurie9300]

I wish. No it's the Asmodus GX70 board that came with the SXK clone.
I didn't even know that people were using Dicodes boards in BBs. Would be interested to know more.

SXK Billet Box DNA to Dicodes Conversion | vaping in australia



[Pigs]

View attachment 929227 DIY

Is that the BF 60 ? You've got me thinking hard about changing mine over



[Pigs]

SXK Billet Box DNA to Dicodes Conversion | vaping in australia

Thanks @laurie9300
