It may be the difference in battery chemistry?

The AW is an IMR chemistry, while the eGo is a LiPo chemistry.

Also, compare the physical size of the two batteries. The eGo's physical dimensions allow for more chemical volume than the smaller IMR battery.

I should have asked are you pulling the same amps from both batteries with your choice of juice attachments? The ZMax may be drawing more power from the battery than the eGo does (ZMax is less power efficient).

Last edited:

edyle

ECF Guru
ECF Veteran
Verified Member
Oct 23, 2013
14,199
7,195
Port-of-Spain, Trinidad & Tobago
I recently bought an 18350 battery to use in my new Sigelei ZMAX unit.
It is an 800mah AW IMR battery.

It doesn't last nearly as long as my 650mah Ego Twists always do.

Why?


my guess based on that thoroughly detailed description :rolleyes:
is you are using the zmax at a higher wattage than what is happening on your twist


DC2

Tootie Puffer
ECF Veteran
Verified Member
Jun 21, 2009
24,161
40,973
San Diego
my guess based on that thoroughly detailed description :rolleyes:
is you are using the zmax at a higher wattage than what is happening on your twist
Twist generally set to around 4.6 volts.
ZMAX set to 9.5 watts.

Consider a 510 atomizer to be at around 2.2 ohms.
This one is 2.1 ohms right now according to my ZMAX.

So yeah, same wattage.


Baditude

ECF Guru
ECF Veteran
Apr 8, 2012
30,394
73,072
70
Ridgeway, Ohio
My guess is that the 18350 battery I just bought is about 5 years old.
The "new" AW 800 mah 18350 batteries were introduced in 2015. They have a distinctive 1/3 black ring on the bottom of the battery. They also have the silver hologram AW sticker.

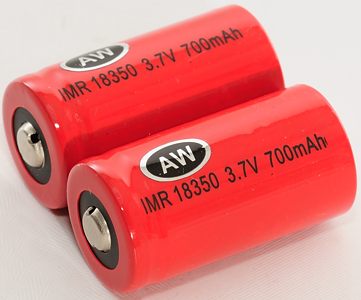

The original 18350 AW IMR was only a 700mah 6Amp CDR. It had the black AW sticker.


Last edited:
  • Like
Reactions: DavidOck

crxess

Grumpy Ole Man
ECF Veteran
Verified Member
Sep 20, 2012
24,438
46,123
70
Williamsport Md
Twist generally set to around 4.6 volts.
ZMAX set to 9.5 watts.

Consider a 510 atomizer to be at around 2.2 ohms.
This one is 2.1 ohms right now according to my ZMAX.

So yeah, same wattage.

90% eficiency (roughly)

Are you Counting number of Draws - length of Draws in comparison? :blink:

Have you Charged the Battery several times and reached peak performance?

Is the zMAX (v)Cutoff the Same as the Twist (v)Cutoff?

Inquiring minds :confused:

  • Like
Reactions: Baditude

HauntedMyst

Vaping Master
ECF Veteran
Verified Member
Mar 18, 2013
4,670
17,853
Chicago
We need more details. Type of charger? What kind of service feeds into the house (solar and wind can throw a battery off)? 110 or 220 outlet? Ambient temperature of the room and the battery? Are you charging it all the way (A charger isn't like a microwave, it takes time)? Did you read the instructions on the Zmax? Do you live close to a cell tower? Date of last menstrual cycle in the home? Do you own a cat? I hate it when noobs come in and don't give us all the info we need to problem solve. You know better DC!


DC2

Tootie Puffer
ECF Veteran
Verified Member
Jun 21, 2009
24,161
40,973
San Diego
The "new" AW 800 mah 18350 batteries were introduced in 2015. They have a distinctive 1/3 black ring on the bottom of the battery. They also have the silver hologram AW sticker.
Well, so much for that theory then.
That is definitely the one that I have.
:shrug:

  • Like
Reactions: Baditude

DC2

Tootie Puffer
ECF Veteran
Verified Member
Jun 21, 2009
24,161
40,973
San Diego
Are you Counting number of Draws - length of Draws in comparison?
Length of draws are pretty much the same.
If anything, they MIGHT be a little shorter on the ZMAX but probably not.
Have you Charged the Battery several times and reached peak performance?
I don't know what that means as far as reaching peak performance.
But I have only charged the 18350 about six times now.

It seems to be getting worse, as today it only lasted a few hours.
And in fact I just finished recharging it a second time.

My Twists generally last all day except for unusual circumstances of high usage.
Is the zMAX (v)Cutoff the Same as the Twist (v)Cutoff?
I'm not sure of the cutoff points as I really never hit cutoff on either device.


crxess

Grumpy Ole Man
ECF Veteran
Verified Member
Sep 20, 2012
24,438
46,123
70
Williamsport Md
I'm not sure of the cutoff points as I really never hit cutoff on either device.

What then are you using to Determine - Not lasting? Flavor Drop off?

I've used several Brands of 18350 Batteries. Unusual things I have noticed:
Higher Drain 800mAh - Last longer in Mechanical mods
Lower drain 1200mAh - Last much longer in Regulated Mods
*We are only talking about 2-3 amps and not pushing to limits.

There is also the limited possibility you simply have a defective cell. It happens, even with the best of brands.

As to Charge cycles - Most new batteries have to be cycled several times before establishing their full Charge cap and drain level. 4-6 is plenty.
What is worse is some lesser design mods have issues with sinking to true battery level. I've been through that with a few earlier Regulated mods. A few battery removals and restarts usually correct the problem.

Also consider excessive drain due to possible poor contact. A Regulated mod(PWM) will quickly draw down a battery trying to maintain correct output with a weak connection. Vape will drop off even with some decent charge available.
I clean with alcohol and on occasion a fine sandpaper.
