homemade atomizer bottom feed

[Cry79]

I am using the Chalice
works well, but is expensive, so I decided to build me a atomizer bottom feed
it's just an idea I'm working on

it is very simple

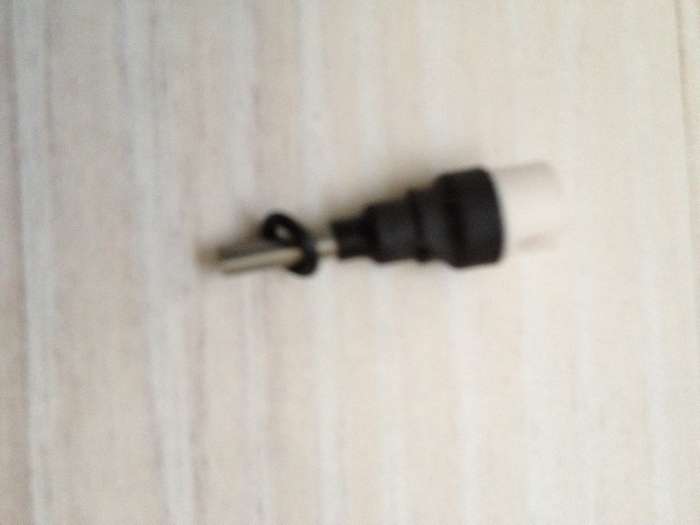

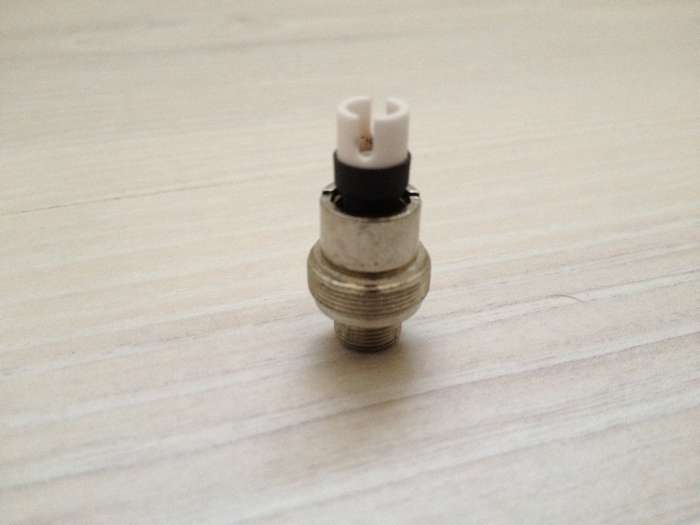

take the cup of a ce2 (clearomizer with ceramic cup) with a piece of his tube

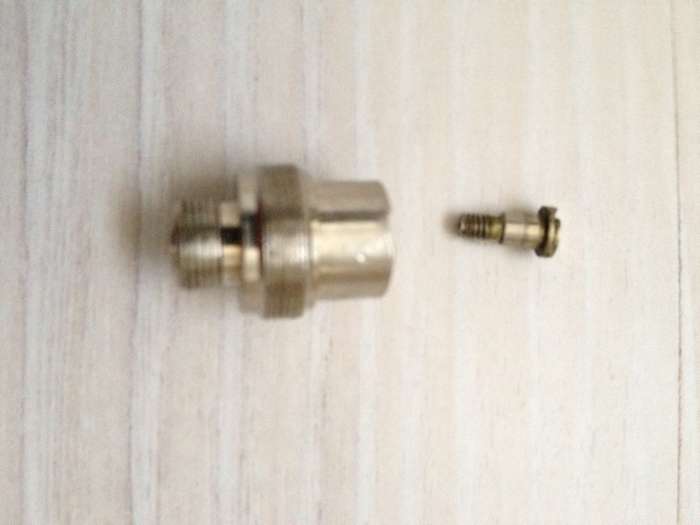

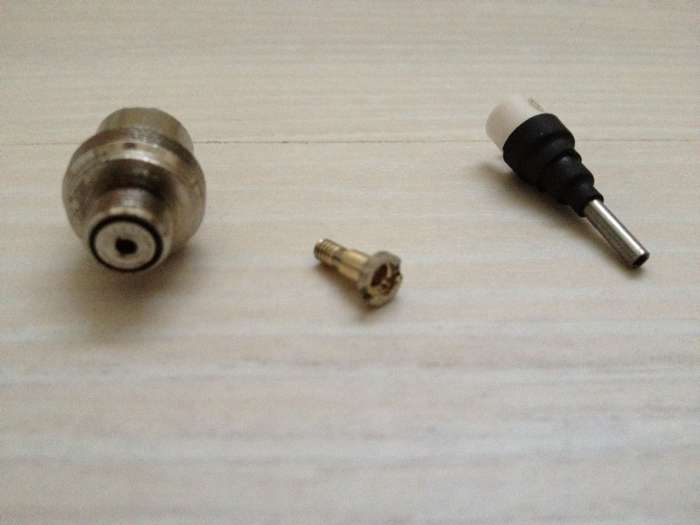

then an 510/ego adapter, and remove the positive pin (only the top)

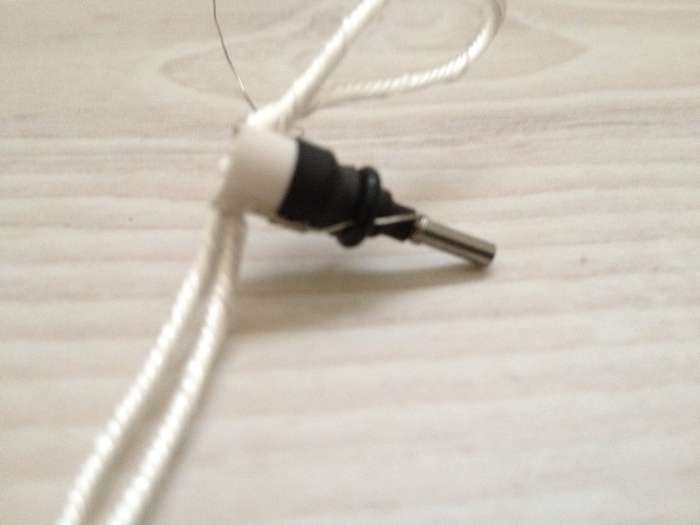

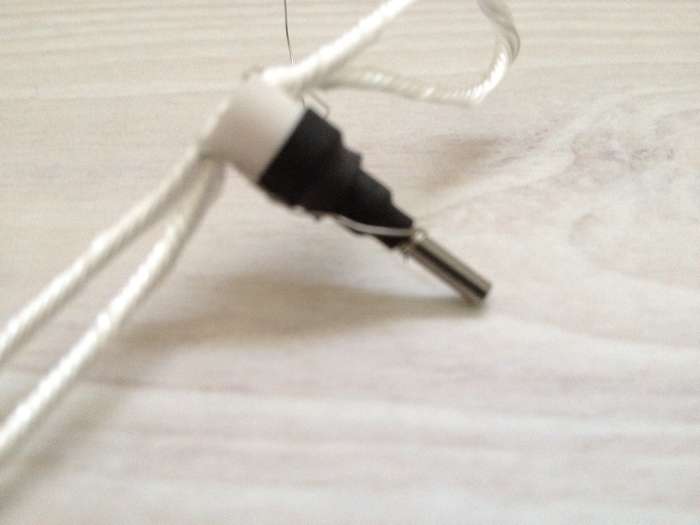

make the resistance as the iatty or ody

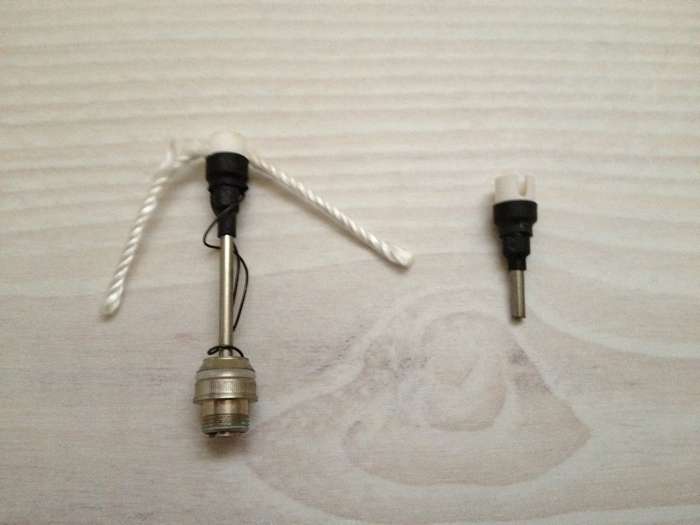

and then assemble it all together

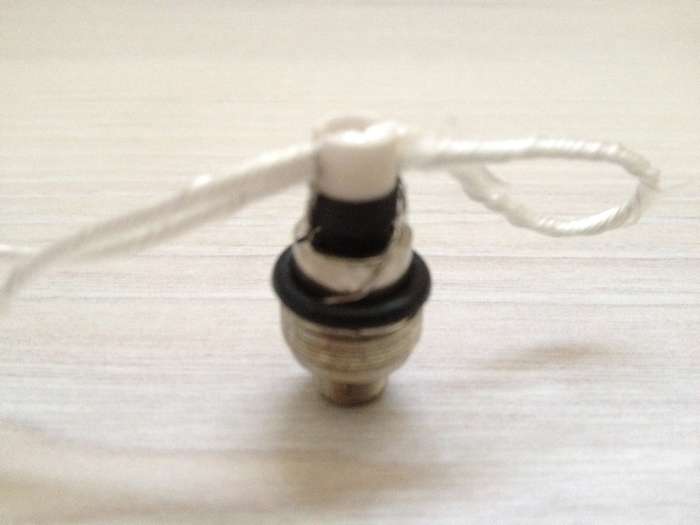

I used the o-ring to make it more stable and firm


in the end, you have to close the whole with a cone Ego
I do not have at home a cone Ego so I have not closed
but it works well


In video I used a Lavatube, as the first test because I was afraid that it did short-circuit


I put the images because they are clearer than my words



[Cry79]

EDIT for pin

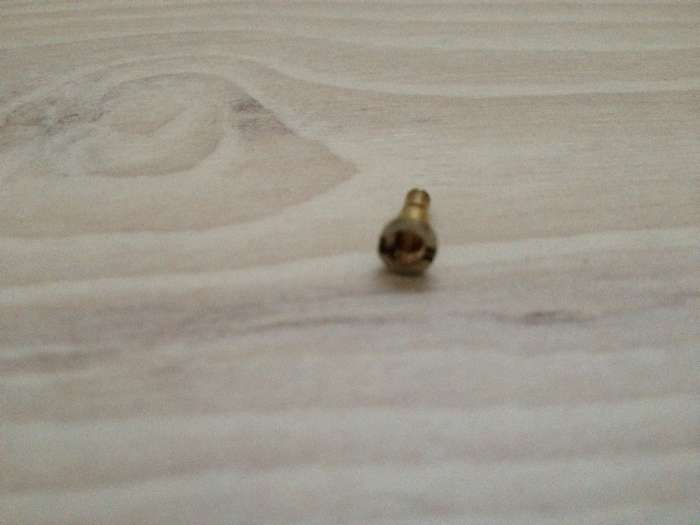

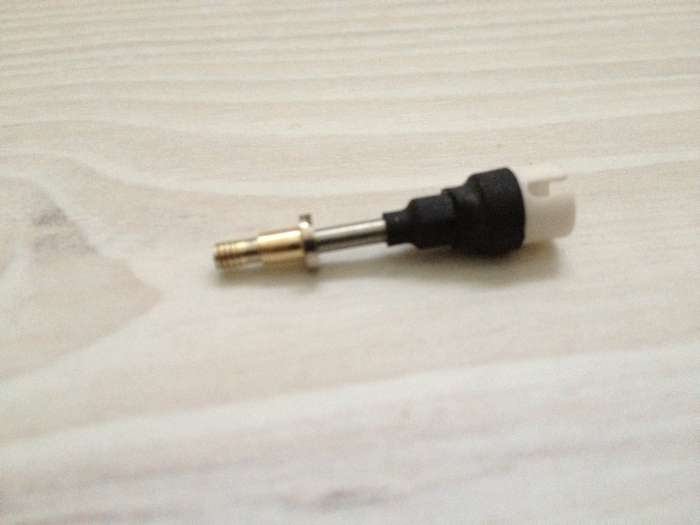

You can reuse the pin of the adapter 510/ego we had unscrewed
enlarging the hole, will fit into the cup
so now you can screw the cup



[redeyedancer]

Nice work Cry I bet you cant wait to vape it . I like the fact that you have a ceramic cup that should help keep the coil wet .



[MXBNW]

now I got to try this LOL I got all the stuff for this.

Thanks



[MXBNW]

Spoke to soon, My ego adapter dose not have the hole in it. Now to go on a hunt



[SammyT]

Well done cry! That is possibly the best system I have seen (production models included!) I can't wait to hear what you think of it when you get yourself an ego cone. I guess you could use one of the ego mega drip tips on the cone. Or fashion a DT adapter out of plastic/delrin.


-Sam



[MXBNW]

Cry: if you have one of the Phoenix Rebuildable Dripping Atomizer the top half will fit on he Ego adapter.

I just tried it out. I am still looking for a few of the adapter's with the holes in them.

What size O-Ring did you use.



[Cry79]

I do not know the exact size of oring
I'm sorry, I have a box where I throw all of them at random

Cry: if you have one of the Phoenix Rebuildable Dripping Atomizer the top half will fit on he Ego adapter.

fantastic
thanks

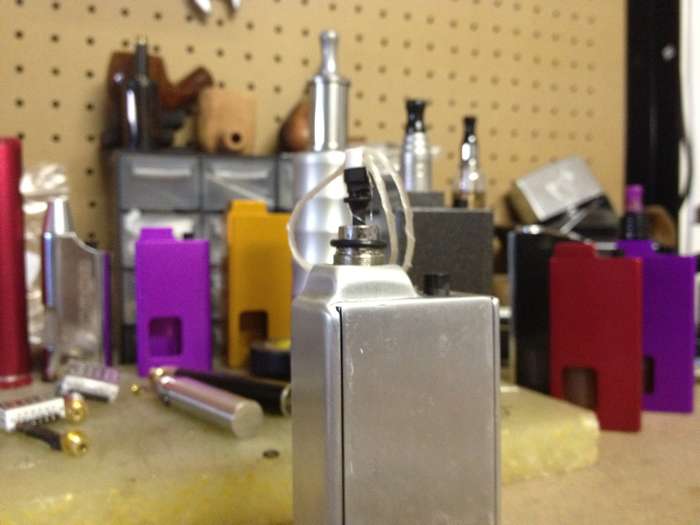

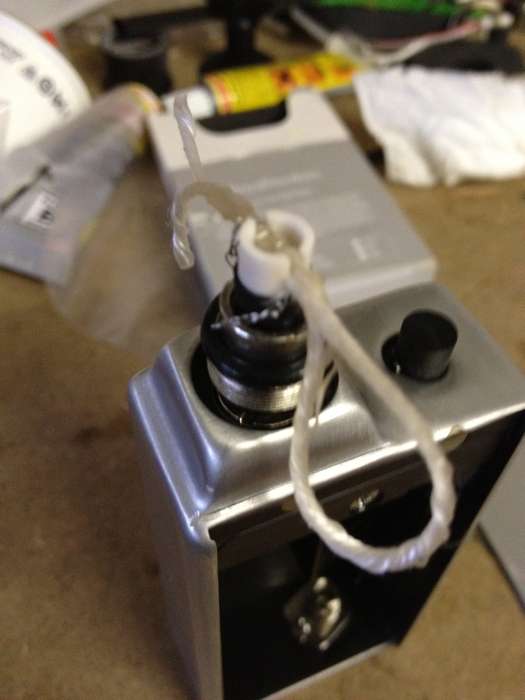

I asked my friend to do a test
the result:



[SammyT]

Fantastic Cry! Does it feed like a dream? I bet it works awesome. This is such an elegant yet simple mod. I would not be surprised to see copycats... myself included
So it looks like no solder is used, is that right? Solder has been my worst enemy in building atties.



[Cry79]

any soldering
Tonight I get the cone and then make a video (Then I bought the Phoenix, so I can use the tip 510)

while I wait I did a test with water



[Honkey Kong]

Thank you very much! Building one of these as soon as I order and receive one of these CE2 things.



[MXBNW]

Nice. Going to order new Ego adapters today and get to work on this early next week.

Keep up posted as to how it vapes.



[SammyT]

Will this ce2 work for this? http://stormysvaporcellar.com/index.php?main_page=product_info&cPath=29&products_id=539
TIA


-Sam



[TennDave]

Got my shipping notice for the ERA which is coming first part of next week- can't wait!!
That said, I'll get pretty decent at making the wick and wire work, I suppose, then I'll want to revisit this thread and figure this out.

My problem is there are a lot of acronyms and parts that I just don't understand, so I'll have to go back through and read all of this and figure out what I need to get, etc. For instance, ce2, and Ego Adapter- I have no idea what these might be.



[Cry79]

My problem is there are a lot of acronyms and parts that I just don't understand, so I'll have to go back through and read all of this and figure out what I need to get, etc. For instance, ce2, and Ego Adapter- I have no idea what these might be.

CE2/3 clearomizer with ceramic cup
adapter 510/ego

Yesterday I tried with cone ego works well
but it's really sad to see, and big

aspect the Phoneix so everything is more compact



[hildicat]

HOLY COW! Where have you been all my life? Now I'm off to scrounge some space bits and pieces!



[MickeyRat]

I'm thinking about trying this but, there are a couple things I need to clear up. I assume you're cutting the original tube. That I can deal with. What's unclear to me is how to get a seal where the tube goes into the ego adapter. I'm missing something.



[MXBNW]

Ordered a few Ego adapters, I got a bunch of old CE2's around here that will be going to good use.



[MXBNW]

Mickey, look at his first post's. He used O-Rings to make the seal. One on the pos and one on the net side.

This is going to be fun.

I'm thinking about trying this but, there are a couple things I need to clear up. I assume you're cutting the original tube. That I can deal with. What's unclear to me is how to get a seal where the tube goes into the ego adapter. I'm missing something.



[SammyT]

Will this ce2 work for this? http://stormysvaporcellar.com/index.php?main_page=product_info&cPath=29&products_id=539
TIA


-Sam

Any thoughts? I would like to pull the trigger on this


-Sam
