There's battery analyzer, the advantage of which is only to increase the accuracy of the little battery indicator for your particular battery, and case analyzer for the case thermals which should help in the accuracy of TC, which I think is more important. There is an atomizer analyzer, but it just gives you a more accurate resistance reading for a build, as well as the ability of locking resistance if you're desperate, as resistance locking is discouraged on DNA boards.

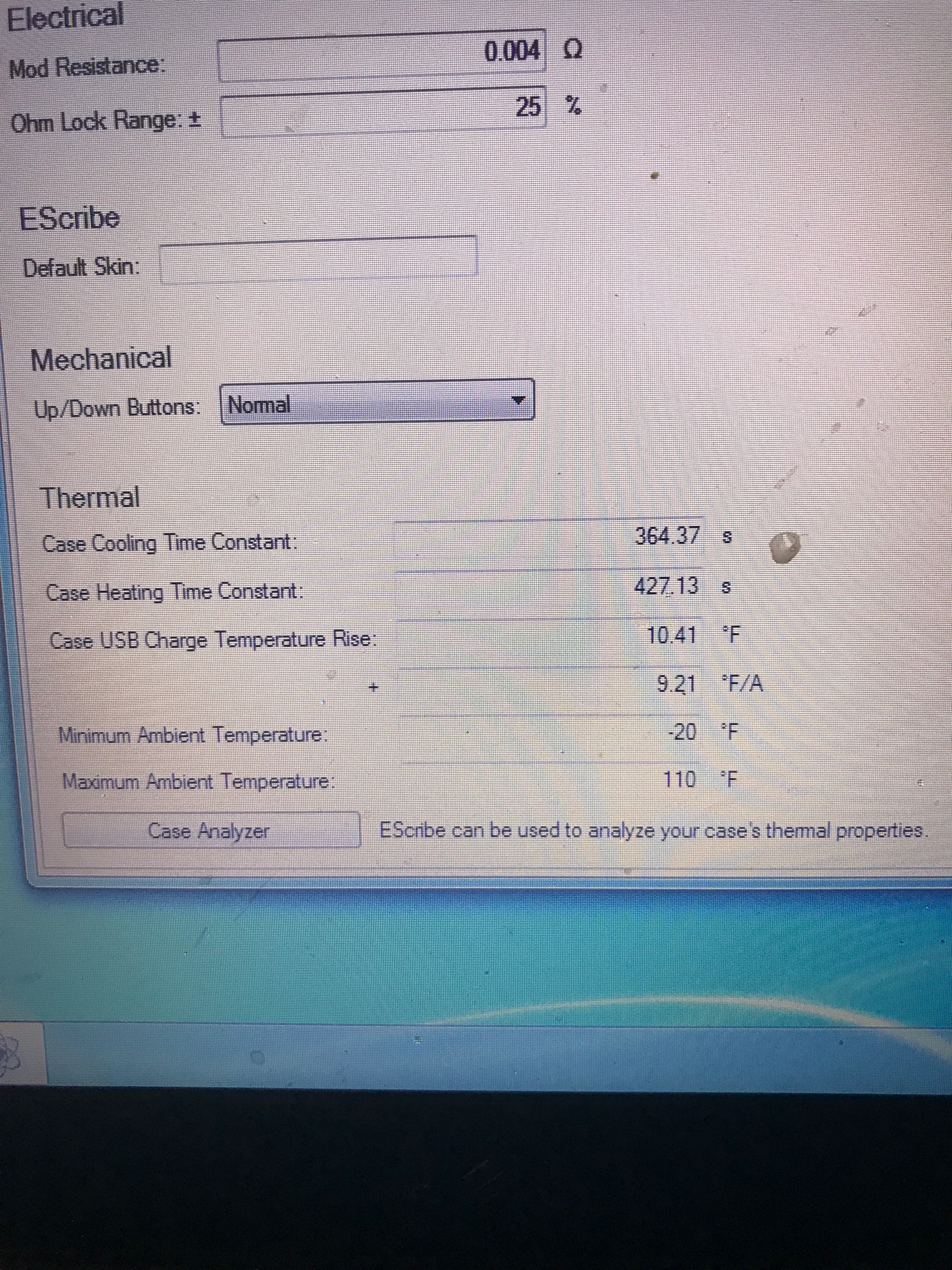

When I just ran my Case Analyzer it did 1a, .1a, .2a, .3a, .5a, and .7a iirc. My USB jacks are either 3.0 or 3.1 so I get 1 amp charging. My old PC maxed out at .5a charging via USB.
what I got on my test
Sent from my iPhone using Tapatalk
That looks like common case thermals. Looks like you're good to go. With this board behaving itself, I have a feeling it was a flaky board in the one you returned. With electronics, it happens.
You do realize a 0.1 ohm coil is right at the limit of the board. Is there a reason it has to be so low? In TC, a lower ohm build won't give you a better vape, just make it harder for the board to perform well.
A DNA board is typically rated down to 0.1 ohm for TC, and 0.2 ohm for wattage. Here are the specs on the board, and the output power curves at varying resistance. It can go lower but the power will fall off as shown in the graph.
Well all I got to do is put more wraps on the ends if there is room to bring it up some it was a premade what to see what the hype is all about
2 more wraps shod bring it up a bit
Sent from my iPhone using Tapatalk
2 more wraps shod bring it up a bit
Sent from my iPhone using Tapatalk
I seem to like twisted and parallel the best just trying some different builds before I learn how to make them
Sent from my iPhone using Tapatalk
Sent from my iPhone using Tapatalk
I never found twisted all that much of an improvement. I have used a parallel in a single coil build. If I have a larger chambered tank that will take dual coils, I usually use a Clapton or fused Clapton. My builds are all in SS, and generally no lower than 0.25 ohm. That and up work just fine in TC. The great part of TC is the resistance really doesn't make the vape (so long as it's within operating range) it's the temp chosen, along with something like preheat if it's a high metal mass build to get it to temp quickly.

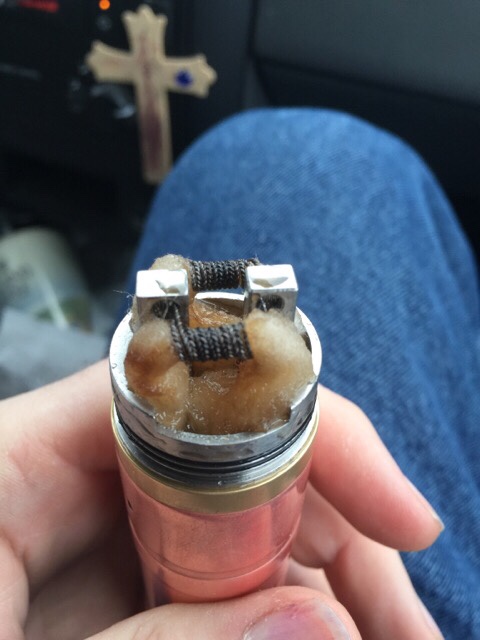

Ya I need to build bigger for this new rta 2.5mm seems small I need to run to the store and get some more drill bits I'm think 6 wraps x2 26ga ss on a 3.5
Sent from my iPhone using Tapatalk
Really? That's a good idea. Not sure why it never even dawned on me to look for those.
Yeah, I could use a bunch of them as i never really use the usb ports on any of my mods other than firmware or an occasional recharge if I have to.
