Sumratio

Senior Member
ECF Veteran
Verified Member
Mar 24, 2009
132
75
Pittsburgh
    Has anyone tried using RIT dye to color Scuplteo plastics? Just a thought but I have used it at work to color code plastic fittings and the dye penetrates pretty deep, I have never seen it wear off and it is vibrant. Might be worth trying on some of the scrap pieces like the connector ring. I will try it on my next build.


    gdeal

    Moved On
    ECF Veteran
    Aug 4, 2012
    2,324
    7,104
    ( -_-) Ω~
    • Deleted by Unforeseen
    • Reason: Unregistered Supplier

    gdeal

    Moved On
    ECF Veteran
    Aug 4, 2012
    2,324
    7,104
    ( -_-) Ω~
    • Deleted by Unforeseen
    • Reason: Unregistered Supplier

    gdeal

    Moved On
    ECF Veteran
    Aug 4, 2012
    2,324
    7,104
    ( -_-) Ω~
    • Deleted by Unforeseen
    • Reason: Unregistered Supplier

    ThreeDJ16

    Vaping Master
    ECF Veteran
    Mar 19, 2013
    3,035
    11,906
    USA
    • Deleted by Unforeseen
    • Reason: Unregistered Supplier

    ThreeDJ16

    Vaping Master
    ECF Veteran
    Mar 19, 2013
    3,035
    11,906
    USA
    • Deleted by Unforeseen
    • Reason: Unregistered Supplier

    KurrptSenate

    Vaping Master
    ECF Veteran
    Verified Member
    Oct 9, 2013
    3,091
    4,381
    PA
      So, the Beta Team never sleeps.....

      Kataphraktos came up with a great idea to self secure the top cap mini connectors. :)

      One of the more intensive steps in the assembly, is to get glue precisely around the mini-connectors in the the top cap internal with out making a mess. There is not a lot of room and this can be challenging. Kata came up with a simplified approach that can eliminate the glue. Basically we go to a compression fit and put a bar down the middle of the inside of the top cap that rests on the inside of the mini-connectors top surface. When the top cap is fully assembled, it would immobilize the mini-connectors. Well it worked! The only new technique is that you need to make sure your solders are a bit more precise in placement. You basically make sure that the solder points are on the top and/or outside of the mini-connector solder pins.

      So for the test fit you just put the internal into the top cap after placement of the mini-connector and made sure of two things. The first is that at the 510 hole you can see the internal is flush against the top cap and has no wobble and the second is that while holding the caps tight together, you cant push the mini connect in from the out side. You can shave the bar down slightly if your solders aren't quite in the right place. If you like glue, you can still use glue as well.

      Good news is that its already in the Updated v4.2 :) So if you recently got prints, you have the new feature.

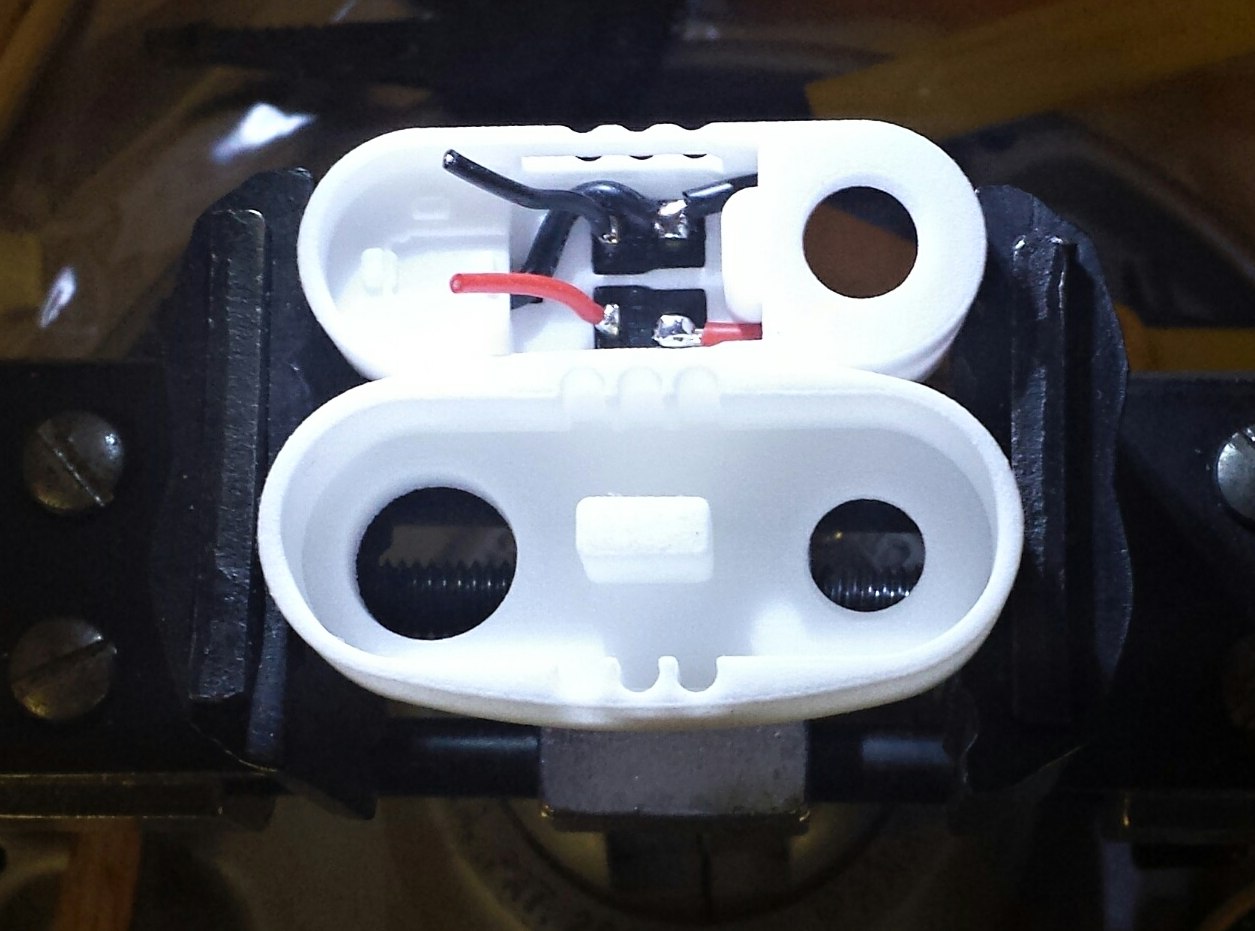

      Here is a picture from Drunk_J showing great solder placement and technique and the new securement bar in the top cap. (We are calling it the "D" Leg)



      The build doc has also been updated.

      https://www.dropbox.com/s/1t37eb2yi2k0o36/GDNA Build Doc.pdf?dl=0

      I ordered new internals over the weekend (sunday)

      they didn't print yet

      does this mean I'll have that as well? it wasn't the "shards" that was causing the issue. it was the dean connectors and glue


      gdeal

      Moved On
      ECF Veteran
      Aug 4, 2012
      2,324
      7,104
      ( -_-) Ω~
      • Deleted by Unforeseen
      • Reason: Unregistered Supplier

      gdeal

      Moved On
      ECF Veteran
      Aug 4, 2012
      2,324
      7,104
      ( -_-) Ω~
      • Deleted by Unforeseen
      • Reason: Unregistered Supplier

      RGLP4Lyfe

      Ultra Member
      ECF Veteran
      Verified Member
      Oct 29, 2014
      1,344
      3,734
      PA
        I have this new feature. I've got everything all wired up mostly. My board seems to be all correct and decent solder.. I'm so close to having it done. Only problem I'm having is getting solder to stick on the brass washer in the top cap!!! Its broke loose 3 times. I even tried soldering on a SS washer. No luck... it keeps breaking free. I'm so close and this frustrated me so much last night I just put it all away
        Any tips professionals?

        -Mark


        BigLungs

        Super Member
        ECF Veteran
        Verified Member
        Dec 29, 2012
        330
        497
        Champaign, Illinois
          I have this new feature. I've got everything all wired up mostly. My board seems to be all correct and decent solder.. I'm so close to having it done. Only problem I'm having is getting solder to stick on the brass washer in the top cap!!! Its broke loose 3 times. I even tried soldering on a SS washer. No luck... it keeps breaking free. I'm so close and this frustrated me so much last night I just put it all away
          Any tips professionals?

          -Mark

          Sounds like you need to hold the soldering iron on longer, not getting the brass washer hot enough. My :2c:


          drmarble

          Super Member
          ECF Veteran
          Verified Member
          Feb 8, 2014
          549
          1,226
          Oklahoma City, OK, USA
            The stainless steel washer will be harder to solder to. Solder doesn't like to stick to stainless steel. You could try using more flux on the washer. Maybe even sanding the edge of the washer clean first to get the solder to stick better. Finally, you do need to get that washer hot for the solder to flow and stick.


            Alexander Mundy

            Ribbon Twister
            ECF Veteran
            Verified Member
            Apr 1, 2013
            4,407
            25,956
            Springfield, MO
              I have this new feature. I've got everything all wired up mostly. My board seems to be all correct and decent solder.. I'm so close to having it done. Only problem I'm having is getting solder to stick on the brass washer in the top cap!!! Its broke loose 3 times. I even tried soldering on a SS washer. No luck... it keeps breaking free. I'm so close and this frustrated me so much last night I just put it all away
              Any tips professionals?

              -Mark

              Clean the brass with some sandpaper or a fine wire brush then tin it and tin the wire before trying to solder the two together. Also, make sure your iron tip is clean and tinned. Use something with low heat absorption like a wooden close pin to hold the brass washer and get it hot enough to melt the solder you tinned on it and while still holding the iron on it touch the pre tinned wire to the iron and washer. As soon as you see the solder from the wire flow into the solder on the washer remove the iron but hold the wire still against the washer. If you move it while the solder is solidifying it will make a "cold" solder joint that won't hold or conduct well.


              RGLP4Lyfe

              Ultra Member
              ECF Veteran
              Verified Member
              Oct 29, 2014
              1,344
              3,734
              PA
                Clean the brass with some sandpaper or a fine wire brush then tin it and tin the wire before trying to solder the two together. Also, make sure your iron tip is clean and tinned. Use something with low heat absorption like a wooden close pin to hold the brass washer and get it hot enough to melt the solder you tinned on it and while still holding the iron on it touch the pre tinned wire to the iron and washer. As soon as you see the solder from the wire flow into the solder on the washer remove the iron but hold the wire still against the washer. If you move it while the solder is solidifying it will make a "cold" solder joint that won't hold or conduct well.
                Thank you all for your input. I did file the brass washer to get a clean scratchy surface, and I did also tin both the wire and washer. Alex Mundy, one thing I can say is that the tip of my solder iron is NOT clean. I guess I should take some sandpaper to it! And I did hold it there for a while but when I moved it to adjust it to the vent screw it popped off. 4 times! I will clean my iron and try this again tomorrow after work.

                -Mark


                moresalt

                Super Member
                ECF Veteran
                Verified Member
                Mar 9, 2013
                865
                1,916
                Tucson,Az
                  Nice innovation on that top cap. I also like the idea of not having to glue that...too bad I already got both of my prints and the top cap is done on 1 of them. But then again there is a small trick to glueing the deans connectors. I push the deans connector up just a bit and then you can get some of that gel (on a toothpick) on 2 sides of the deans connector through the side window. That seems to be sufficient for my builds and there's not much mess.

                  BTW, Gdeal, did you ever hear anything more about those prints that had the raised strip?


                  gdeal

                  Moved On
                  ECF Veteran
                  Aug 4, 2012
                  2,324
                  7,104
                  ( -_-) Ω~
                  • Deleted by Unforeseen
                  • Reason: Unregistered Supplier

                  moresalt

                  Super Member
                  ECF Veteran
                  Verified Member
                  Mar 9, 2013
                  865
                  1,916
                  Tucson,Az
                    Nice trick on the glue!

                    No progress from Sculpteo. I sent multiple emails, tried to get a technician or engineer on the phone, they dont like to talk directly to their customers apparently. Eventually after just getting the standard, its within print tolerance, blah blah blah, I sorta gave up. Its just a shame that most of their prints are really good (excluding the recent dye jobs) and there is no second good alternative at this point.
                    No worries. Even with the body still half painted you can only see the strip with it turned so the light hits it just right. Sorry you ended up going through that hassle.

                    And Rossum, thanks.
