What do you suggest for the usb BillW50....Just skip the second ground connection, badinfluence357. If only one button works, then run a jumper from one ground to the other.
Sent from my SM-G950U1 using Tapatalk
- Status
Sent from my SM-G950U1 using Tapatalk
A clear screen gasket,and maybe a black boro gasket would make that look much better,but still very cool,i think i want one haha.Did you guys see this...
Sent from my SM-G950U1 using Tapatalk
Does your USB look like this one? This is what SXK uses in the DNA60 one.
SXK didn't use the pins listed items 11 through 15, here.
They soldered on varies points on the backside of the board instead. I see no reason to do it this way. If that USB board doesn't label what is what, I'll take one of my SXK apart and take of picture of it.
That's the one, it looks the same...Does your USB look like this one? This is what SXK uses in the DNA60 one.
View attachment 892235
SXK didn't use the pins listed items 11 through 15, here.
View attachment 892237
They soldered on varies points on the backside of the board instead. I see no reason to do it this way. If that USB board doesn't label what is what, I'll take one of my SXK apart and take of picture of it.
Sent from my SM-G950U1 using Tapatalk
Does your USB look like this one? This is what SXK uses in the DNA60 one.
View attachment 892235
SXK didn't use the pins listed items 11 through 15, here.
View attachment 892237
They soldered on varies points on the backside of the board instead. I see no reason to do it this way. If that USB board doesn't label what is what, I'll take one of my SXK apart and take of picture of it.
From the picture it looks like 3 of those pins, 12, 13, 14, are obstructed by some other connectors from the rectangular component next to the pins.
They do use those pins. The USB board, the three wires on top. White goes to 15, red goes to 14, and black goes to 13 on the DNA board. The thick black goes to 10 and the thick red goes to 9. 11 and 12 on the DNA board isn't used.
Last edited:
They are, that is the ribbon cable of the screen which can be released if necessary. The wires get soldered on the other side of the board anyway.

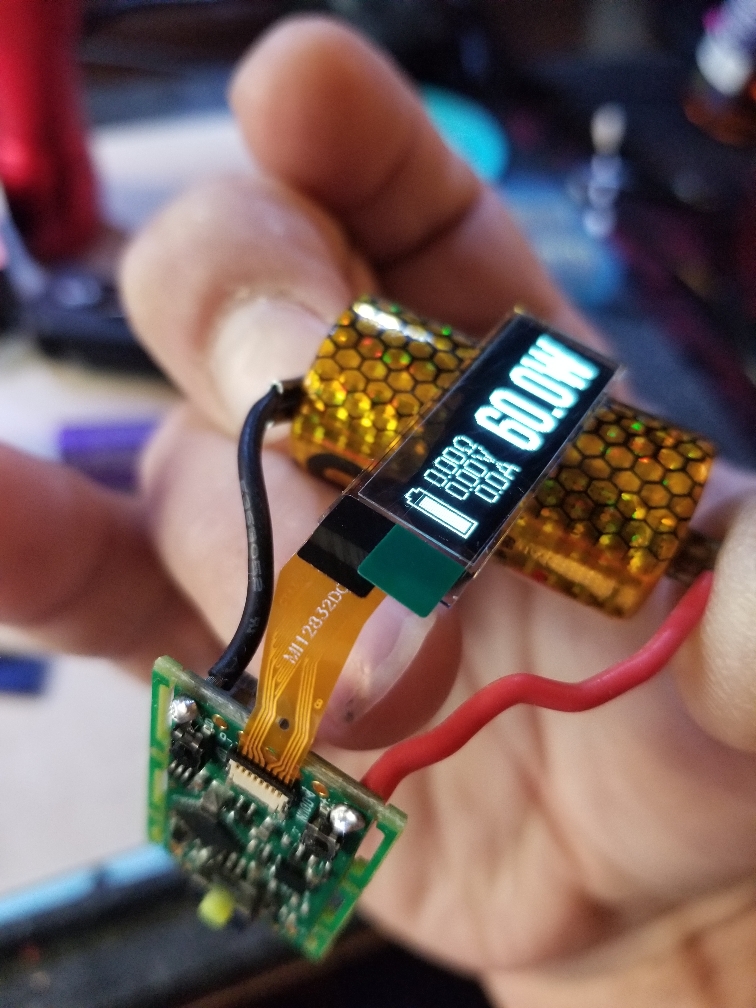

First attempt ever, at replacing a DNA board. Drum roll !!!
Sent from my SM-G950U1 using Tapatalk
Sent from my SM-G950U1 using Tapatalk
I notice they're $68 at FT with code MAP, they claim they'll ship in 16 days:
$79.80 SXK BB Styled 70W TC VW APV Mod Kit - 5ml / 1*18650 / 1-70W / 200-600'F(100-300'C) at FastTech - Free Shipping
also: 3F have 5% off at the moment if anyone is thinking about grabbing one
Ive used Australia Expedited Air shipping twice since covid started and both times it was about 10 days from order to delivery in Syd. It's about USD $3 I think. Fastest ever for me
Well got the positive and negatives wires installed, tried to work with the tiny wires on the fire button and solder pads came right off. It just got me so angry that I dont even want to continue the rebuild... waisted enough money..smh
Sent from my SM-G950U1 using Tapatalk
Sent from my SM-G950U1 using Tapatalk
Don't worry, I'm pretty sure Evolv will take good care of you. Open a ticket with them and explain what happened. I will be very surprised if they don't send you another board.Well got the positive and negatives wires installed, tried to work with the tiny wires on the fire button and solder pads came right off. It just got me so angry that I dont even want to continue the rebuild... waisted enough money..smh
Sent from my SM-G950U1 using Tapatalk
Help Desk - Submit a ticket
