True Mastery of the Genesis Atomizer

[brickfollett]

The Device:

Atmomixani Dome clone. $22 bucks on fasttech. It's a beautifully done clone, and worth EVERY PENNY. Machining is fantastic, threads are great and it's beautiful as a whole, albeit one of the largest genesis attys out there.

The Build:

Loosely wrapped #500 mesh. Hollow ish and solid ish at the same time. Dual wicks. 10 wraps of 26 gauge microcoils on each. Comes out at around .74 ohms last time I checked.

The How To:

Doing microcoils on mesh isn't easy. It took a lot more time on my Provari because it shorted and threw an error code a lot. Far easier on a mech, because I can just pulse through the shorts. And pulse I did. I used a half charged battery, just generally good common practice. I built it with one wick and coil and pulsed that one until it was satisfactory. Then I replicated the same thing in wick hole #2 and pulsed through the shorts on that one. Lots and lots of pulsing. Placed in on the ohm checker in between builds to make sure I was above .2 ohms. Lowest it ever went was .34 ohms. I believe most of us would generally consider this "safe" for pulsing using Sony VTC5 batteries. I can't stress the pulsing and testing enough. When all the shorts pulsed out, I would give it a longer fire, let the coils light up and then boom! another minor short. Keep pulsing and pulsing. literally can't stress this enough.

The Dome

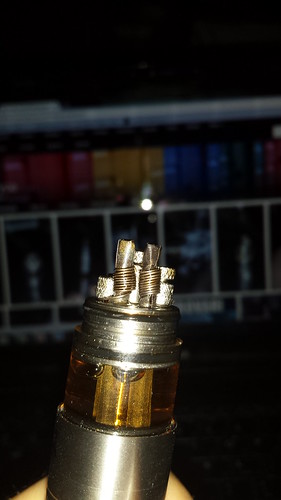

The Build





I feel like riptrippers right now, this is the craziest build I've EVER done, save maybe doing a mesh build on my russian 91%, which was tough too. The vape is hot, and blows madness clouds, not quite as dense as my Trident, but I've ALWAYS loved the flavor presented by mesh. When I get my Reo and Reomizer2, I'll probably mesh that as well, given the ceramic cup.

Enjoy guys, vape on and be SAFE with your build. This one is high risk, high reward, and as shorty as mesh/microcoils can be, you darn well better be using the best, safest battery you can get your hands on

Edit: By the way guys, I built this on my Infinite Stingray clone with Sony VTC5 batteries



[brickfollett]

bump! Whats your craziest build, genesis or otherwise?



[Maurice Pudlo]

Crazy builds for me would be 0.38 ohm single coil on an I-ATTY genesis, solid 500 mesh wick using 2 or 3 strand twisted 28ga kanthal if I recall correctly. It was sort of nano coilish, mainly just for poops and giggles.

I'd much rather go with any number of coils that result in 0.5 ohms total resistance.

Maurice



[BobC]

They still makin gennies? Thought they were done



[Rule62]

They still makin gennies? Thought they were done

Yup, there are still a lot of us mesh genny fans out there.



[horton]

They still makin gennies? Thought they were done

Nah.... gennies are still around. Down here in the ole slow moving South, it take us all a little longer to get hep to the new fangled contraptions out there. Heck, I'm still rocking a screen door mesh build I made 3 months ago. Give us some time......



[Maurice Pudlo]

LOL, come on now, drippers are just genesis atties with the wick holes plugged, and Kayfuns and the like are just big clearomizers.

I'll take a genesis any day over the other options, just because.

Maurice



[horton]

LOL, come on now, drippers are just genesis atties with the wick holes plugged, and Kayfuns and the like are just big clearomizers.
I'll take a genesis any day over the other options, just because.
Maurice

I was just joking around. I use both kinds.... mesh and Kayfun. Haven't fiddled with drippers much other than a few very basic ones for testing juice recipes.
Each kind of device has merits and I find certain juices taste better on different devices, so it's good to keep mesh and Kayfuns handy -- at least for me.



[Maurice Pudlo]

I was just joking around. I use both kinds.... mesh and Kayfun. Haven't fiddled with drippers much other than a few very basic ones for testing juice recipes.
Each kind of device has merits and I find certain juices taste better on different devices, so it's good to keep mesh and Kayfuns handy -- at least for me.

I'm just being silly, it's that whole words don't translate well communication thing.

Maurice



[brickfollett]

Yeah I've always loved my gennies for sure. Ever since I got my Reo with a Reomizer, I haven't touched it though. I've certainly thought about doing a hybrid mesh build on it, because the flavor from mesh just can't be beat



[Maurice Pudlo]

SS wire cable is pretty crazy for its liquid flow rate, if you do the genny tilt thing I do believe you could put a real serious hurting on a dripper. I need to get hold of some ekowool to sleeve my cable builds I'm not 100% happy with sleeving with mesh. Any idea which version is best for 3/32 cable?

Maurice



[PaulBHC]

If I plug the wick hole on my RSST, I have a dripper. If I use cotton wick, I can dual coil with the wick hole and fill hole. I don't take it off to fill it. I can rewick and recoil with the tank full. Why would I want something else?



[brickfollett]

If I plug the wick hole on my RSST, I have a dripper. If I use cotton wick, I can dual coil with the wick hole and fill hole. I don't take it off to fill it. I can rewick and recoil with the tank full. Why would I want something else?

Check out RipTrippers auto dripper build on his genesis atty. Quite an idea, never done it though. The idea certainly is sound



[Maurice Pudlo]

If the dome came with more air inlet options I don't see why you couldn't quad coil it, , that would wake you up in the morning.

Maurice



[Tbev]

My favorite genny setup is a pulse genny twisted 28ga @ 0.45 0hm running a single cotton wick and a reducer. Flavor off the charts, huge pulls, not a dry hit ever and best of all no fkn mesh to fiddlefuk around with.



[brickfollett]

The pulse was the other one I was looking in to. The only crappy thing about the Dome CLONE is that the "delrin" inserts for the wick holes get super stuck on the mesh wicks, leading me to believe that it probably isn't delrin, or a total design flaw. I imagine it's alot better in the authentic, but that thing is 220 bucks.



[Tbev]

If also has A HUGE cap which means big chamber volume leading to reduce in flavor, that's the key to the pulse, the reducer!

Sent from my Transformer TF101 using Tapatalk



[brickfollett]

If also has A HUGE cap which means big chamber volume leading to reduce in flavor, that's the key to the pulse, the reducer!

Sent from my Transformer TF101 using Tapatalk

With a dual coil, that sort of good out the window. I did a nice reducer in my rsst. Made it real loud, but was a nice vape

Sent from my SCH-I545 using Tapatalk



[Tbev]

Yeah I'm all about flavor and all about the smallest volume under the cap as possible, I run a custom igo on a bottom feeder I made and I used a Nimbus cap, it fits but it's a lot taller thus more volume, and the flavor was no where near as good, then I made my own cap with even less space inside and it turned the flavor up quite a bit more.
I also prefer the pulse with one coil and a reducer, it's like night and day.



[Kemosabe]

i hear you can make a simple reducer out of a cotton ball. just form it into the shape you need and place it in the dead space of your top cap. i have yet to do this because i do indeed have a pulse g clone, but im thinking of resurrecting my AGA-T+ and reducing the top cap with cotton.
