New ATO : Like genesis But no heat wire

[Willriker]

Very much so. I can't believe this thread hasn't pulled the rug out from under raidy yet. Although, both are fantastic and game changing as for as pv's go.

Extravagant work sir.

I think it is because you need a lot of amps to get this working. I think he said 10 amps. I dont know if regular batteries can do that. But this is interesting. I cant wait to get home. The pictures are filtered at my work pc, so i cannot really understand what is going on yet..



[pailpoe]

Hello everybody,

I use a buck converter (with no capacitor) drived by a microcontroller in PWM.

Power is constant, curent not



[pailpoe]

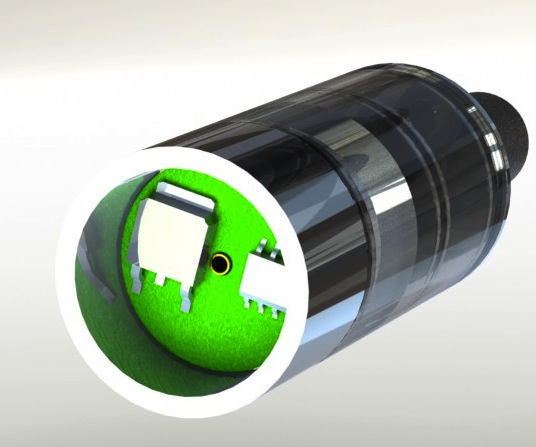

The final mod :



[5cardstud]

The final mod :

That is SWeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeeT. Now produce it and we'll buy it. If it's not too expensive.



[pailpoe]

No, about 100€ for all. ATO and electronic board.
The power regulation board cost maximum 10€ with a Microchip 12F1822 for power regulation.



[Gummy Bear]

Does the side walls of the upper air chamber get filled with condensation?
Or does it remain dry?



[pailpoe]

No, I thinks the upper air chamber get filled with condensation after some times.



[Gummy Bear]

Good, with the Genisis it would have droplets running down the side in 10 or 12 hits. I have posted pics of this and had several others PM me about theirs also doing that.



[5cardstud]

So that's about $134.35 American right? When will the unit in the picture be for sale?







/



[pailpoe]

I am not a seller. Just an amateur.
We will make a bulk order then to carry out this mod.
I think towards the end of January if all goes well.

You can follow my development here on the french forum:
Cigarette Electronique • Mod 100% perso : A suivre... : E-Bricolage et Prototypes • FORUM-ECIGARETTE

THE NAME OF THIS ATO IS : ULRA ( Ultra Low Resistance Atomizer )



[pailpoe]

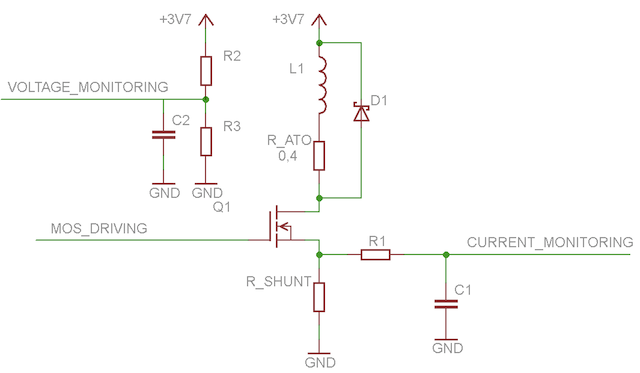

For regulation, We use a buck converter driven by a micro controler for adjust power and protect the system:

and some other stuffs



[Lee1111]

and some other stuffs

This part made me smile. A much much needed smile after the way today has went for me



[pailpoe]

YES, "and some other stuffs".

- Undervoltage voltage protection
- Over power protection
- Auto switch off for protection
- Power adjust (constant power)
- No contact switch
- Led for illuminate the eliquid
- ...



[eyebrook]

Hi folks, I am a nooby but have followed these threads avidly, has the bulk order taken place,? it would be nice to know.
Full respect to Palipo for moving the atty mod forward



[Turbo]

Hi folks, I am a nooby but have followed these threads avidly, has the bulk order taken place,? it would be nice to know.
Full respect to Palipo for moving the atty mod forward

The first 50 were done overseas, mostly in France. There's second list forming overseas w/ a couple US folks, but that may or may not happen, at least right away.

In short, no US co-op but one overseas and another forming.



[eyebrook]

Hi Turbo
Thanks for the update, i will check the thread now and again



[ooSTURMoo]

Very interesting concept....
